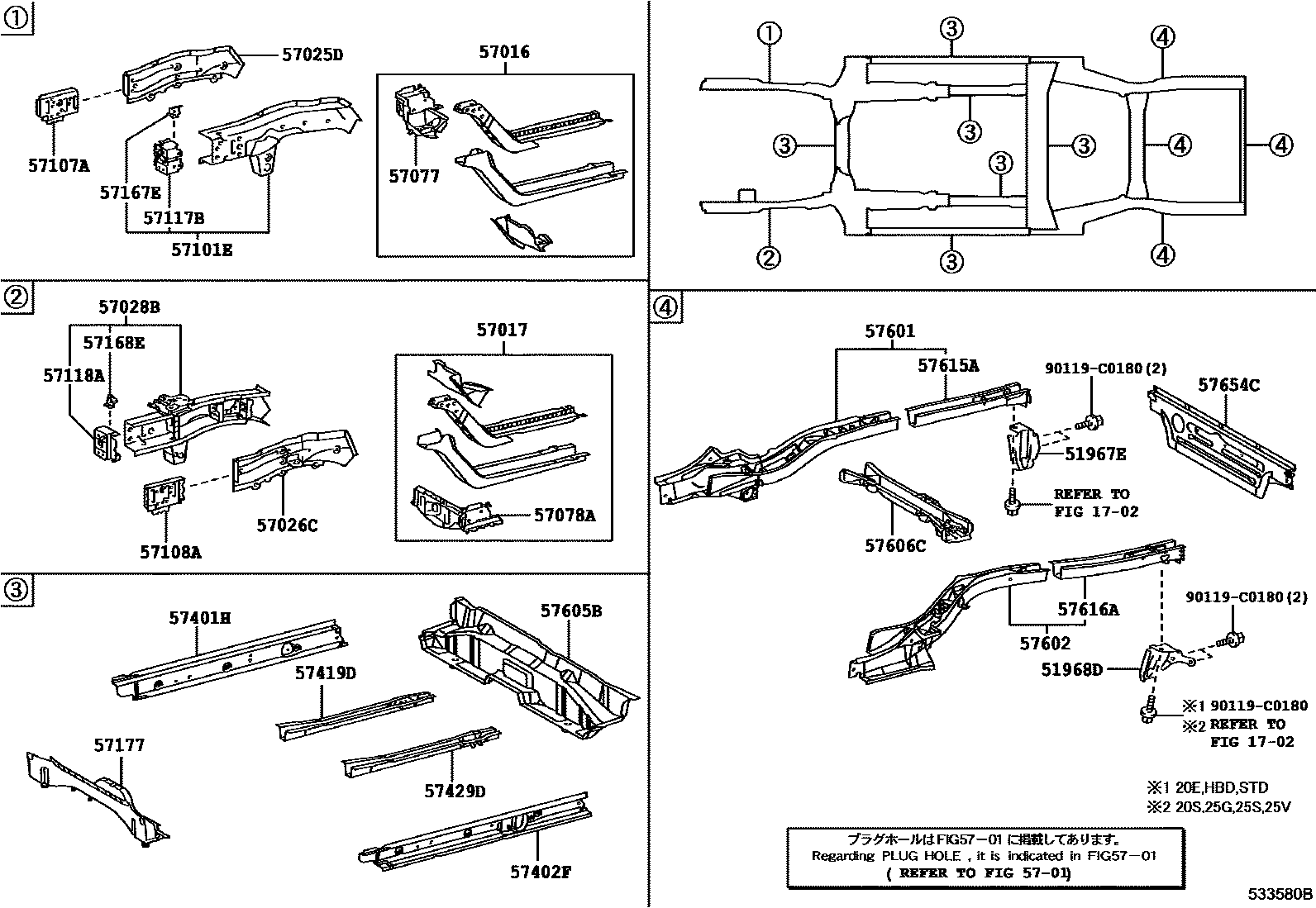

FLOOR SIDE MEMBER

1702

51967EHOOK, TRANSPORT, REAR RH

main51967-06050iACV51,ASV50,AVV50201112-201501

51968DHOOK, TRANSPORT, REAR LH

main51968-06070iACV51,ASV50,AVV50201112-201501

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-06110iACV51,ASV50,AVV50201112-201501

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-06100iACV51,ASV50,AVV50201112-201501

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-06080iACV51,ASV50,AVV50201112-201501

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-06080iACV51,ASV50,AVV50201112-201501

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-06121iACV51,ASV50,AVV50201112-201501

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-06080iACV51,ASV50,AVV50201112-201501

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-06080iACV51,ASV50,AVV50201112-201501

57101EMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-06051iACV51,ASV50,AVV50201112-201501

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-06041iACV51,ASV50,AVV50201112-201711

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-06041iACV51,ASV50,AVV50201112-201711

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-06080iACV51,ASV50,AVV50201112-201501

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-06080iACV51,ASV50,AVV50201112-201501

57167EGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-06040iACV51,ASV50,AVV50201112-201501

57168EGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-06030iACV51,ASV50,AVV50201112-201501

57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL

main57103-06110iACV51,ASV50,AVV50201112-201305

sub57103-06111

main57103-06111iACV51,ASV50,AVV50201306-201711

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-06231iACV51,ASV50,AVV50201112-201711

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-06221iASV5#,AVV50201112-201711

57419DREINFORCEMENT, FRONT FLOOR UNDER, REAR RH

main57419-33050iACV51,ASV50,AVV50201112-201501

57429DREINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57429-33020iACV51,ASV50,AVV50201112-201501

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-06341iACV51,ASV50201112-201501

main57601-06390iAVV50201205-201501

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-06190iACV51,ASV50,AVV50201112-201501

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-06170iACV51,ASV50,AVV50201112-201501

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-06140iACV51,ASV50,AVV50201112-201501

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-06926iACV51,ASV50201112-201501

main57615-06927iAVV50201205-201501

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-06917iACV51,ASV50,AVV50201112-201501

57654CMEMBER, REAR FLOOR CROSS, NO.3

main57654-06060iACV51,ASV50,AVV50201112-201501

90119C0180

main90119-C0180

31 parts on this diagram · 1 diagram in section
