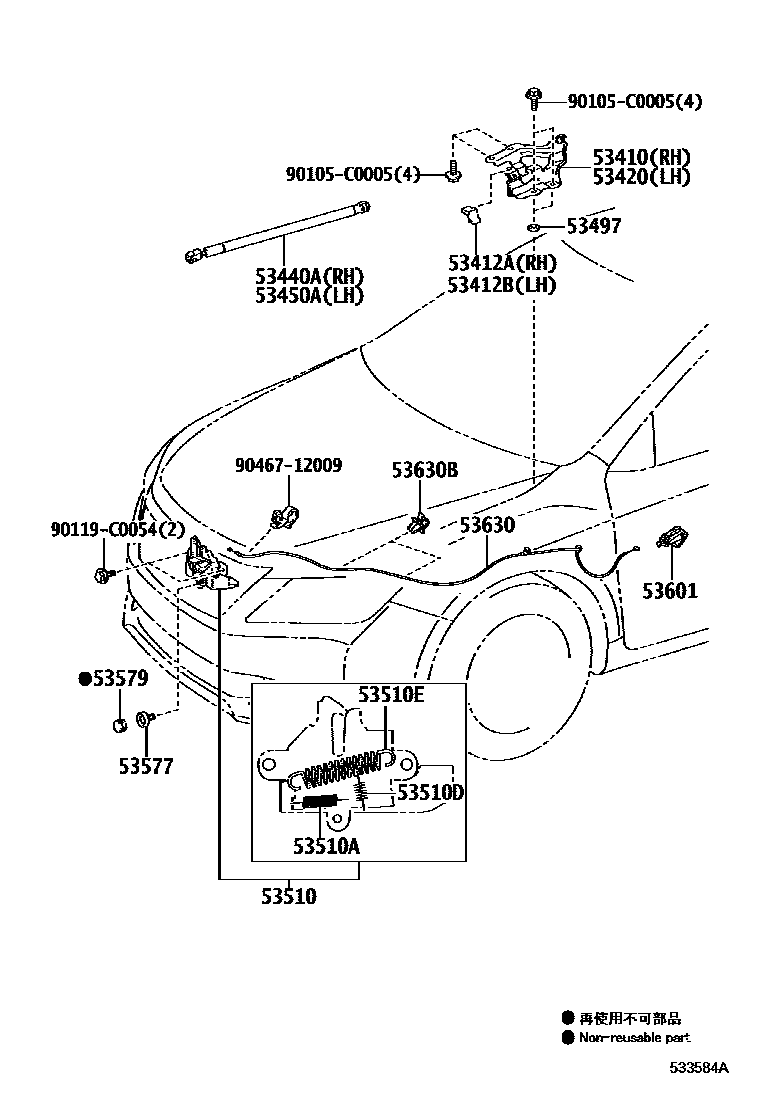

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-06230iACV51,ASV50,AVV50201112-201501

53412ACUSHION, HOOD HINGE SEAT RH

main53412-33090iACV51,ASV50,AVV50201112-201501

53412BCUSHION, HOOD HINGE SEAT LH

main53412-33100iACV51,ASV50,AVV50201112-201501

53420HINGE ASSY, HOOD, LH

main53420-06230iACV51,ASV50,AVV50201112-201501

53440ASUPPORT ASSY, HOOD, RH

main53440-06120iASV5#,AVV50201112-201501

53450ASUPPORT ASSY, HOOD, LH

main53450-06110iASV5#,AVV50201112-201501

53497PAD, HOOD HINGE, NO.1

main53497-0D100iASV5#,AVV50201112-201501

T=1.0

main53497-0E050iACV51,ASV50,AVV50201112-201501

T=2.0

53510LOCK ASSY, HOOD

main53510-06230iACV51,ASV50,AVV50201112-201501

sub53510-06231

main53510-06231iASV5#,AVV50201501

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iASV5#,AVV50201112-201501

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iASV5#,AVV50201112-201501

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iACV51,ASV50,AVV50201112-201501

WD=1.8,CW=13

53577BOLT, HOOD LOCK

main53577-33010iACV51,ASV50,AVV50201112-201501

53579CAP, HOOD LOCK NUT

main53579-50010iACV51,ASV50,AVV50201112-201501

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-A3iACV51,ASV50,AVV50201112-201501

SHELL,TRIM0#

sub53601-52010

main53601-52010-A8iASV5#,AVV50201501-201711

FLAXEN,TRIM0#

sub53601-52010

main53601-52010-C0iACV51,ASV50,AVV50201309-201612

BLACK,TRIM2#

sub53601-52010

main53601-52010-C1iASV5#,AVV50201612-201711

BLACK,TRIM2#

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-06180iACV51,ASV50,AVV50201112-201501

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iACV51,ASV50,AVV50201112-201505

main90469-C0008iASV5#,AVV50201506

90105C0005

main90105-C0005

90119C0054

main90119-C0054

9046712009

main90467-12009

19 parts on this diagram · 1 diagram in section
