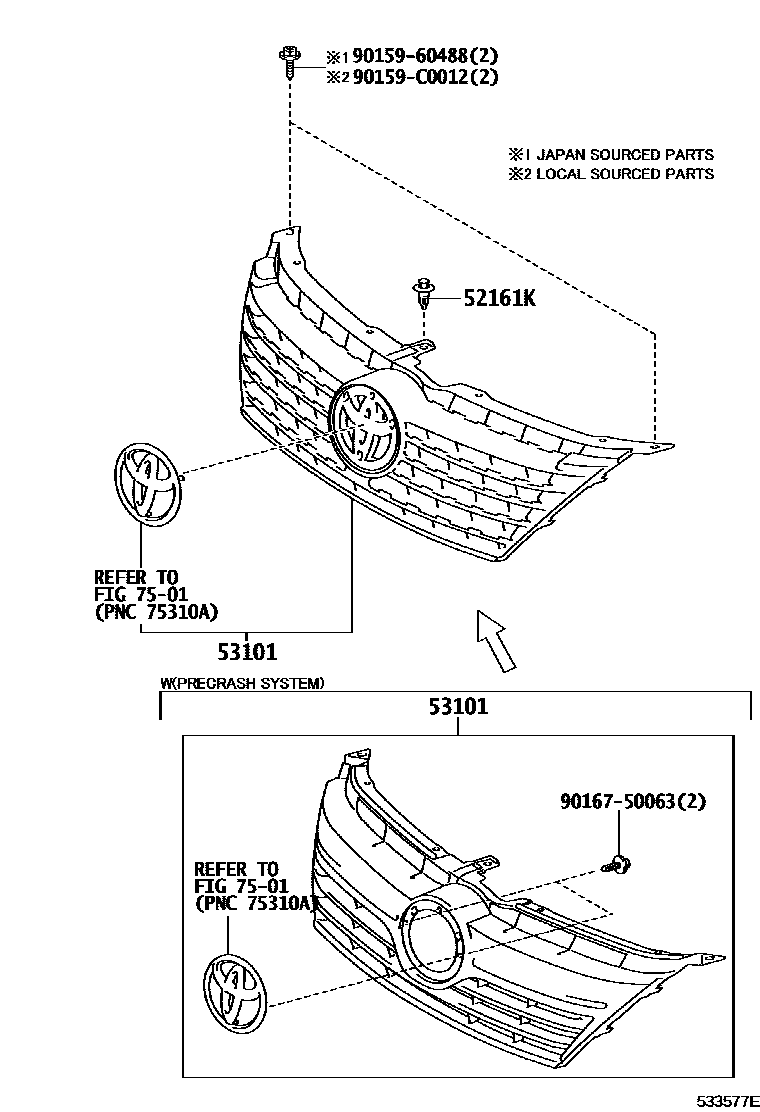

RADIATOR GRILLE

0001 1 0002 1

52161KPIECE, FRONT BUMPER

main52161-02040iACV51,ASV50,AVV50201302-201501

main52161-16010iACV51,ASV50,AVV50201112-201301

sub52161-0K040

53101GRILLE SUB-ASSY, RADIATOR

main53101-06450iACV51,ASV50..25G,25V,STD201112-201501

PLATED

main53101-06460iACV51,ASV50..20S,25S201112-201501

PLATED

main53101-06470iAVV50201205-201307

PLATED

sub53101-06471

main53101-06471iAVV50201308-201501

PLATED

main53101-06720iASV5#..20E,25G201501-201608

PLATED

main53101-06730iASV5#..20S,25S201501-201608

PLATED

main53101-06750iAVV50201501-201608

PLATED

main53101-06760iASV50..25V201501-201608

PLATED

main53101-06C90iASV5#..20E,25G201608-201711

PLATED

main53101-06D00iASV5#..20S,25S201608-201711

PLATED

main53101-06D20iASV50..25V201608-201711

PLATED

main53101-06D30iAVV50201608-201711

PLATED

7501

9015960488

main90159-60488

90159C0012

main90159-C0012

9016750063

main90167-50063

6 parts on this diagram · 2 diagrams in section
