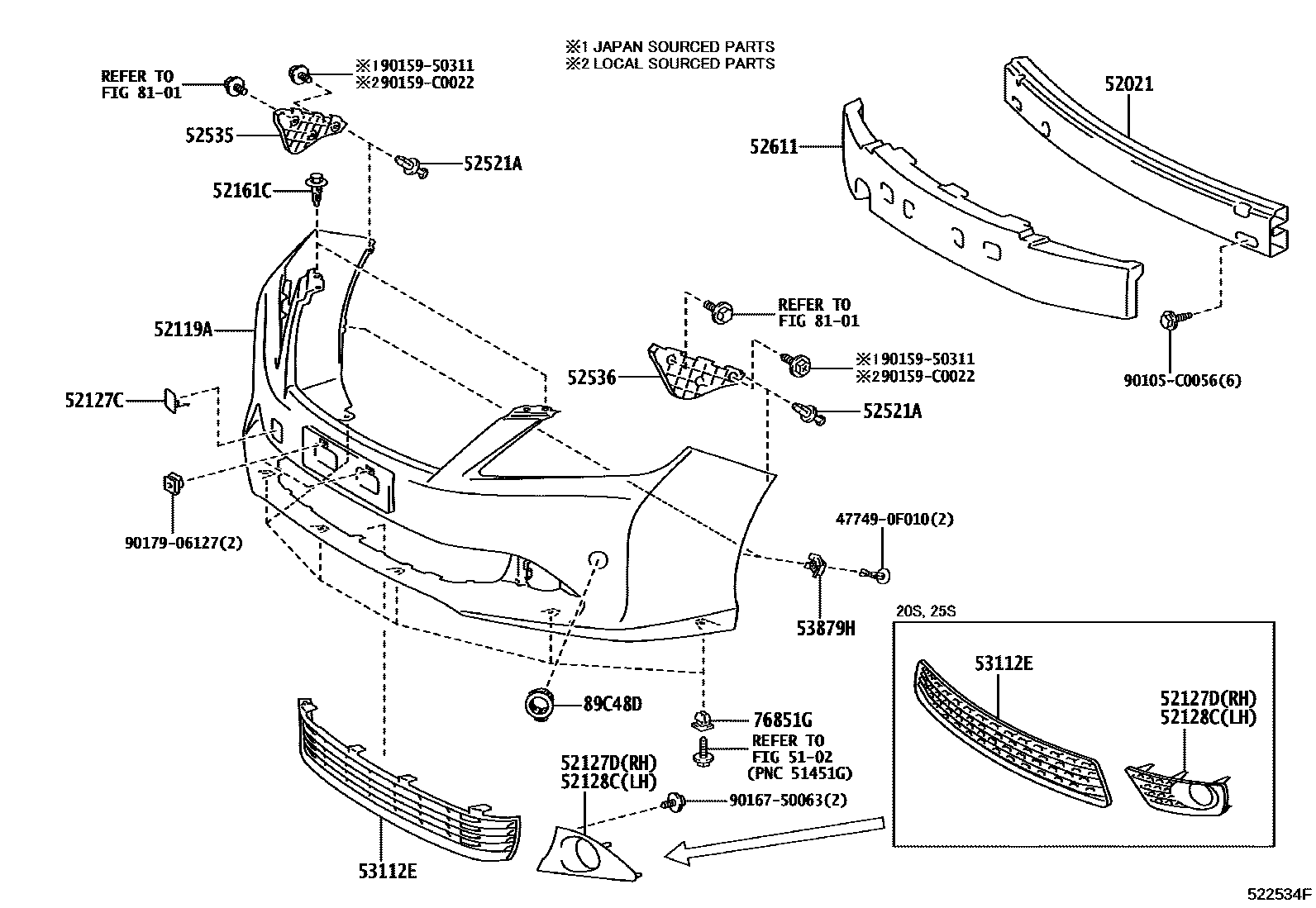

FRONT BUMPER & BUMPER STAY
5102
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.,CHINA G GRADE&VALUE PACKAGE
PAINT REQ.,VALUE PACKAGE
PAINT REQ.
PAINT REQ.,CHINA G GRADE
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.,G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
52127CCOVER, FRONT BUMPER HOLE
52521ACLIP(FOR FRONT BUMPER RETAINER)
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
53879HRETAINER, FRONT FENDER LINER
76851GGROMMET, SCREW, NO.1
8101
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
WHITE PEARL CS.,070
G GRADE,WHITE PEARL CS.,070
E GRADE,WHITE PEARL CS.,070
G GRADE,SILVER ME.,1D4
E GRADE,SILVER ME.,1D4
SILVER ME.,1D4
GRAY ME.,1G3
G GRADE,GRAY M.M.,1H1
GRAY M.M.,1H1
E GRADE,GRAY M.M.,1H1
E GRADE,ATTITUDE BLACK MC.,218
G GRADE,ATTITUDE BLACK MC.,218
ATTITUDE BLACK MC.,218
BLACK MC.,209
G GRADE,BLACK MC.,209
E GRADE,BLACK MC.,209
RED M.M.,3R3
CHINA G GRADE,RED M.M.,3R3
RED MC.,3T3
E GRADE,RED MC.,3T3
G GRADE,RED MC.,3T3
BEIGE ME.,4T8
DK. BROWN M.M.,4U3
G GRADE,DK. BROWN M.M.,4U3
E GRADE,DK. BROWN M.M.,4U3
LIGHT BLUE MICA METALLIC,8U8
CHINA G GRADE,LIGHT BLUE MICA METALLIC,8U8
TRUE BLUE M.M.,8W1
GRAYISH BLUE M.M.,8V5
G GRADE,GRAYISH BLUE M.M.,8V5
E GRADE,GRAYISH BLUE M.M.,8V5
477490F010CLIP, PIN HOLD
main47749-0F010
90105C0056
main90105-C0056
9015950311
main90159-50311
90159C0022
main90159-C0022
9016750063
main90167-50063
9017906127
main90179-06127
22 parts on this diagram · 3 diagrams in section
