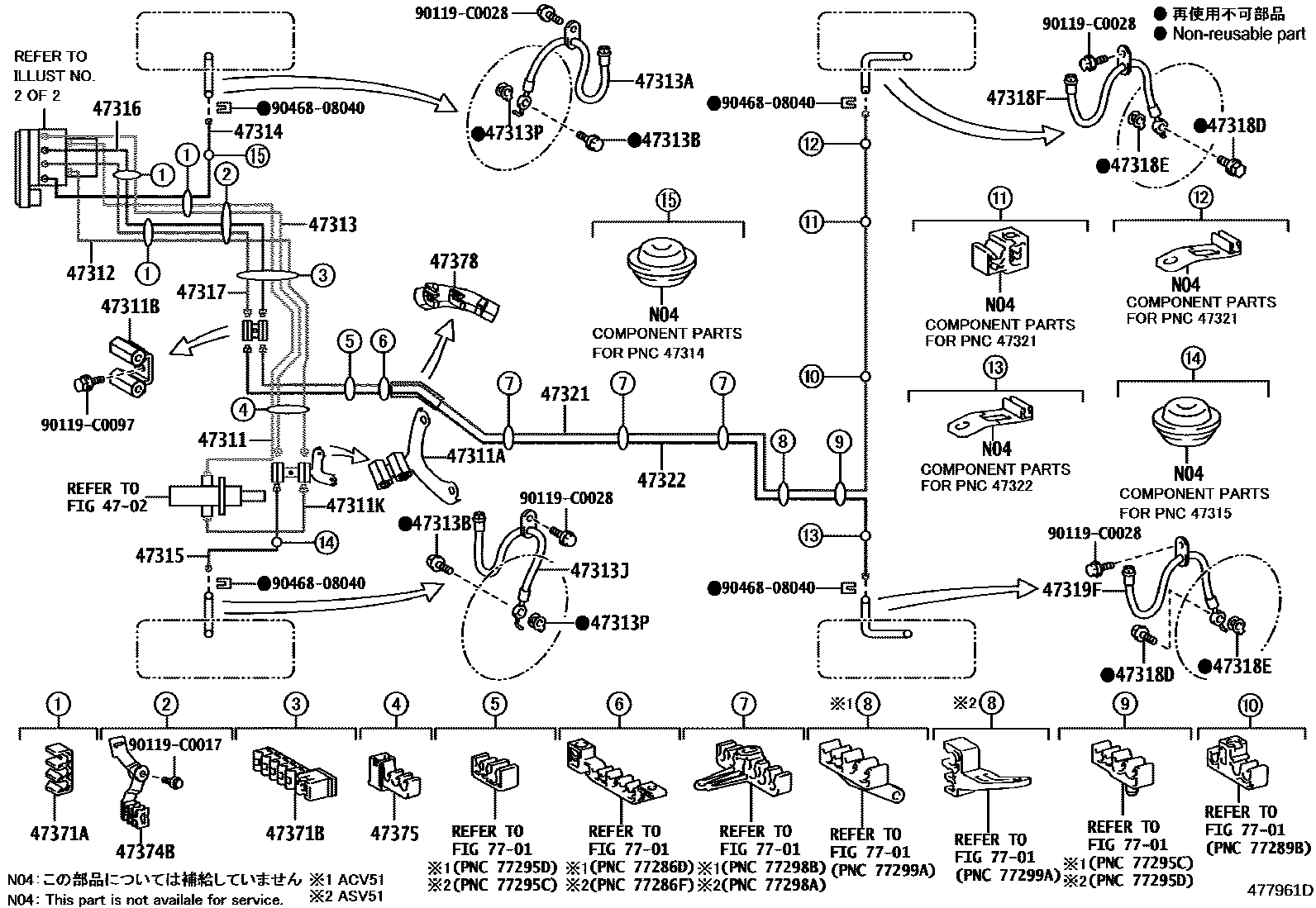

BRAKE TUBE & CLAMP

0001 1W(ABS) 0002 1W(VSC) 0003 1 0004 1W(ABS) 0005 1W(VSC) 0006 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-06460iASV5#201112-201501

main47311-06470iACV51201112-201501

main47311-06481iAVV50201205-201501

47311AWAY(FOR FRONT BRAKE TUBE)

main47392-06010iASV5#201608

main90412-10286iACV51201112-201501

main90412-12065iASV50201112-201608

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-C0001iACV51,ASV50,AVV50201112-201501

47311KTUBE, BRAKE MASTER CYLINDER TO WAY

main47311-06490iASV5#201112-201711

main47311-06500iACV51201112-201501

47312TUBE, FRONT BRAKE, NO.2

main47312-06370iASV50201112-201501

main47312-06380iACV51201112-201501

47313TUBE, FRONT BRAKE, NO.3

main47313-06340iASV50201112-201501

main47313-06350iACV51201112-201501

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-C2047iACV51,ASV50,AVV50201112-201501

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iACV51,ASV50,AVV50201112-201501

(J)

main90401-C0001iACV51,ASV50,AVV50201112-201501

(L)

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-C2048iACV51,ASV50,AVV50201112-201501

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021iASV5#,AVV50201112-201501

47314TUBE, FRONT BRAKE, NO.4

main47314-06330iACV51,ASV50201112-201501

main47314-06340iAVV50201205-201501

47315TUBE, FRONT BRAKE, NO.5

main47315-06340iACV51,ASV50201112-201501

main47315-06341iASV5#201501

main47315-06350iAVV50201205-201501

47316TUBE, FRONT BRAKE, NO.6

main47316-06410iASV50201112-201501

main47316-06420iACV51201112-201501

main47316-06430iAVV50201205-201501

47317TUBE, FRONT BRAKE, NO.7

main47317-06390iASV5#201112-201501

main47317-06400iACV51201112-201501

main47317-06410iAVV50201205-201501

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iACV51,ASV50,AVV50201112-201501

(J)

main90401-C0001iACV51,ASV50,AVV50201112-201501

(L)

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021iACV51,ASV50,AVV50201112-201501

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-C2045iACV51,ASV50,AVV50201112-201501

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-C2046iACV51,ASV50,AVV50201112-201501

47321TUBE, REAR BRAKE, NO.1

main47321-06170iACV51,ASV50,AVV50201112-201711

main47321-06230iASV51201501-201711

47322TUBE, REAR BRAKE, NO.2

main47322-06170iASV50,AVV50201112-201711

main47322-06230iASV51201501-201711

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00857iASV5#201112-201501

main90464-00880iAVV50201205-201501

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D06iACV51201112-201501

main90949-01D51iASV50201112-201501

47374BCLAMP, BRAKE TUBE, NO.4

main47371-33280iASV50201112-201501

main47371-33290iACV51201112-201501

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D08iACV51201112-201501

main90949-01D50iASV5#201112-201501

47378PROTECTOR, BRAKE TUBE

main77267-33030iACV51,ASV50201112-201711

main77267-33040iAVV50201205-201711

7701

90119C0017

main90119-C0017

90119C0028

main90119-C0028

90119C0097

main90119-C0097

9046808040

main90468-08040

31 parts on this diagram · 6 diagrams in section
