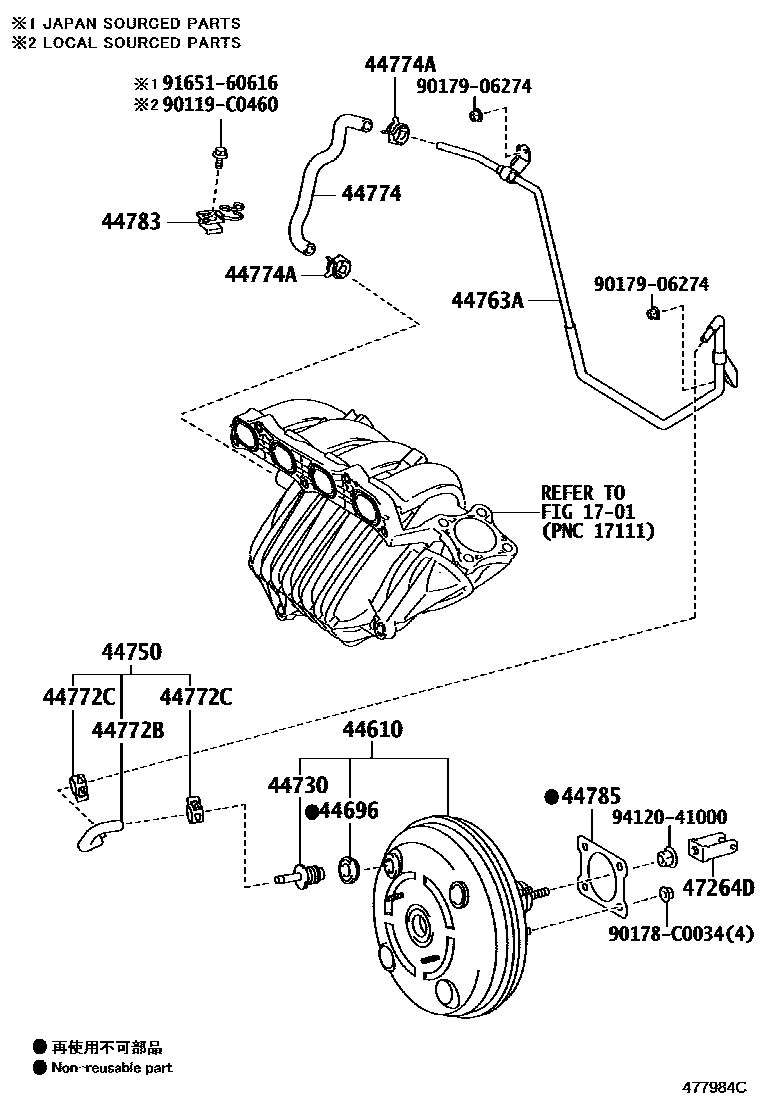

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

1701

44610BOOSTER ASSY, BRAKE

main44610-06490iASV50201112-201505

sub44610-06491

main44610-06491iASV50201506-201608

main44610-06500iACV51201112-201501

main44610-06580iASV50201608-201711

main44610-06620iASV51201501-201505

sub44610-06621

main44610-06621iASV51201506-201608

main44610-06770iASV51201608-201711

44696GROMMET, CHECK VALVE

main90080-48071iASV51201112-201608

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iACV51,ASV50¥1,300201112-201711

44750HOSE ASSY, VACUUM

main44750-06320iACV51,ASV50201112-201501

main44750-06340iASV51201501

44763ATUBE, HOSE TO HOSE, NO.1

main44763-06060iASV50201112-201501

main44763-06070iACV51201112-201501

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-06340iACV51,ASV50201112-201501

44772CCLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

main90467-16014iACV51,ASV50¥230201112-201501

44774HOSE, UNION TO CONNECTOR TUBE

main44774-06100iASV50201112-201501

main44774-06110iACV51201112-201501

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iACV51,ASV50¥230201112-201501

44783CLAMP, VACUUM HOSE

main44783-42030iASV50¥250201112-201501

main44783-44010iACV51¥260201112-201501

44785GASKET, BRAKE BOOSTER

main44785-02050iASV5#201112-201501

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0D050iACV51201112-201501

main47264-0N010iASV50201112-201501

90119C0460

main90119-C0460

90178C0034

main90178-C0034

9017906274

main90179-06274¥70

9165160616

main91651-60616¥100

9412041000

main94120-41000¥80

18 parts on this diagram · 5 diagrams in section
