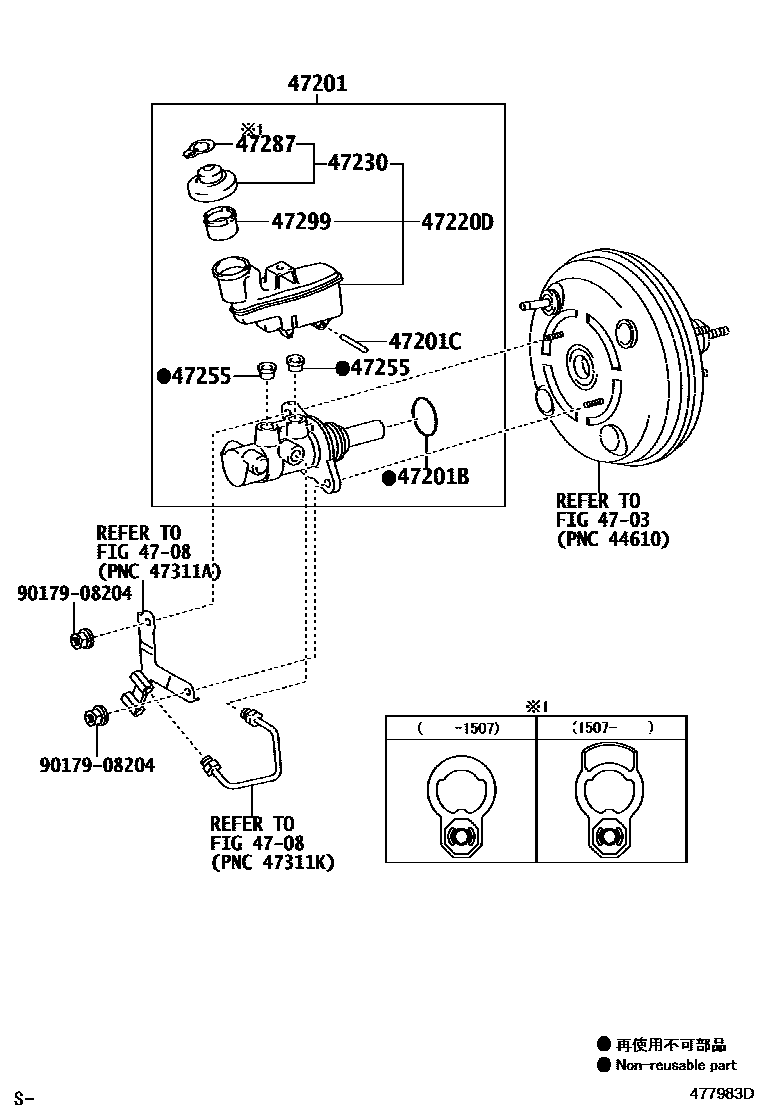

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-06450iASV50201112-201203

sub47201-06451

main47201-06451iASV50201204-201205

sub47201-06452

main47201-06452iASV50201205-201505

sub47201-06453

main47201-06453iASV51201501-201711

main47201-06460iACV51201112-201203

sub47201-06461

main47201-06461iACV51201204-201205

sub47201-06462

main47201-06462iACV51201205-201501

sub47201-06463

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iASV50201112-201506

main90016-AH902iASV51201501-201608

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iASV5#201112-201501

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-06280iASV5#201112-201711

main47220-33120iAVV50201205-201711

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02260iACV51,ASV50201112-201507

sub47230-0R030

main47230-0R030iASV5#201507

main47230-20140iAVV50201205-201501

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT002iASV51201501-201608

main90029-48001iACV51,ASV50201112-201506

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iASV5#201507

main47287-20010iASV5#201112-201507

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iACV51,ASV50201112-201607

9017908204

main90179-08204

11 parts on this diagram · 2 diagrams in section
