FRONT AXLE HUB

4302

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-73010iASV5#,AVV50201112-201711

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-73010iACV51,ASV50,AVV50201112-201501

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-06110iASV5#201112-201501

main43502-0E050iAVV50201205-201501

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iACV51,ASV50,AVV50201112-201501

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-C0002iACV51,ASV50,AVV50201112-201501

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-77001iACV51,ASV50,AVV50201112-201501

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iASV5#,AVV50201112-201501

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-06110iACV51,ASV50201112-201501

main43502-0E050iAVV50201205-201501

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iACV51,ASV50,AVV50201112-201501

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-C0002iASV5#,AVV50201112-201501

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-77001iACV51,ASV50,AVV50201112-201501

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iACV51,ASV50,AVV50201112-201501

43512DISC, FRONT

main43512-06131iACV51,ASV50,AVV50201112-201711

4802

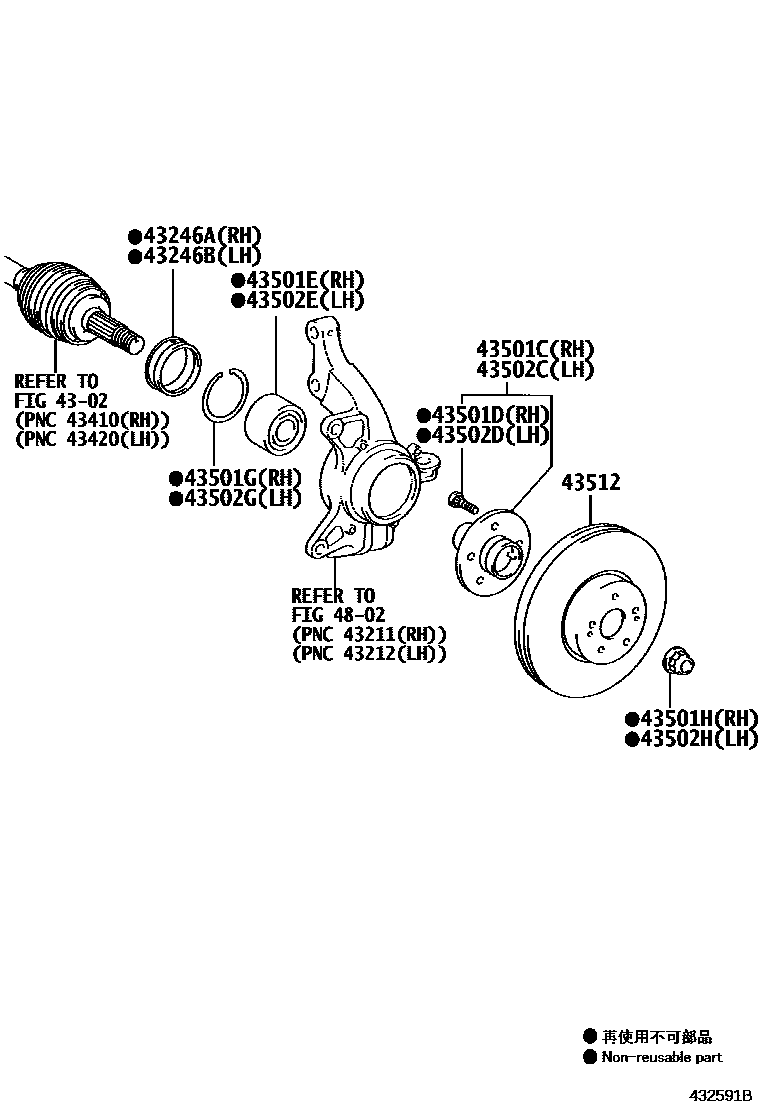

15 parts on this diagram · 1 diagram in section
