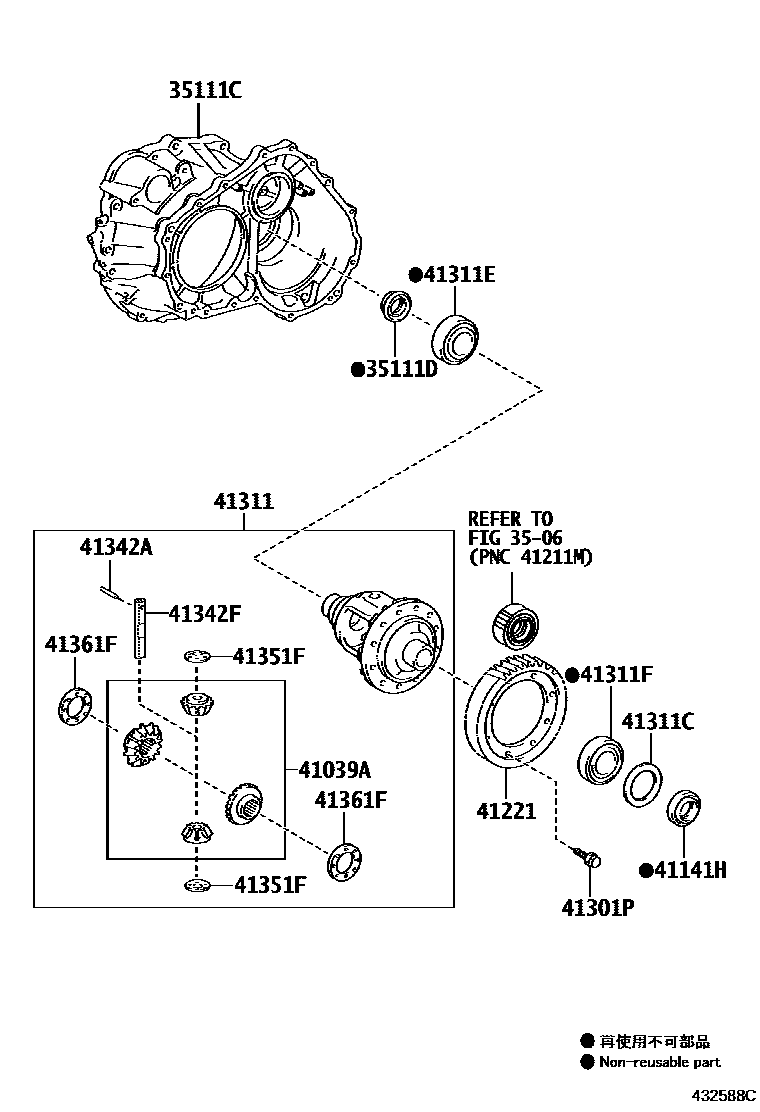

FRONT AXLE HOUSING & DIFFERENTIAL
3506
35111CHOUSING, TRANSAXLE
*285
35111DSEAL, OIL (FOR TRANSAXLE HOUSING)
41141HSEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)
sub90311-50064
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
*285,*284
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=1.90,MARK 0
T=1.95,MARK 1
T=2.00,MARK 2
T=2.05,MARK 3
T=2.10,MARK 4
T=2.15,MARK 5
T=2.20,MARK 6
T=2.25,MARK 7
T=2.30,MARK 8
T=2.35,MARK 9
T=2.40,MARK A
T=2.45,MARK B
T=2.50,MARK C
T=2.55,MARK D
T=2.60,MARK E
T=2.65,MARK F
T=2.70,MARK G
T=2.75,MARK H
T=2.80,MARK J
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
*285,*284
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
*285,*284
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
*285,*284
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
*285
*284
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
*285,*284
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.0,MARK 1
T=1.1,MARK 2
T=1.2,MARK 3
T=1.3,MARK 4
T=2.0,MARK 1
T=2.1,MARK 2
T=2.2,MARK 3
T=2.3,MARK 4
T=1.9,MARK 5
15 parts on this diagram · 2 diagrams in section
