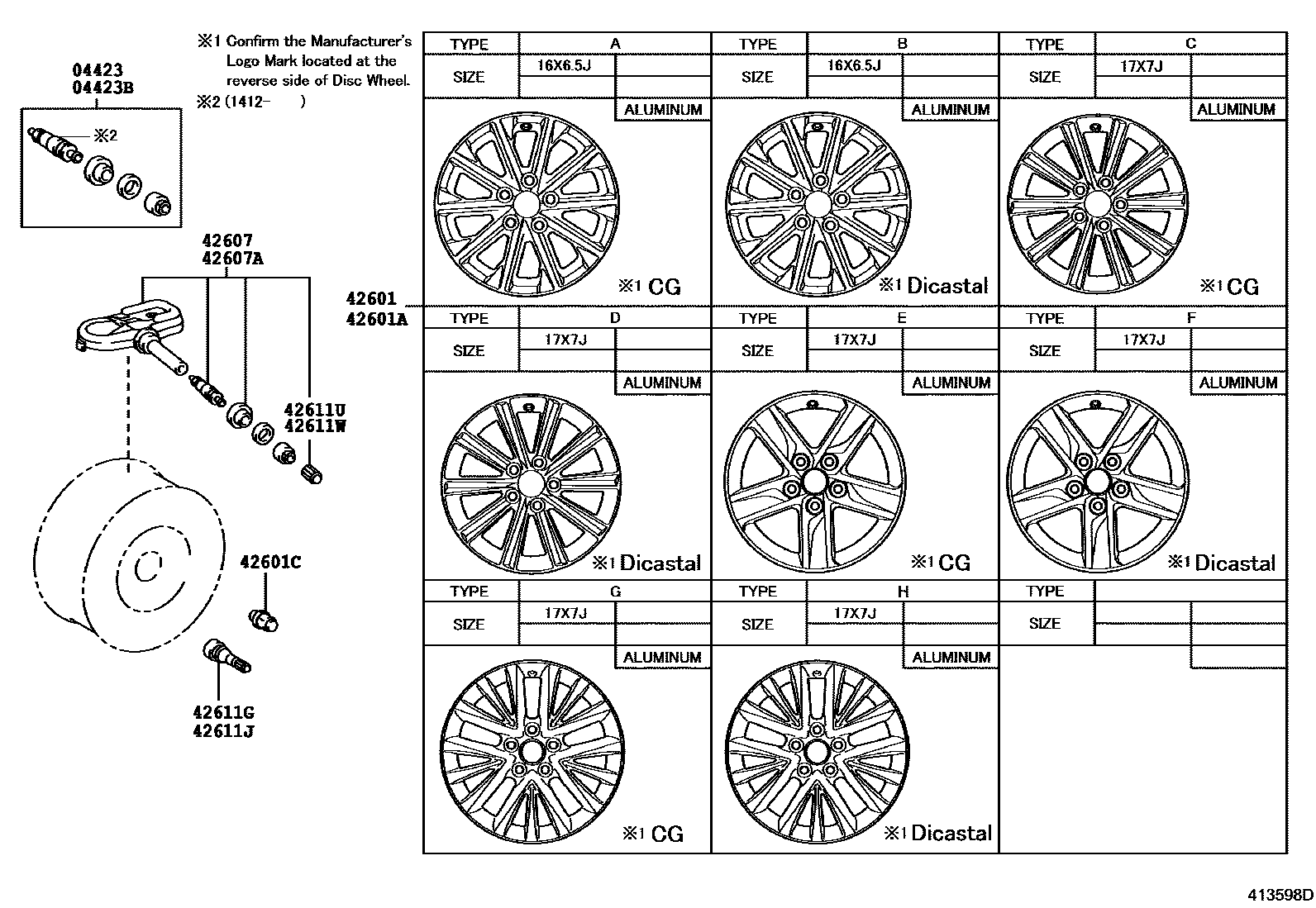

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
42601WHEEL, DISC
16X6.5J, #,G GRADE,TYPE A:REFER ILLUST.
16X6.5J, #,TYPE A:REFER ILLUST.
17X7J, #,TYPE C:REFER ILLUST.
17X7J, #,TYPE E:REFER ILLUST.
16X6.5J, #,TYPE B:REFER ILLUST.
16X6.5J, #,G GRADE,TYPE B:REFER ILLUST.
17X7J, #,TYPE D:REFER ILLUST.
17X7J, #,TYPE F:REFER ILLUST.
17X7J, #,TYPE G:REFER ILLUST.
17X7J, #,TYPE H:REFER ILLUST.
17X7J, #,TYPE E:REFER ILLUST.
17X7J, #,TYPE F:REFER ILLUST.
17X7J, #,TYPE G:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X6.5J, #,TYPE A:REFER ILLUST.
16X6.5J, #,G GRADE,TYPE A:REFER ILLUST.
17X7J, #,TYPE C:REFER ILLUST.
17X7J, #,TYPE E:REFER ILLUST.
16X6.5J, #,G GRADE,TYPE B:REFER ILLUST.
16X6.5J, #,TYPE B:REFER ILLUST.
17X7J, #,TYPE D:REFER ILLUST.
17X7J, #,TYPE F:REFER ILLUST.
17X7J, #,TYPE G:REFER ILLUST.
17X7J, #,TYPE H:REFER ILLUST.
17X7J, #,TYPE E:REFER ILLUST.
17X7J, #,TYPE F:REFER ILLUST.
17X7J, #,TYPE G:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
(J)
G GRADE,(J)
G GRADE,(L)
(L)
42611GVALVE (FOR TUBELESS TIRE)
G GRADE
42611JVALVE (FOR TUBELESS TIRE SPARE)
G GRADE
11 parts on this diagram · 3 diagrams in section
