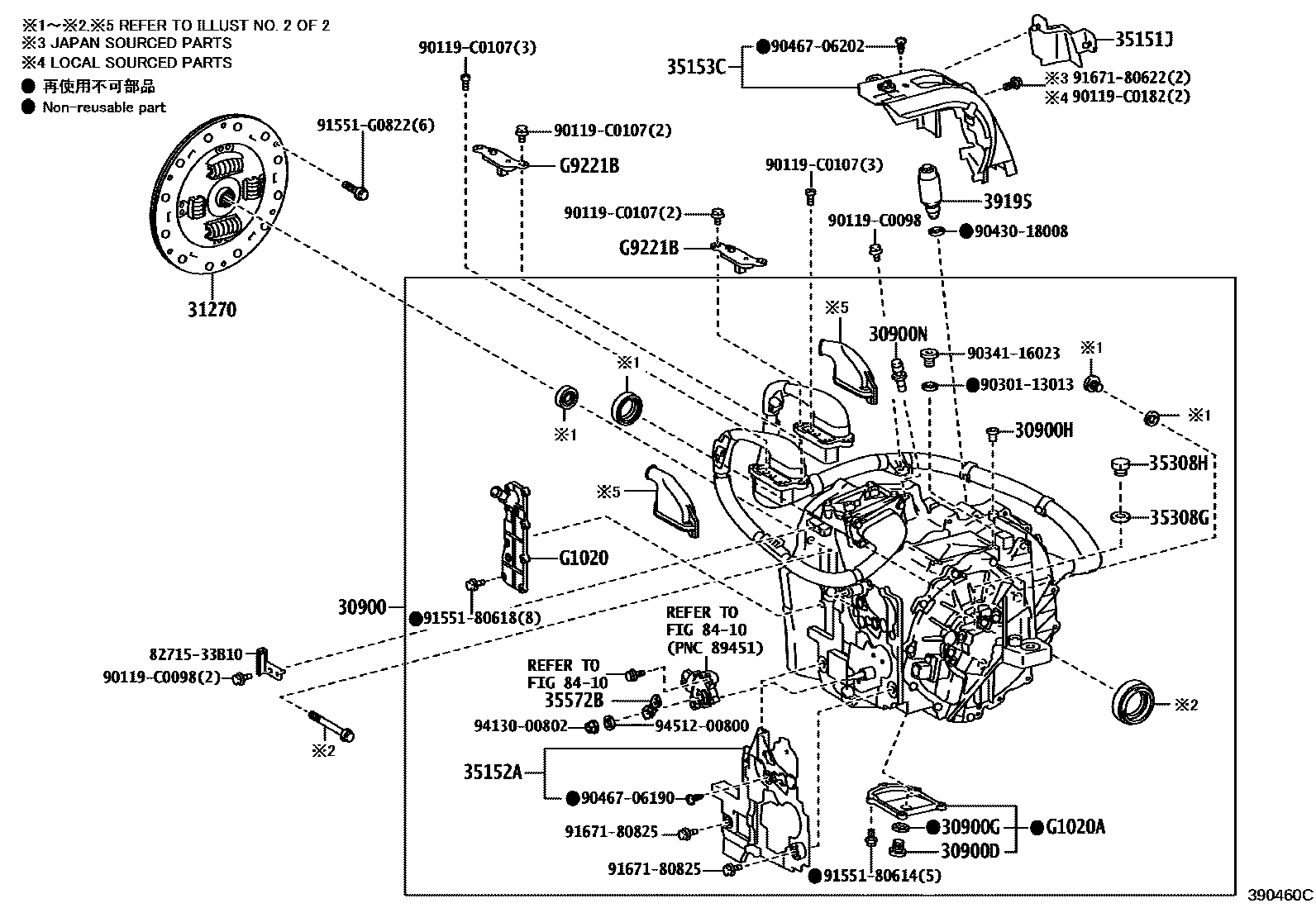

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900TRANSAXLE ASSY, HYBRID VEHICLE
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900GGASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)
30900HPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR TRANSAXLE HSG & CASE)
30900NPLUG, BREATHER(FOR TRANSAXLE)
31270DAMPER ASSY, TRANSMISSION INPUT
35151JCOVER, AUTOMATIC TRANSMISSION CASE
35152ACOVER, AUTOMATIC TRANSMISSION CASE, NO.2
35153CCOVER, AUTOMATIC TRANSMISSION CASE, NO.3
35308GRING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)
35572BLEVER, TRANSMISSION, OUTER
39195DAMPER, HV TRANSAXLE MASS
8410
G1020COVER ASSY, MOTOR WATER JACKET, NO.1
G1020ACOVER ASSY, MOTOR WATER JACKET, NO.2
G9221BCOVER, INVERTER, UPRPER
8271533B10BRACKET,WIRING HARNESS CLAMP
90119C0098
main90119-C0098
90119C0107
main90119-C0107
90119C0182
main90119-C0182
9030113013
9034116023
9043018008
9046706190
9046706202
9155180614
9155180618
91551G0822
9167180622
9167180825
9413000802
9451200800
33 parts on this diagram · 2 diagrams in section
