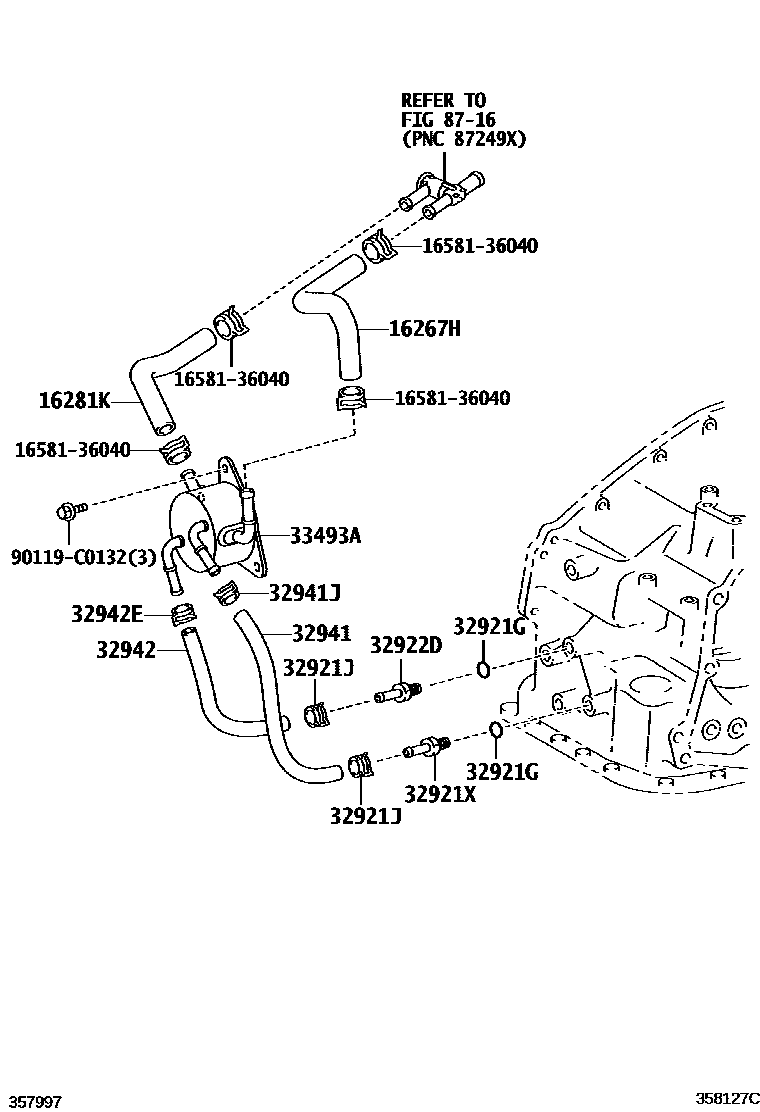

OIL COOLER & TUBE (ATM)

0001 1U760E 0002 1U241E 0003 1U761E 0004 1U761E

16267HHOSE, WATER BY-PASS, NO.3

main16267-0H030i1AZFE..ACV51201112-201501

main16267-0V040i5ARFE..ASV50201112-201608

main16267-0V080i6ARFSE..ASV51201501-201711

main16267-0V160i5ARFE..ASV50201608-201711

16281KHOSE, WATER BY-PASS, NO.4

main16281-0H030i1AZFE..ACV51201112-201501

main16281-0V040i5ARFE..ASV50201112-201608

main16281-0V080i6ARFSE..ASV51201501-201711

main16281-0V160i5ARFE..ASV50201608-201711

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10018iACV51201307-201501

main90301-10189iACV51201112-201307

main90301-11031iASV50201112-201608

32921JCLIP(FOR OIL COOLER HOSE)

main90466-16004iACV51,ASV50201112-201210

main90466-16004iACV51,ASV50201210-201501

(J)

main90466-C0024iACV51,ASV50201210-201501

(L)

32921XUNION OR ELBOW, OIL COOLER INLET

main90404-14027iASV50201112-201608

main90407-14032iASV51201501

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90404-14027iASV50201112-201608

32941HOSE, OIL COOLER INLET, NO.1

main32941-06140iASV51201501

main32941-33140iACV51201112-201501

main90445-17183iASV50201112-201401

main90445-C0010iASV50201402-201608

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iASV50201112-201402

main90466-16004iACV51201308-201501

(J)

main90466-C0024iACV51201308-201501

(L)

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-06130iASV51201501

main32942-33130iACV51201112-201501

main90445-17100iASV50201112-201401

main90445-C0011iASV50201402-201608

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004iACV51201112-201402

main90466-16004iACV51201308-201501

(J)

main90466-C0024iASV50201308-201501

(L)

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-06010iASV51201501

main33493-33030iASV50201112-201608

main33493-33050iACV51201112-201501

8716

1658136040CLAMP, HOSE(FOR WATER HOSE)

main16581-36040

90119C0132

main90119-C0132

14 parts on this diagram · 4 diagrams in section
