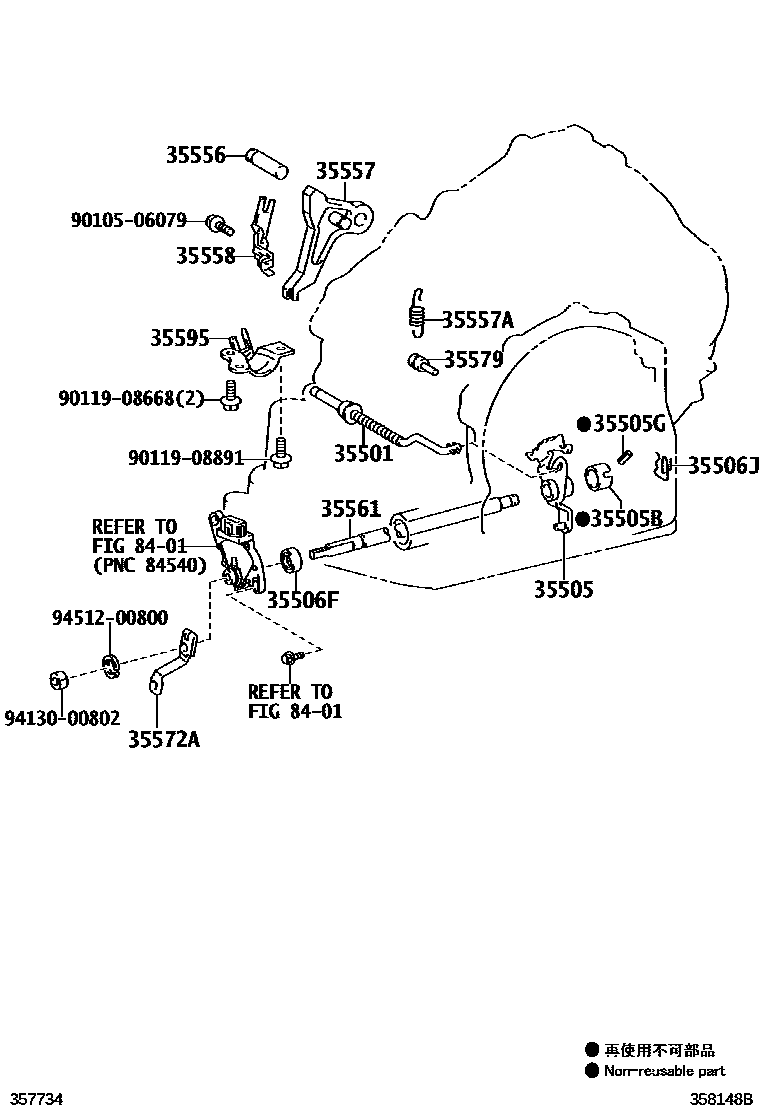

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U241E 0002 1U760E,U761E

35501ROD SUB-ASSY, PARKING LOCK

main35501-21010iACV51201112-201501

main35501-33020iASV50201112-201501

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-21010iACV51201112-201501

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iACV51201112-201501

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iACV51201112-201501

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-33011iASV50201112-201608

*285

main35506-33011iASV51201501

main35506-73011iASV50201112-201608

*284

sub35506-33011

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iACV51,ASV50201112-201501

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iACV51201112-201501

main90524-09002iASV50201112-201501

35556SHAFT, PARKING LOCK PAWL

main35556-32030iACV51201112-201501

main35556-33010iASV50201112-201608

*284

main35556-33020iASV51201501

main35556-33020iASV50201112-201608

*285

35557PAWL, PARKING LOCK

main35557-73010iASV50201112-201501

main35590-32010iACV51201112-201501

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90506-18077iACV51201112-201501

35558CLAMP, PAWL SHAFT

main35558-32010iACV51201112-201501

main35558-33010iASV50201112-201608

*284

main35558-33020iASV50201501

main35558-33020iASV50201112-201608

*285

35561SHAFT, MANUAL VALVE LEVER

main35561-21010iACV51201112-201501

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-33020iASV50201112-201711

main35572-33040iACV51201112-201501

35579PIN, PARKING LOCK PAWL

main35594-21010iACV51201112-201501

35595BRACKET, PARKING LOCK PAWL

main35595-21010iACV51201112-201501

8401

9010506079

main90105-06079

9011908668

main90119-08668

9011908891

main90119-08891

9413000802

main94130-00802

9451200800

main94512-00800

21 parts on this diagram · 2 diagrams in section
