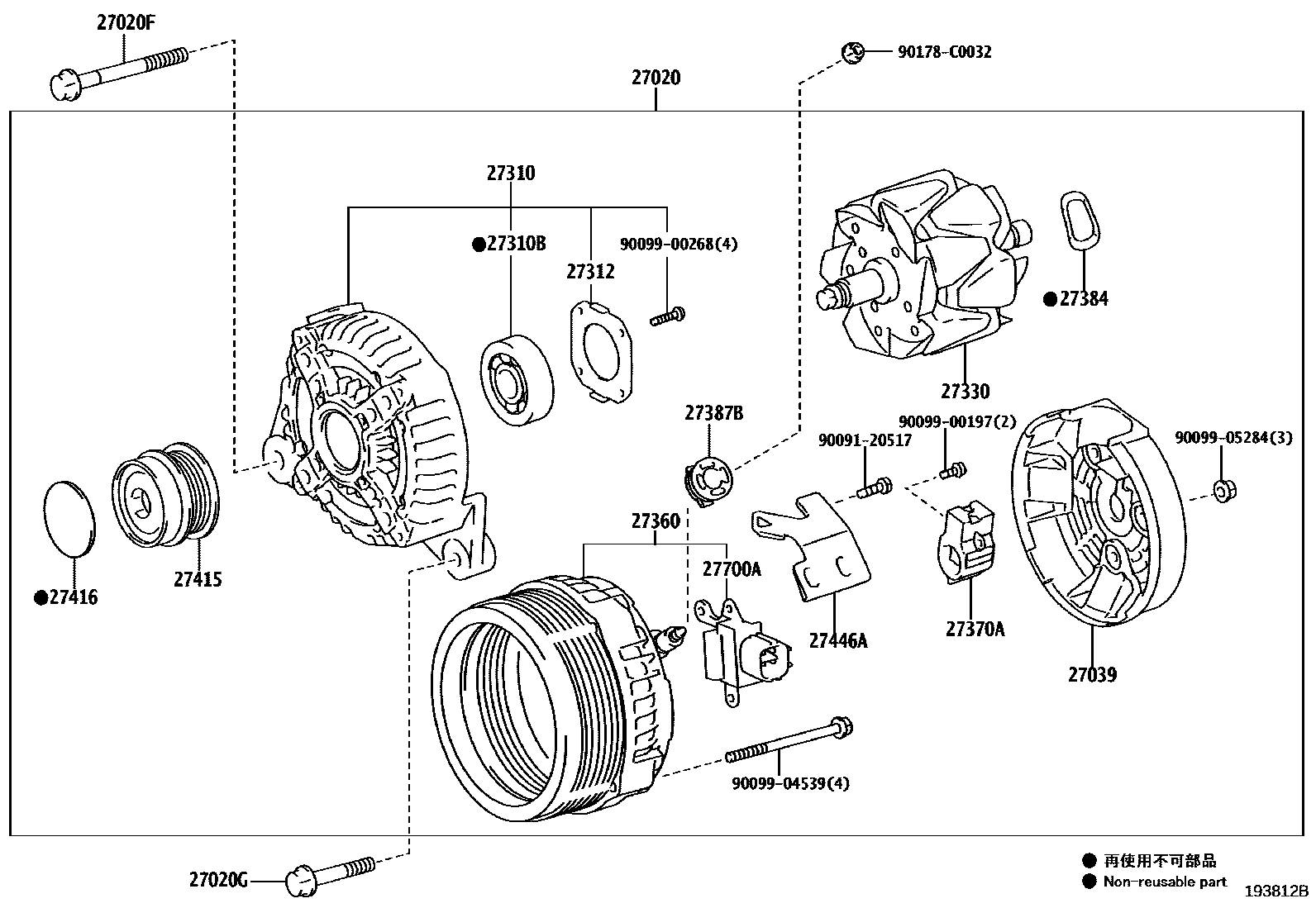

ALTERNATOR

0001 112V 100A 0002 112V 100A 0003 112V 100A 0004 112V 150A

27020ALTERNATOR ASSY

main27060-0H230i1AZFE..ACV51201112-201501

12V 100A

main27060-0V110i5ARFE..ASV50201112-201501

12V 100A

main27060-0V150i5ARFE..ASV50201501-201608

12V 100A

main27060-0V210i6ARFSE..ASV51201501-201608

12V 100A

main27060-0V350i5ARFE,6ARFSE..ASV5#201608

12V 150A

27020FBOLT, NO.1(FOR ALTERNATOR)

main90105-C0034i1AZFE..ACV51201112-201501

(L)

main90105-C0160i5ARFE..ASV50201112-201501

main91512-81085i1AZFE..ACV51201112-201501

(J)

27020GBOLT, NO.2(FOR ALTERNATOR)

main90105-C0028i1AZFE..ACV51201112-201501

(L)

main90105-C0202i5ARFE..ASV50201112-201501

main91551-80840i1AZFE..ACV51201112-201501

(J)

27039COVER, ALTERNATOR REAR END

main27039-0P070i1AZFE,5ARFE..ACV51,ASV50201112-201501

main27039-0T260i5ARFE,6ARFSE..ASV5#201501-201608

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0H160i1AZFE..ACV51201112-201501

sub27310-0H170

main27310-0V010i5ARFE,6ARFSE..ASV5#201608-201711

main27310-0V110i5ARFE..ASV50201112-201501

main27310-0V200i5ARFE,6ARFSE..ASV5#201501-201608

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033i1AZFE..ACV51201112-201212

main90068-10042i1AZFE..ACV51201212-201711

main90068-10050i5ARFE,6ARFSE..ASV5#201112-201608

sub90068-10033

27312PLATE, RETAINER

main27312-0M070i5ARFE,6ARFSE..ASV5#201112-201711

main27312-72100i1AZFE..ACV51201112-201310

27330ROTOR ASSY, ALTERNATOR

main27330-0P180i5ARFE,6ARFSE..ASV5#201608

main27330-0T030i1AZFE,5ARFE..ACV51,ASV50201112-201501

main27330-0T260i5ARFE,6ARFSE..ASV5#201501-201608

27360COIL ASSY, ALTERNATOR

main27360-0H170i1AZFE..ACV51201112-201501

main27360-0V010i5ARFE..ASV50201112-201501

main27360-0V140i5ARFE..ASV50201501-201608

main27360-0V210i6ARFSE..ASV51201501-201608

main27360-0V320i5ARFE,6ARFSE..ASV5#201608

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-0H110i5ARFE..ASV50201112-201501

main27370-0T030i5ARFE..ASV50201206-201501

27384WASHER

main27384-50030i1AZFE,5ARFE..ACV51,ASV50201112-201501

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-0H110i5ARFE,6ARFSE..ASV5#201112-201501

main27387-0T030i5ARFE..ASV50201112-201206

sub27387-0H110

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0V040i5ARFE,6ARFSE..ASV5#201608-201711

main27415-0W020i5ARFE..ASV50201112-201307

sub27415-0W021

main27415-0W021i5ARFE..ASV50201308-201608

main27415-0W041i1AZFE..ACV51201112-201310

sub27415-0W042

sub27416-0W050

main27415-0W042i1AZFE..ACV51201310-201501

main27415-36020i6ARFSE..ASV51201501-201608

27416CAP, ALTERNATOR PULLEY

main27416-0W020i1AZFE..ACV51201112-201310

main27416-0W050i5ARFE..ASV50201112-201711

27446ACLAMP

main27446-28120i1AZFE..ACV51201112-201501

27700AREGULATOR ASSY, GENERATOR

main27700-0T030i1AZFE,5ARFE..ACV51,ASV50201112-201501

9009120517

main90091-20517

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

90178C0032

main90178-C0032

22 parts on this diagram · 4 diagrams in section
