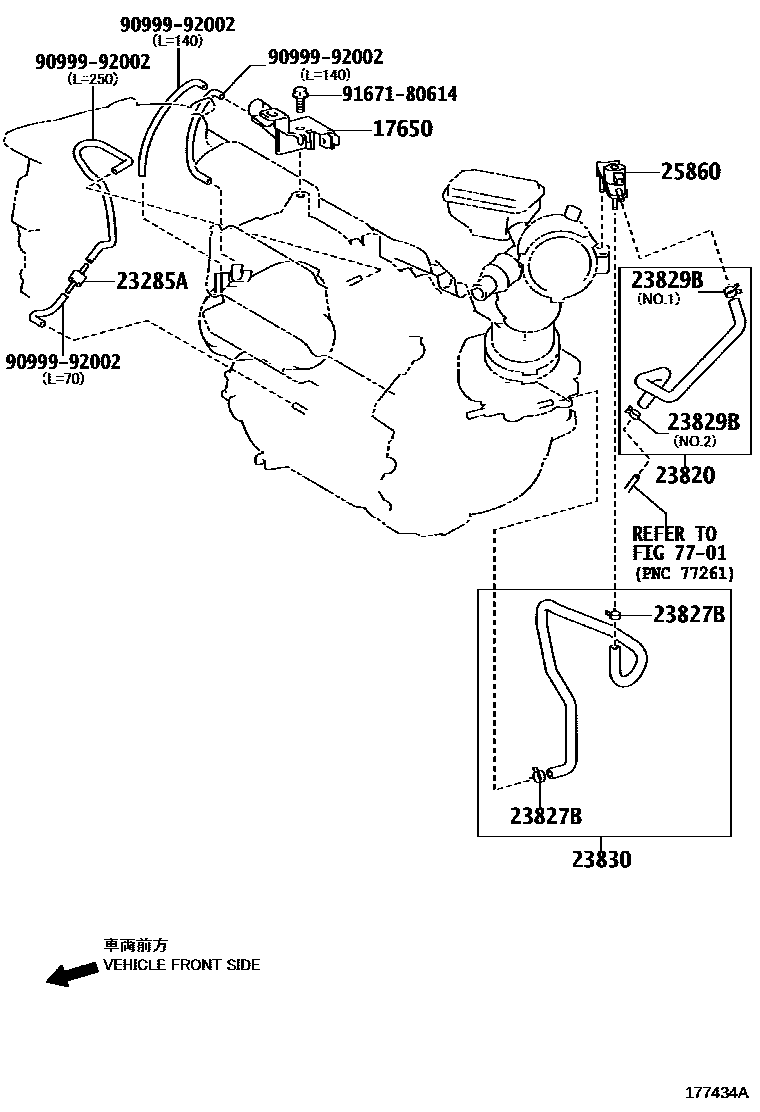

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

17650VALVE ASSY, VACUUM SWITCHING

main25860-36010i5ARFE..ASV50201112-201501

23285AVALVE, CHECK, NO.1

main90917-10065i5ARFE..ASV50201112-201501

23820HOSE ASSY, FUEL VAPOR FEED

main23820-0H200i1AZFE..ACV51201112-201501

main23820-0V120i5ARFE..ASV50201112-201711

main23820-0V130i4ARFXE..AVV50201205-201711

main23820-0V200i6ARFSE..ASV51201501-201711

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-11003i1AZFE..ACV51201112-201501

NO.2

main90466-13004i5ARFE..ASV50201112-201501

main96132-51000i1AZFE..ACV51201112-201501

NO.1

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-11003i1AZFE,5ARFE..ACV51,ASV50201112-201501

NO.1

main90466-13004i5ARFE..ASV50201112-201501

NO.2

main90467-12056i4ARFXE..AVV50201205-201501

23830HOSE ASSY, FUEL VAPOR FEED, NO.2

main23830-0H100i1AZFE..ACV51201112-201501

main23830-0V080i5ARFE..ASV50201112-201501

main23830-0V090i4ARFXE..AVV50201205-201501

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0H130i5ARFE..ASV50201112-201501

main25860-0V150i6ARFSE..ASV51201501

7701

9099992002

main90999-92002

9167180614

main91671-80614

10 parts on this diagram · 4 diagrams in section
