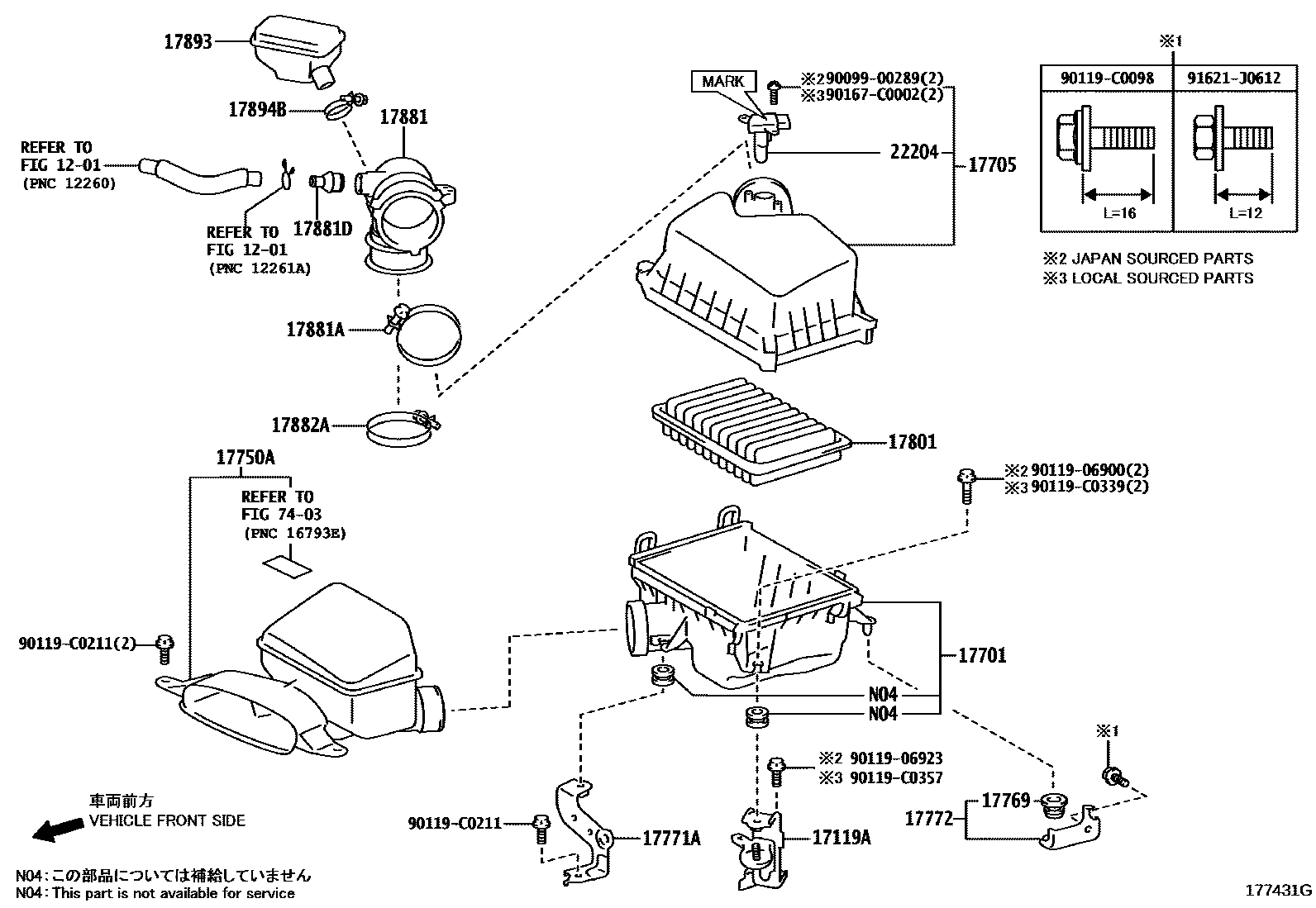

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

1201

17119ABRACKET, AIR CLEANER

main17119-0V060i5ARFE..ASV50201112-201501

main17119-0V070i4ARFXE..AVV50201205-201501

17701CASE SUB-ASSY, AIR CLEANER

main17701-0H160i1AZFE..ACV51201112-201501

main17701-0V060i5ARFE..ASV50201112-201501

main17701-0V070i4ARFXE..AVV50201205-201501

main17701-0V160i6ARFSE..ASV51201501

17705CAP SUB-ASSY, AIR CLEANER

main17705-0H171i1AZFE..ACV51201112-201501

main17705-0V060i5ARFE..ASV50201112-201501

main17705-0V070i4ARFXE..AVV50201205-201501

main17705-0V170i6ARFSE..ASV51201501

17750AINLET ASSY, AIR CLEANER

main17750-0H050i1AZFE..ACV51201112-201501

main17750-0V070i5ARFE..ASV50201112-201501

main17750-0V080i4ARFXE..AVV50201205-201501

main17750-0V130i6ARFSE..ASV51201501

17769SUPPORT, AIR CLEANER

main90480-18006i4ARFXE,5ARFE,6ARFSE..ASV5#,AVV50201112-201711

17771ABRACKET, AIR CLEANER

main17771-0V050i5ARFE..ASV50201112-201501

main17771-0V060i4ARFXE..AVV50201205-201501

17772BRACKET, INTAKE AIR CONNECTOR, NO.2

main17772-0V050i5ARFE..ASV50201112-201501

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0H080i1AZFE..ACV51201112-201501

(L)

main17801-0V100i4ARFXE,6ARFSE..ASV51,AVV50201407-201501

(L)

main17801-28030i5ARFE..ASV50201112-201501

(J)

main17801-38011i4ARFXE..AVV50201205-201407

main17801-38011i4ARFXE..AVV50201407-201501

(J)

17881HOSE, AIR CLEANER, NO.1

main17881-0H120i1AZFE..ACV51201112-201501

main17881-0V120i5ARFE..ASV50201112-201501

main17881-0V130i4ARFXE..AVV50201205-201501

main17881-0V220i6ARFSE..ASV51201501

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10880i1AZFE,4ARFXE,5ARFE..ACV51,ASV50,AVV50201112-201501

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main17878-0V030i1AZFE,4ARFXE,5ARFE..ACV51,ASV50,AVV50201112-201501

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i1AZFE,4ARFXE..ACV51,AVV50201112-201301

main90466-62002i4ARFXE..AVV50201301-201501

(J)

main90466-C0019i4ARFXE..AVV50201301-201501

(L)

main96111-10750i6ARFSE..ASV51201501

main96111-10850i5ARFE..ASV50201112-201501

17893RESONATOR, INTAKE AIR

main17893-0H090i1AZFE..ACV51201112-201501

main17893-0V100i5ARFE..ASV50201112-201501

main17893-0V110i4ARFXE..AVV50201205-201501

main17893-0V180i6ARFSE..ASV51201501

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10400i1AZFE..ACV51201112-201501

main96111-10430i4ARFXE,5ARFE..ASV50,AVV50201112-201501

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0P010i1AZFE..ACV51201112-201501

MARK 22204-0P010

main22204-0T010i1AZFE..ACV51201112-201501

MARK 22204-0T010

sub22204-0P010

main22204-0T040i4ARFXE,5ARFE..ASV50,AVV50201501

(L),MARK 22030-0T040

sub22204-28010

main22204-0V020i4ARFXE,5ARFE..ASV50,AVV50201501

(L),MARK 22030-0V020

main22204-28010i4ARFXE,5ARFE..ASV50,AVV50201112-201501

main22204-28010i4ARFXE,5ARFE..ASV50,AVV50201501

(J)

main22204-31020i1AZFE..ACV51201112-201501

MARK 22204-31020

main22204-75040i6ARFSE..ASV51201501

7403

9009900289

main90099-00289

9011906900

main90119-06900

9011906923

main90119-06923

90119C0098

main90119-C0098

90119C0211

main90119-C0211

90119C0339

main90119-C0339

90119C0357

main90119-C0357

90167C0002

main90167-C0002

91621J0612

main91621-J0612

26 parts on this diagram · 4 diagrams in section
