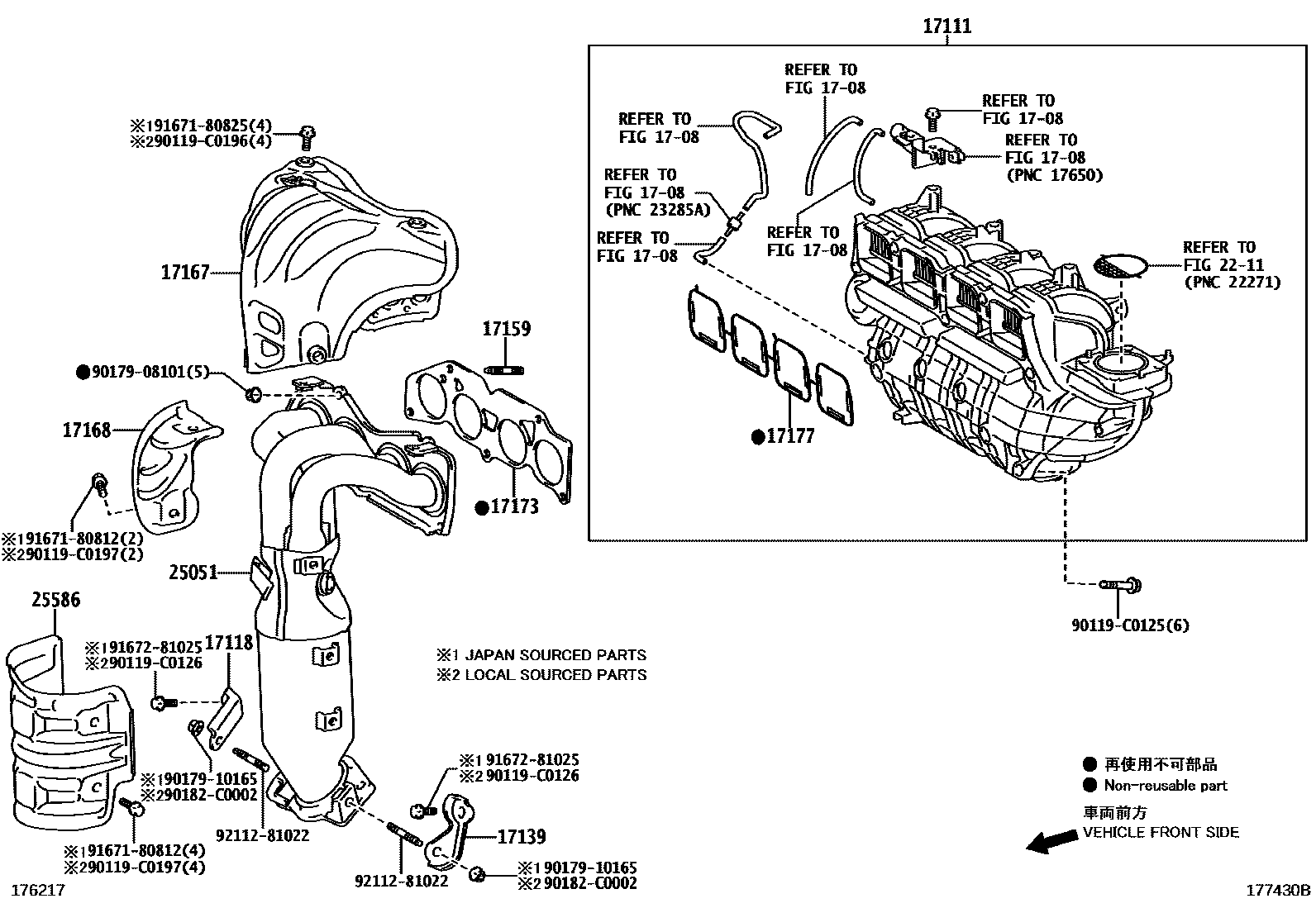

MANIFOLD

0001 1W/O(TCV) 0002 1W(TCV) 0003 1 0004 1 0005 1

1708

17111MANIFOLD, INTAKE

main17120-0H071i1AZFE..ACV51201112-201201

(L)

sub17120-0H072

main17120-0H072i1AZFE..ACV51201201-201501

(L)

main17120-0V030i5ARFE..ASV50201112-201608

sub17120-36070

main17120-0V060i6ARFSE..ASV51201501-201703

sub17120-0V061

main17120-0V061i6ARFSE..ASV51201704-201711

main17120-28070i1AZFE..ACV51201112-201201

(J)

sub17120-28071

main17120-28071i1AZFE..ACV51201201-201501

(J)

main17120-36020i5ARFE..ASV50201608-201610

sub17120-36021

main17120-36021i5ARFE..ASV50201611-201711

main17120-36050i4ARFXE..AVV50201205-201711

17118STAY, MANIFOLD

main17118-0V020i5ARFE,6ARFSE..ASV5#201112-201501

main17118-0V030i4ARFXE..AVV50201205-201501

main17118-28080i1AZFE..ACV51201112-201501

17139STAY, MANIFOLD, NO.2

main17139-0V020i5ARFE,6ARFSE..ASV5#201112-201501

main17139-0V030i4ARFXE..AVV50201205-201501

main17139-28050i1AZFE..ACV51201112-201501

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08037i1AZFE..ACV51201112-201501

main90126-08052i4ARFXE,5ARFE..ASV50,AVV50201112-201709

main90126-08052i4ARFXE,5ARFE..ASV50,AVV50201709

(J)

main90126-10015i6ARFSE..ASV51201501

main90126-C0010i4ARFXE,5ARFE..ASV50,AVV50201709

(L)

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-0H050i1AZFE..ACV51201112-201501

main17167-0V020i4ARFXE,5ARFE..ASV50,AVV50201112-201501

main17167-0V040i6ARFSE..ASV51201501

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-0H050i1AZFE..ACV51201112-201501

main17168-0V020i4ARFXE,5ARFE..ASV50,AVV50201112-201501

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0H040i1AZFE..ACV51201112-201501

main17173-0V020i4ARFXE,5ARFE..ASV50,AVV50201112-201501

main17173-0V030i6ARFSE..ASV51201501

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-0V020i5ARFE..ASV50201112-201608

main17171-0V030i6ARFSE..ASV51201501

main17171-36010i5ARFE..ASV50201608-201610

main17171-36011i5ARFE..ASV50201611

main17171-36020i4ARFXE..AVV50201205-201501

main17177-28010i1AZFE..ACV51201112-201201

sub17177-28031

main17177-28031i1AZFE..ACV51201201-201501

2211

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-0H160i1AZFE..ACV51201112-201501

main25051-0V050i5ARFE..ASV50201112-201501

main25051-0V060i4ARFXE..AVV50201205-201501

main25051-0V220i6ARFSE..ASV51201501

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-0H050i1AZFE..ACV51201112-201501

main25586-0V030i5ARFE..ASV50201112-201501

main25586-0V040i4ARFXE..AVV50201205-201410

sub25586-0V070

main25586-0V070i4ARFXE..AVV50201411-201501

90119C0125

main90119-C0125

90119C0126

main90119-C0126

90119C0196

main90119-C0196

90119C0197

main90119-C0197

9017908101

main90179-08101

9017910165

main90179-10165

90182C0002

main90182-C0002

9167180812

main91671-80812

9167180825

main91671-80825

9167281025

main91672-81025

9211281022

main92112-81022

23 parts on this diagram · 5 diagrams in section
