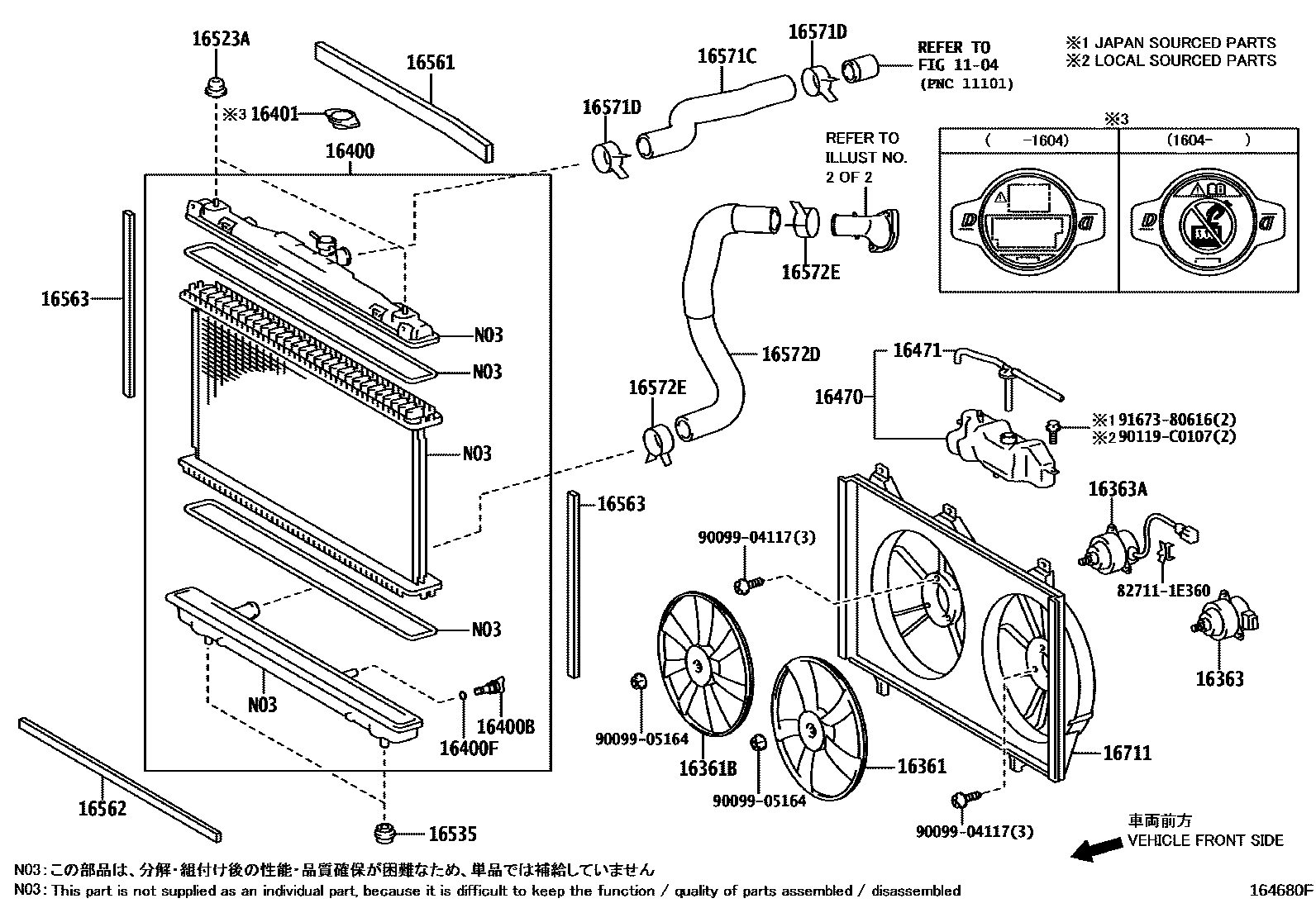

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1RADIATOR SIDE 0003 1ENGINE SIDE 0004 1ENGINE SIDE 0005 1ENGINE SIDE 0006 1ENGINE SIDE

1104

16361FAN

main16361-0V190i5ARFE,6ARFSE..ASV5#201112-201501

main16361-0V210i4ARFXE..AVV50201205-201501

16361BFAN, NO.2

main16361-0V200i1AZFE,5ARFE..ACV51,ASV50201112-201501

main16361-0V220i4ARFXE..AVV50201205-201501

16363MOTOR, COOLING FAN

main16363-02120i1AZFE,5ARFE..ACV51,ASV50201112-201501

sub16363-23010

main16363-0V250i4ARFXE..AVV50201205-201501

sub16363-0P080

16363AMOTOR, COOLING FAN, NO.2

main16363-0V240i1AZFE,5ARFE..ACV51,ASV50201112-201501

sub16363-36060

main16363-0V260i4ARFXE..AVV50201205-201501

sub16363-0V220

16400RADIATOR ASSY

main16400-0V150i1AZFE,5ARFE..ACV51,ASV50201112-201501

main16400-0V160i4ARFXE..AVV50201205-201501

16400BPLUG, RADIATOR DRAIN COCK

main16417-0H290i1AZFE,4ARFXE,5ARFE..ACV51,ASV50,AVV50201112-201501

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1AZFE,4ARFXE,5ARFE..ACV51,ASV50,AVV50201112-201711

16401CAP SUB-ASSY, RADIATOR

main16401-0M010i4ARFXE..AVV50201604

main16401-0Y060i4ARFXE,5ARFE,6ARFSE..ASV5#,AVV50201312-201604

(L)

main16401-31480i4ARFXE,5ARFE,6ARFSE..ASV5#,AVV50201312-201604

(J)

main16401-31480i1AZFE,4ARFXE,5ARFE..ACV51,ASV50,AVV50201112-201312

16470TANK ASSY, RADIATOR RESERVE

main16470-0V040i1AZFE,4ARFXE,5ARFE..ACV51,ASV50,AVV50201112-201501

16471CAP SUB-ASSY, RESERVE TANK

main16405-0V010i1AZFE,4ARFXE,5ARFE..ACV51,ASV50,AVV50201112-201501

16523ACUSHION, RADIATOR SUPPORT

main16523-0H040i1AZFE,4ARFXE,5ARFE..ACV51,ASV50,AVV50201112-201501

16535SUPPORT, RADIATOR, LOWER

main16535-0H040i1AZFE..ACV51201112-201501

main16535-0V020i4ARFXE..AVV50201502

(L)

main16535-20010i5ARFE,6ARFSE..ASV5#201112-201501

main16535-28060i4ARFXE..AVV50201502

(J)

main16535-28060i4ARFXE..AVV50201205-201502

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-0V100i1AZFE,4ARFXE,5ARFE..ACV51,ASV50,AVV50201112-201501

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16562-0V060i1AZFE,4ARFXE,5ARFE..ACV51,ASV50,AVV50201112-201501

16563SEAL, RADIATOR TO SUPPORT, NO.3

main16563-0V060i4ARFXE,5ARFE,6ARFSE..ASV5#,AVV50201112-201501

16571CHOSE, RADIATOR, NO.1

main16571-0H200i1AZFE..ACV51201112-201501

main16571-0V110i5ARFE..ASV50201112-201501

main16571-0V120i4ARFXE..AVV50201205-201501

main16571-0V200i6ARFSE..ASV51201501

16571DCLIP, RADIATOR HOSE, NO.1

main90466-35001i1AZFE,4ARFXE,5ARFE..ACV51,ASV50,AVV50201112-201212

main90466-C0009i1AZFE,4ARFXE,5ARFE..ACV51,ASV50,AVV50201301-201501

16572DHOSE, RADIATOR, NO.2

main16572-0H170i1AZFE..ACV51201112-201501

main16572-0V100i5ARFE..ASV50201112-201501

main16572-0V110i4ARFXE..AVV50201205-201501

16572ECLIP, RADIATOR HOSE, NO.2

main90466-35001i1AZFE,4ARFXE,5ARFE..ACV51,ASV50,AVV50201112-201212

main90466-C0009i4ARFXE,5ARFE,6ARFSE..ASV5#,AVV50201301-201501

16711SHROUD, FAN

main16711-0V140i5ARFE,6ARFSE..ASV5#201112-201501

main16711-0V150i4ARFXE..AVV50201205-201501

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9009904117

main90099-04117

9009905164

main90099-05164

90119C0107

main90119-C0107

9167380616

main91673-80616

26 parts on this diagram · 6 diagrams in section
