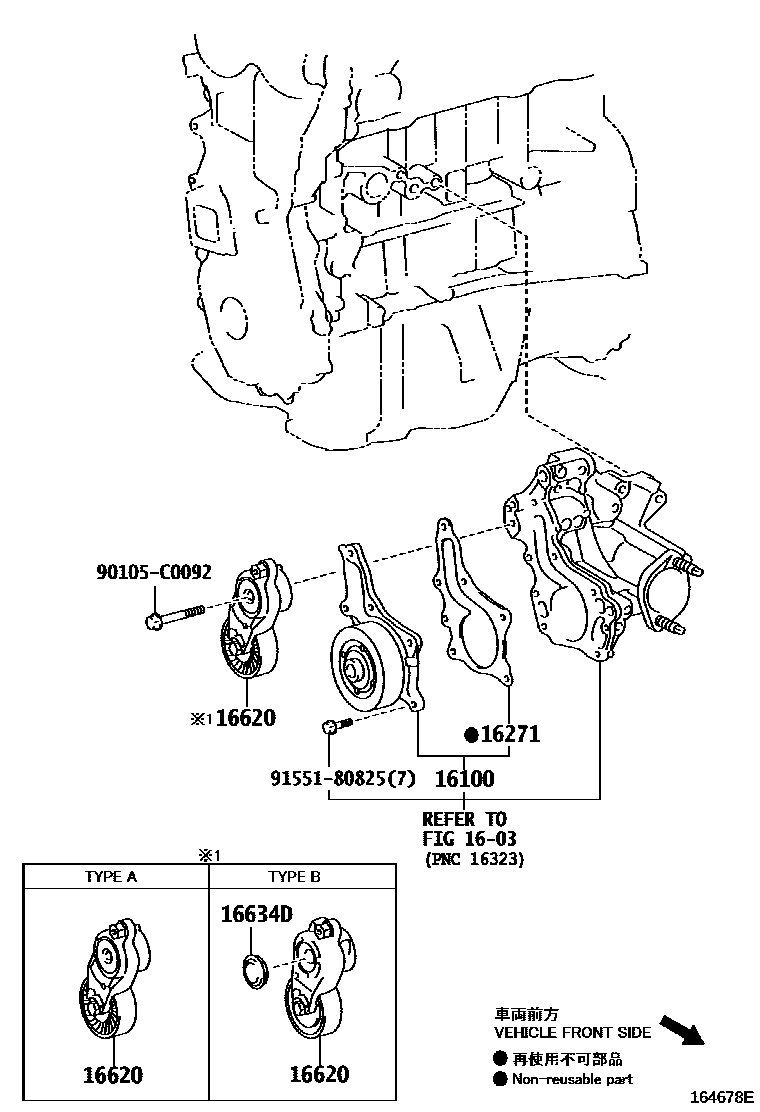

WATER PUMP

0001 1 0002 1 0003 1 0004 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-09600i5ARFE..ASV50201112-201501

sub16100-09601

main16100-09660i6ARFSE..ASV51201501

main16100-0H040i1AZFE..ACV51201112-201501

sub16100-0H050

main161A0-39025i4ARFXE..AVV50201205-201501

16271GASKET, WATER PUMP

main16271-0V010i6ARFSE..ASV51201501

main16271-36010i5ARFE..ASV50201112-201501

main16271-36020i4ARFXE..AVV50201205-201501

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0H020i1AZFE..ACV51201112-201301

sub16620-0H021

main16620-0H021i1AZFE..ACV51201301-201501

main16620-0V040i5ARFE..ASV50201112-201305

sub16620-0V041

main16620-0V041i5ARFE..ASV50201305-201401

sub16620-0V042

main16620-0V042i5ARFE..ASV50201410-201711

TYPE A:REFER ILLUST.

main16620-0V042i5ARFE..ASV50201401-201410

main16620-0V050i5ARFE..ASV50201410-201508

TYPE B:REFER ILLUST.

sub16620-0V051

main16620-0V051i5ARFE..ASV50201509-201711

TYPE B:REFER ILLUST.

16634DCOVER, DUST

main16628-0V010i5ARFE..ASV50201410-201501

TYPE B:REFER ILLUST.

90105C0092

main90105-C0092

9155180825

main91551-80825

7 parts on this diagram · 4 diagrams in section
