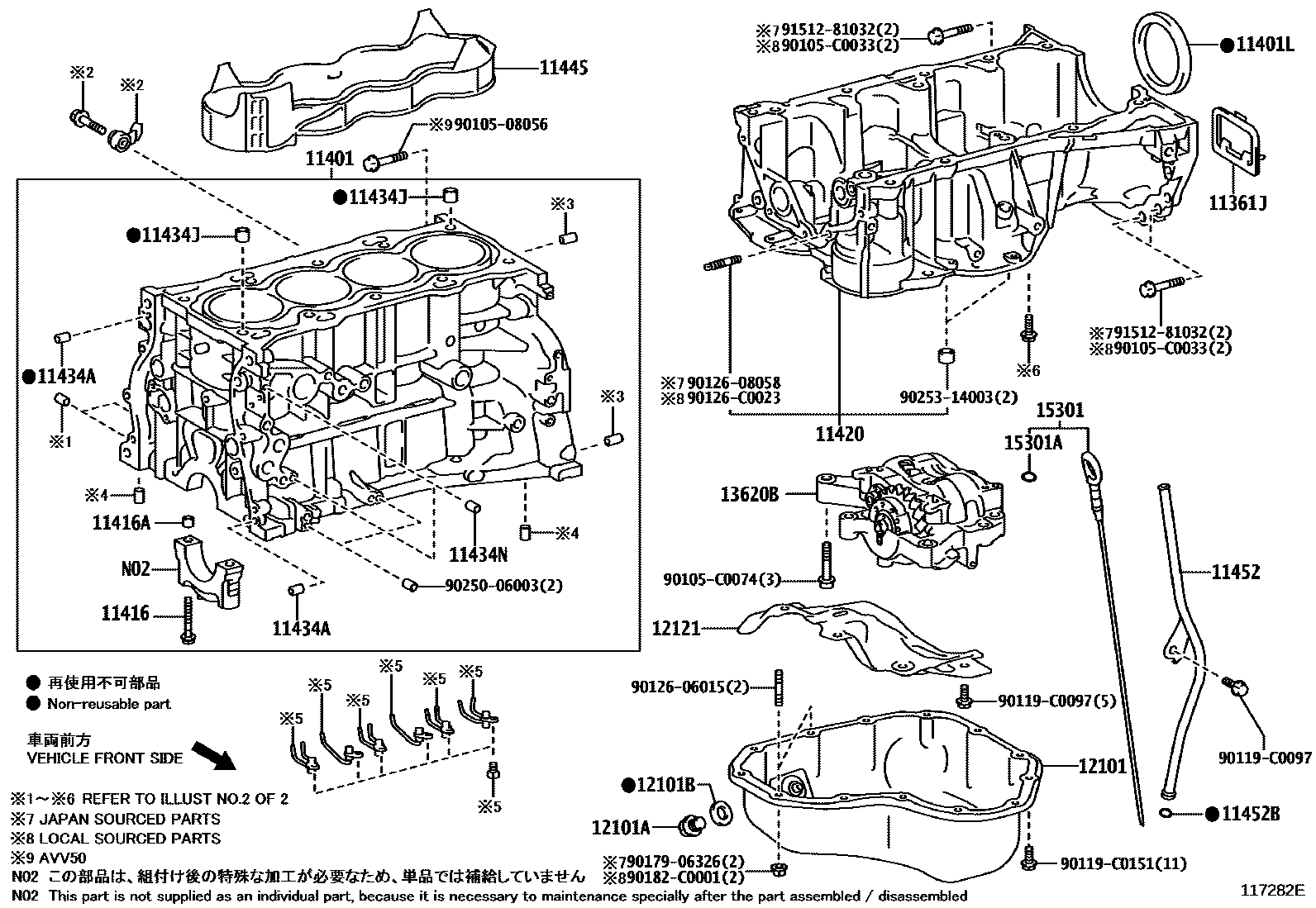

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
(L)
(J)
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
(J)
(L)
11420CRANKCASE ASSY, STIFFENING
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6
L=18,OD=8,(J)
L=18,OD=8
L=14,OD=6
L=18,OD=8,(L)
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11445SPACER, CYLINDER BLOCK WATER JACKET
(L)
(J)
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
(L)
(J)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
(J)
(L)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
(J)
(L)
12121PLATE, OIL PAN BAFFLE, NO.1
13620BBALANCER ASSY, ENGINE
(L)
(J)
15301ARING, O(FOR OIL LEVEL GAGE)
9010508056
main90105-08056
90105C0033
main90105-C0033
90105C0074
main90105-C0074
90119C0097
main90119-C0097
90119C0151
main90119-C0151
9012606015
main90126-06015
9012608058
main90126-08058
90126C0023
main90126-C0023
9017906326
main90179-06326
90182C0001
main90182-C0001
9025006003
main90250-06003
9025314003
main90253-14003
9151281032
main91512-81032
32 parts on this diagram · 6 diagrams in section
