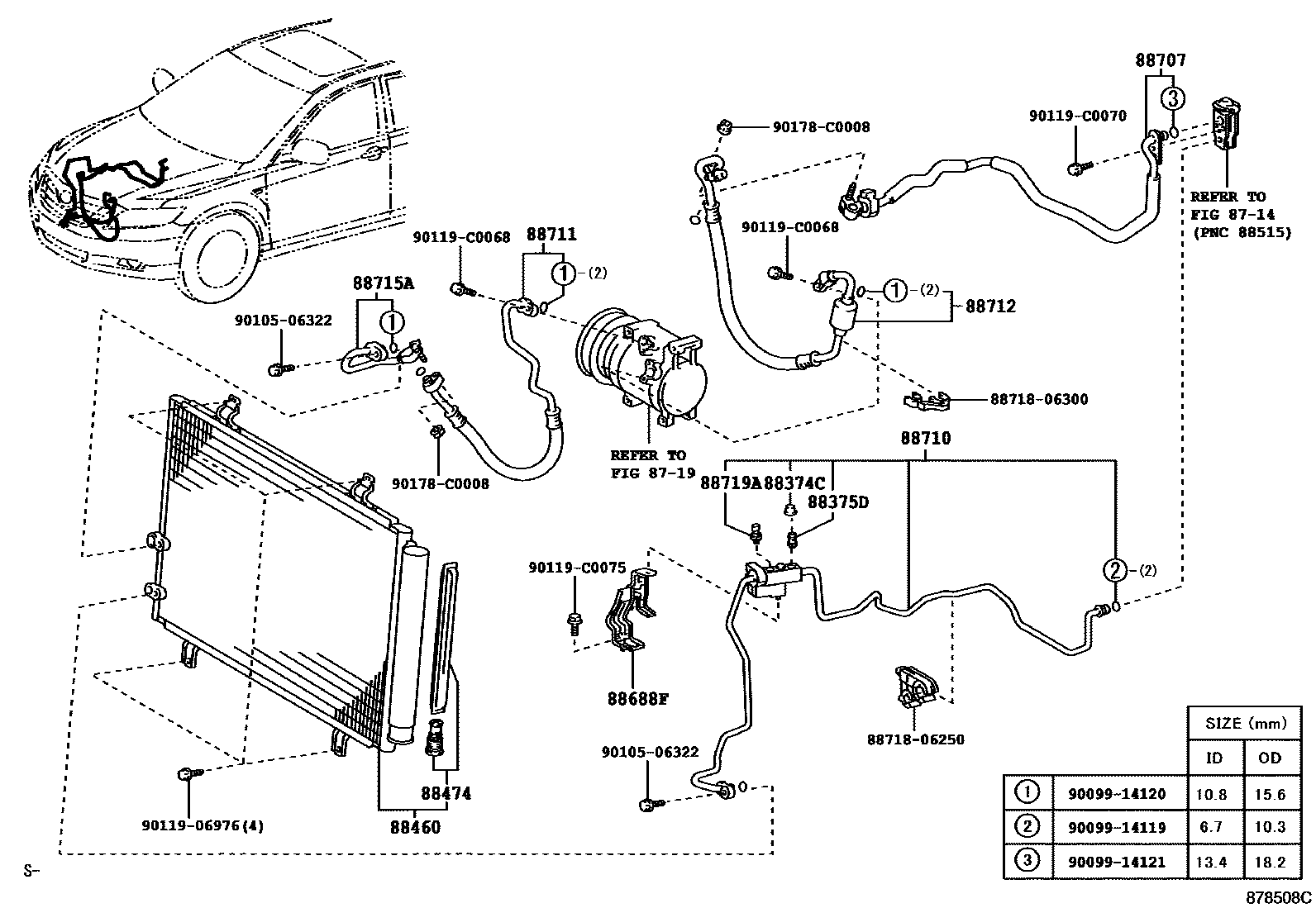

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714

8719

88374CVALVE, SERVICE, NO.2

main88374-30010iACV40200605-200903

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iACV40200605-200903

88460CONDENSER ASSY, COOLER

main88460-06220iACV4#200605-201505

main88460-33120iAHV41201003-201112

88474DRYER, COOLER

main88474-17010iACV40200605-200903

main88474-47020iAHV41201003-201112

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-06190iACV40200605-200903

88707PIPE SUB-ASSY, SUCTION

main88707-06080iACV40200605-200903

main88707-06110iAHV41201003-201112

88710TUBE ASSY, AIR CONDITIONER

main88710-06270iACV41200605-201001

sub88710-06271

main88710-06271iACV4#201001

main88710-06300iAHV41201003-201112

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-06340iACV40200605-200903

main88711-06400iAHV41201003-201112

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-06180iACV41200605-200903

main88712-06230iAHV41201003-201112

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-06080iACV40200605-201001

sub88715-06081

main88715-06081iACV4#201001

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iACV40200611-200903

8871806250PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-06250

8871806300PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-06300

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506322

main90105-06322

9011906976

main90119-06976

90119C0068

main90119-C0068

90119C0070

main90119-C0070

90119C0075

main90119-C0075

90178C0008

main90178-C0008
