HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL 0002 1AIR DUCT 0003 1SENSOR

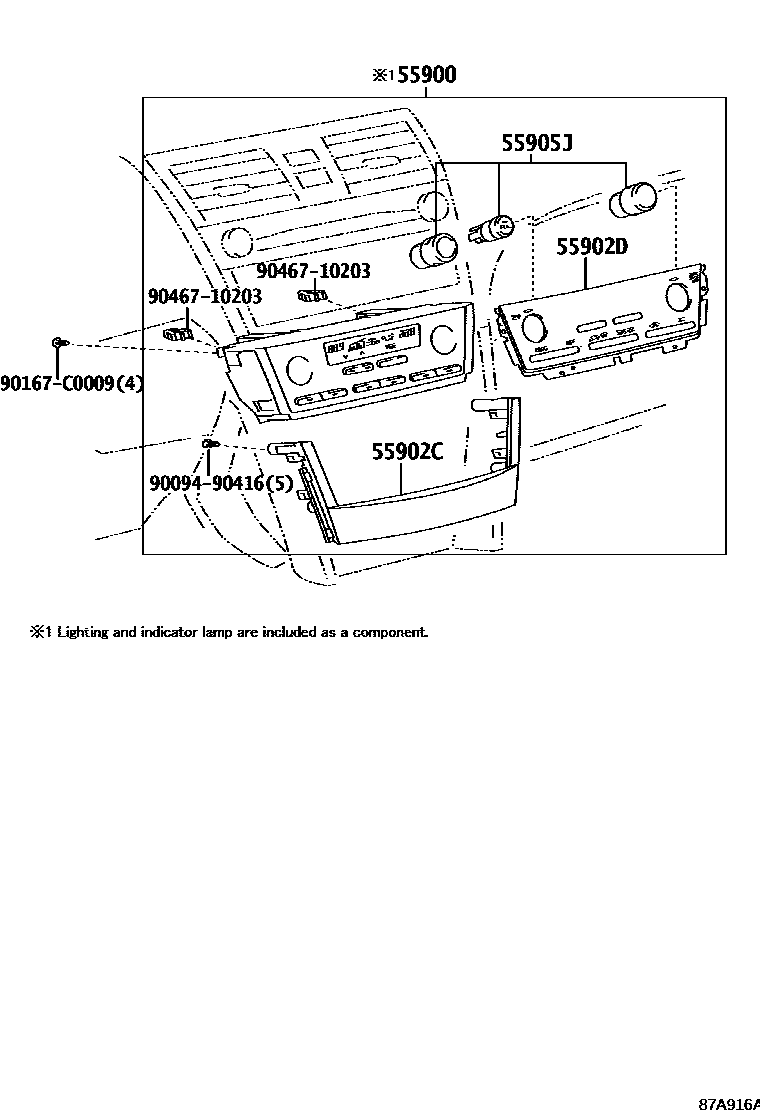

55900CONTROL ASSY, AIR CONDITIONER

main55900-06220iACV4#200605-200704

sub55900-06221

main55900-06221iACV4#200705-200903

main55900-06240iACV4#,AHV41200902-201410

sub55900-06241

main55900-06241iACV41201411-201505

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-06200iACV4#200605-200903

55902DPANEL SUB-ASSY, AIR CONDITIONER

main55902-06210iACV4#200605-200903

55905JKNOB SUB-ASSY, CONTROL

main55905-06170iACV4#200605-200705

main55905-06220iACV40200705-200903

9009490416

main90094-90416

90167C0009

main90167-C0009

9046710203

main90467-10203

7 parts on this diagram · 3 diagrams in section
