MIRROR
8106
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
WHITE PEARL CS.,070
SILVER ME.,1D4
GRAY ME.,1G3
BLACK,202
BEIGE ME.,4R0
BEIGE ME.,4T8
DK. GREEN MC.,6S7
DARK BLUE MC.,8P8
DK.BLUE MC.,8S6
LIGHT BLUE MICA METALLIC,8U8
WHITE PEARL CS.,070
SILVER ME.,1D4
GRAY ME.,1G3
BLACK,202
BLACK MC.,209
BEIGE ME.,4R0
BEIGE ME.,4T8
DK. GREEN MC.,6S7
DARK BLUE MC.,8P8
DK.BLUE MC.,8S6
87915ACOVER, OUTER MIRROR, RH
87917BMIRROR, OUTER REAR VIEW, RH
200G
87940MIRROR ASSY, OUTER REAR VIEW, LH
WHITE PEARL CS.,070
SILVER ME.,1D4
GRAY ME.,1G3
BLACK,202
BEIGE ME.,4R0
BEIGE ME.,4T8
DK. GREEN MC.,6S7
DARK BLUE MC.,8P8
DK.BLUE MC.,8S6
LIGHT BLUE MICA METALLIC,8U8
WHITE PEARL CS.,070
SILVER ME.,1D4
GRAY ME.,1G3
BLACK,202
BLACK MC.,209
BEIGE ME.,4R0
BEIGE ME.,4T8
DK. GREEN MC.,6S7
DARK BLUE MC.,8P8
DK.BLUE MC.,8S6
87945BCOVER, OUTER MIRROR, LH
87947BMIRROR, OUTER REAR VIEW, LH
200G
90178C0010
main90178-C0010

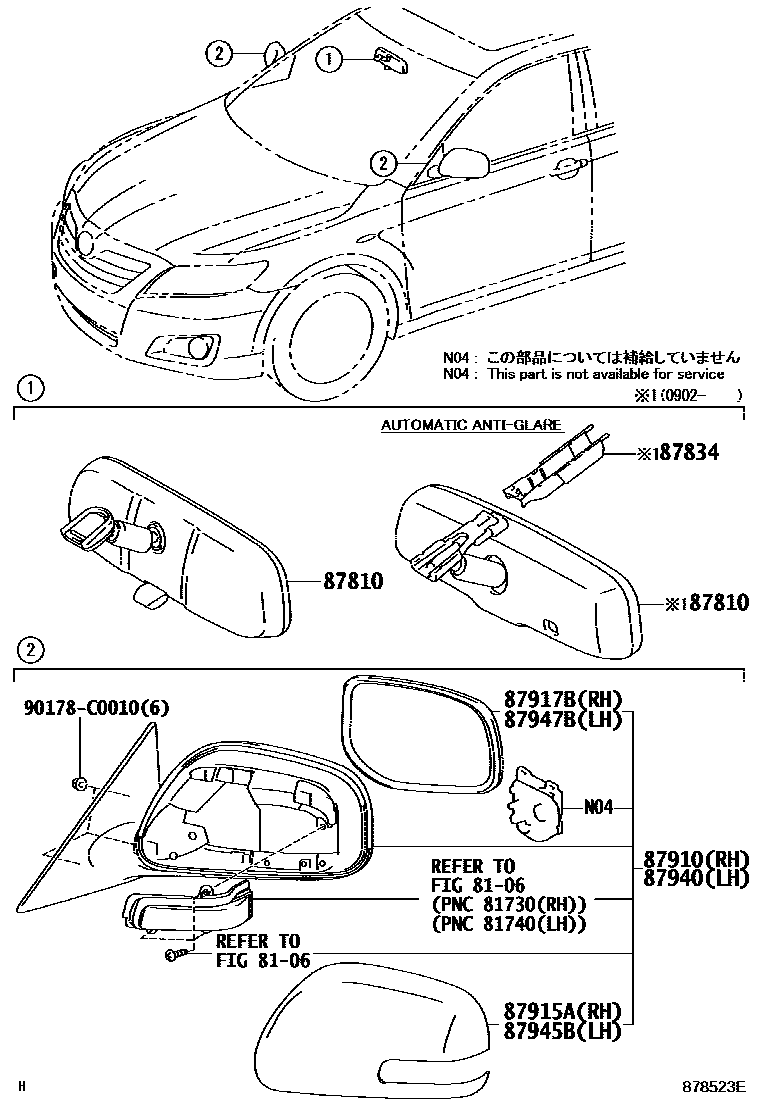

10 parts on this diagram · 1 diagram in section
