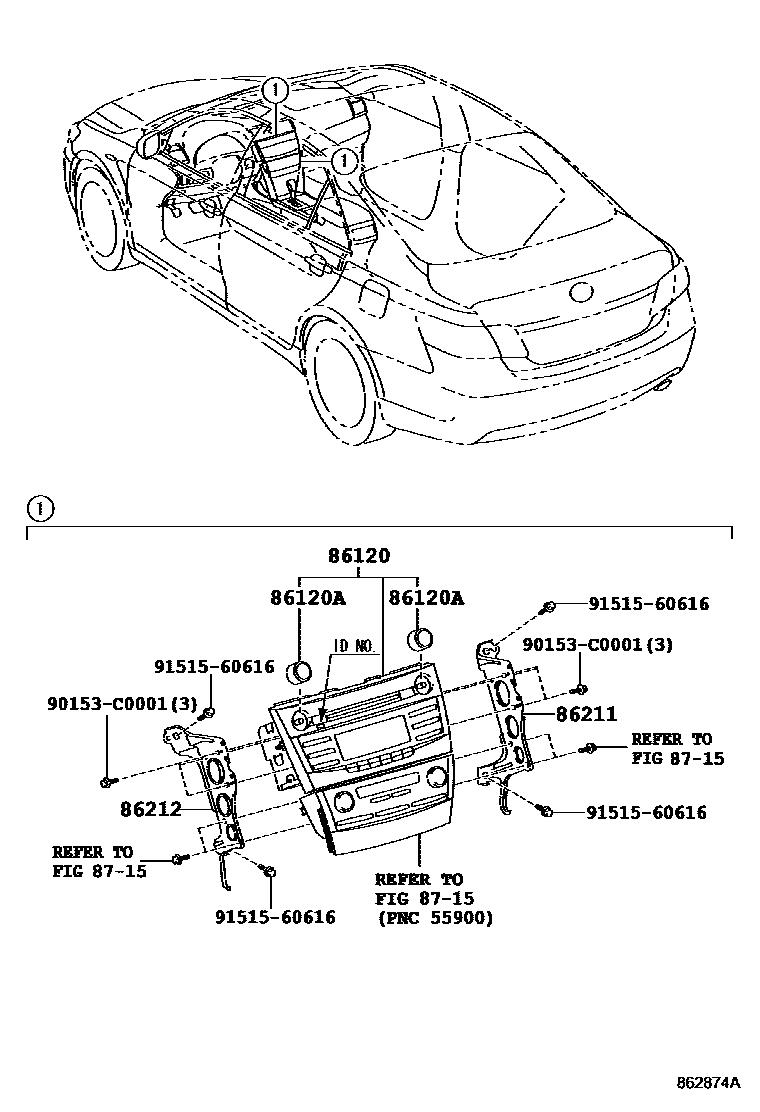

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-06250iACV41200605-200903

FUJITSU TEN,ID=12817

main86120-06260iACV40200605-200902

PIONEER,ID=P2818

main86120-06580iACV41200903-201505

FUJITSU TEN,ID=22805

main86120-06590iACV40..240G200902-201112

PIONEER,ID=P2863

main86120-YY120iAHV41201003-201112

MATSUSHITA,ID=78005

86120AKNOB, RADIO RECEIVER SWITCH

main90011-23013iACV4#..200E,240E200902

main90011-23013iACV41200605-200903

200G&NAVI PACKAGE

main90011-23013iACV40200605-200902

NAVI PACKAGE

main90011-23013iACV40..240G200902-201105

240V

main90011-23013iACV40..240G200902-201105

240V G-BOOK&NAVI PACKAGE&G-BOOK-WITH

main90011-23013iACV40..240G200902-201105

NAVI PACKAGE&G-BOOK-WITH

86211BRACKET, RADIO, NO.1

main86211-06070iACV4#200605-201505

86212BRACKET, RADIO, NO.2

main86212-06070iACV4#200605-201505

8715

90153C0001

main90153-C0001

9151560616

main91515-60616

7 parts on this diagram · 3 diagrams in section
