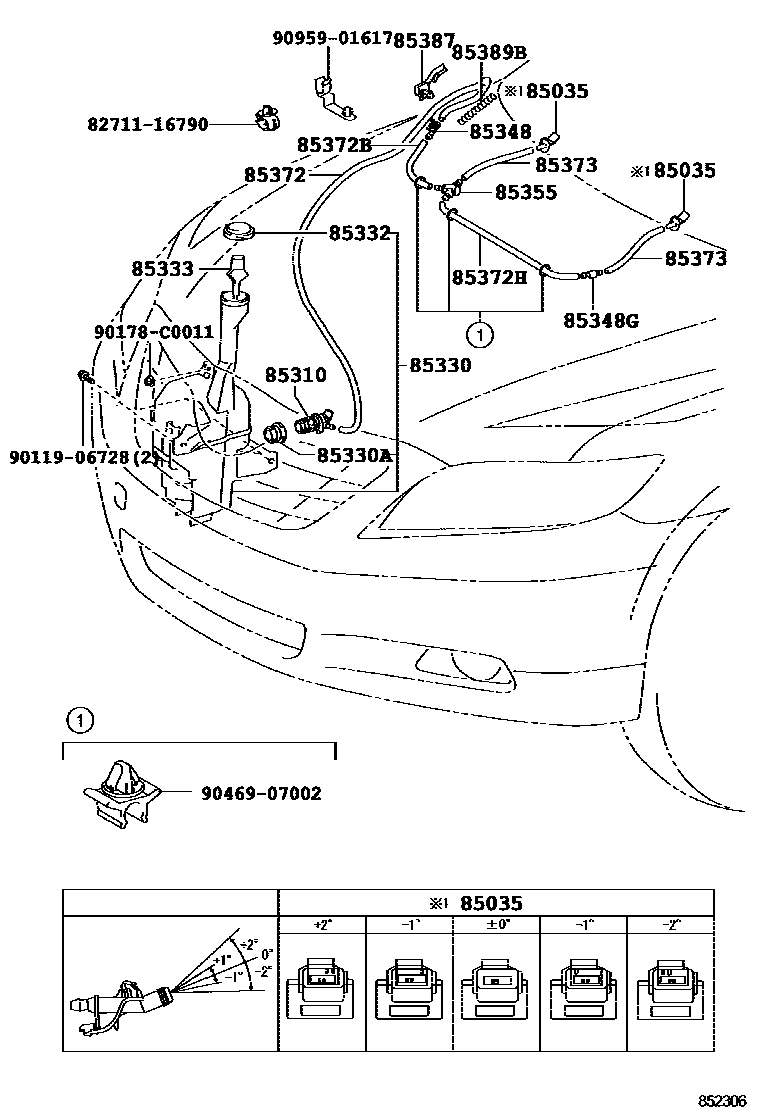

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE +1
ANGLE -1
ANGLE +2
ANGLE -2
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1530
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=410)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=660)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=240)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9011906728
90178C0011
main90178-C0011
9046907002
9095901617
20 parts on this diagram · 2 diagrams in section
