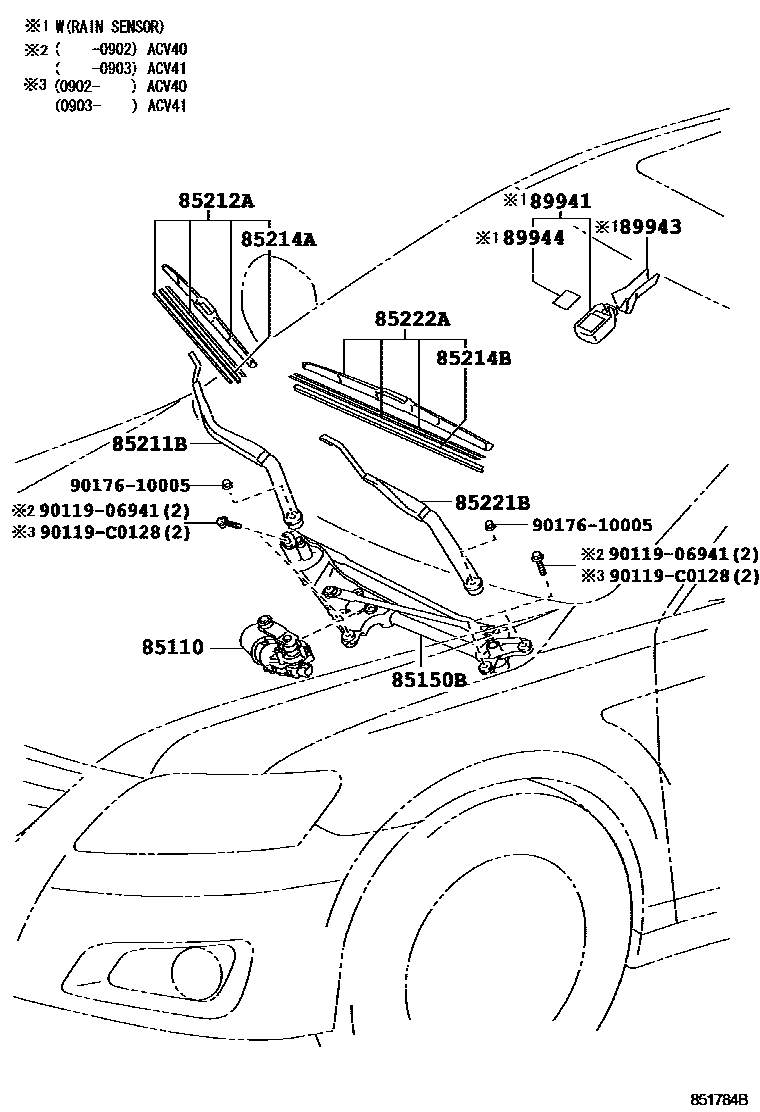

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-06110iACV40200605-200903

85150BLINK ASSY, WIPER

main85150-06110iACV40200605-200903

85211BARM, FRONT WIPER, RH

main85211-06100iACV41200605-200903

85212ABLADE, FR WIPER, RH

main85212-06120iACV4#,AHV41200904

main85212-53080iACV4#¥0200605-200701

sub85212-53081¥2,640

main85212-53081iACV40¥2,640200702-200904

85214ARUBBER, WIPER, RH

main85214-53090iACV41¥800200605-200903

85214BRUBBER, WIPER, LH

main85214-30380iACV4#,AHV41¥850200605-200903

85221BARM, FRONT WIPER, LH

main85221-06100iACV40200605-200903

85222ABLADE, FR WIPER, LH

main85222-06120iACV4#,AHV41200904-201201

sub85222-0N010

main85222-0N010iACV41201202

main85222-33250iACV41¥4,070200605-200904

89941SENSOR, RAIN

main89941-42010iAHV41¥13,800201003-201112

89943COVER, RAIN SENSOR

main89943-42010iAHV41¥1,680201003-201112

89944TAPE, RAIN SENSOR

main89944-42010iAHV41¥1,490201003-201112

9011906941

main90119-06941¥80

90119C0128

main90119-C0128

9017610005

main90176-10005¥110

14 parts on this diagram · 1 diagram in section
