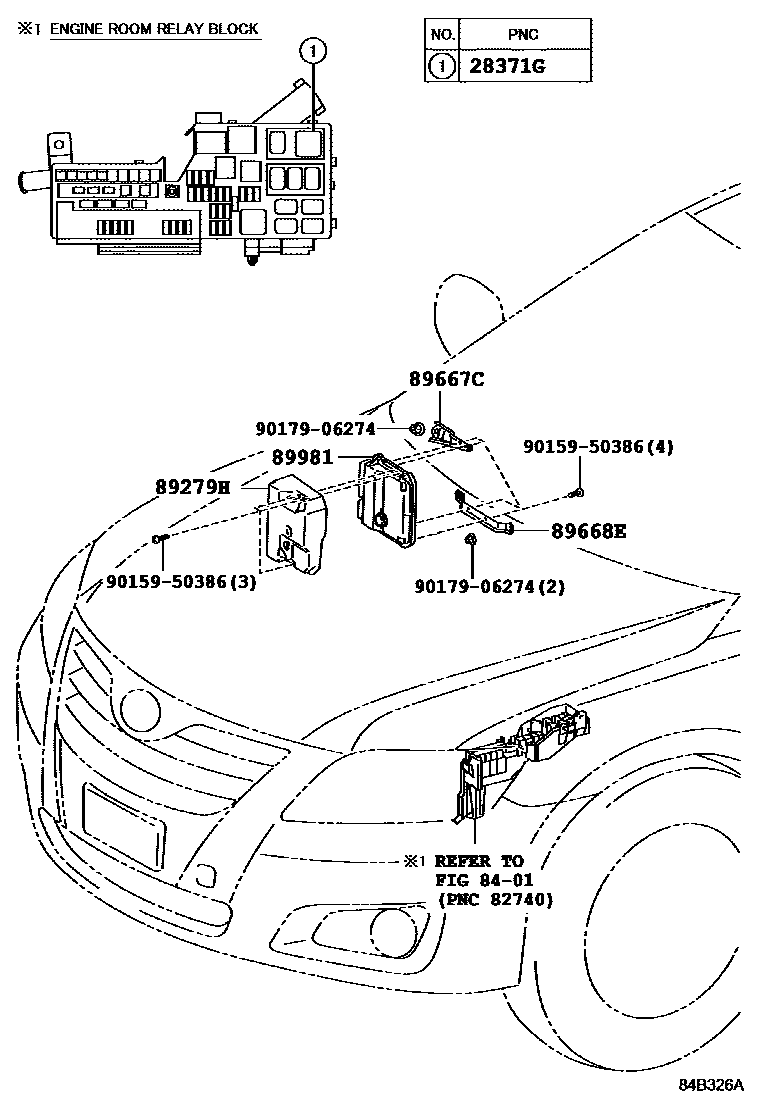

HEV CONTROL COMPUTER

28371GRELAY, IGNITION CONTACT

main90987-T2004i3AZFXE..AHV41201003-201112

8401

89279HCOVER, COMPUTER

main89279-33010iAHV41201003-201112

89667CBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-33140iAHV41201003-201112

89668EBRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-33190iAHV41201003-201112

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-33100iAHV41201003-201112

sub89981-33101

9015950386

main90159-50386

9017906274

main90179-06274

8 parts on this diagram · 1 diagram in section
