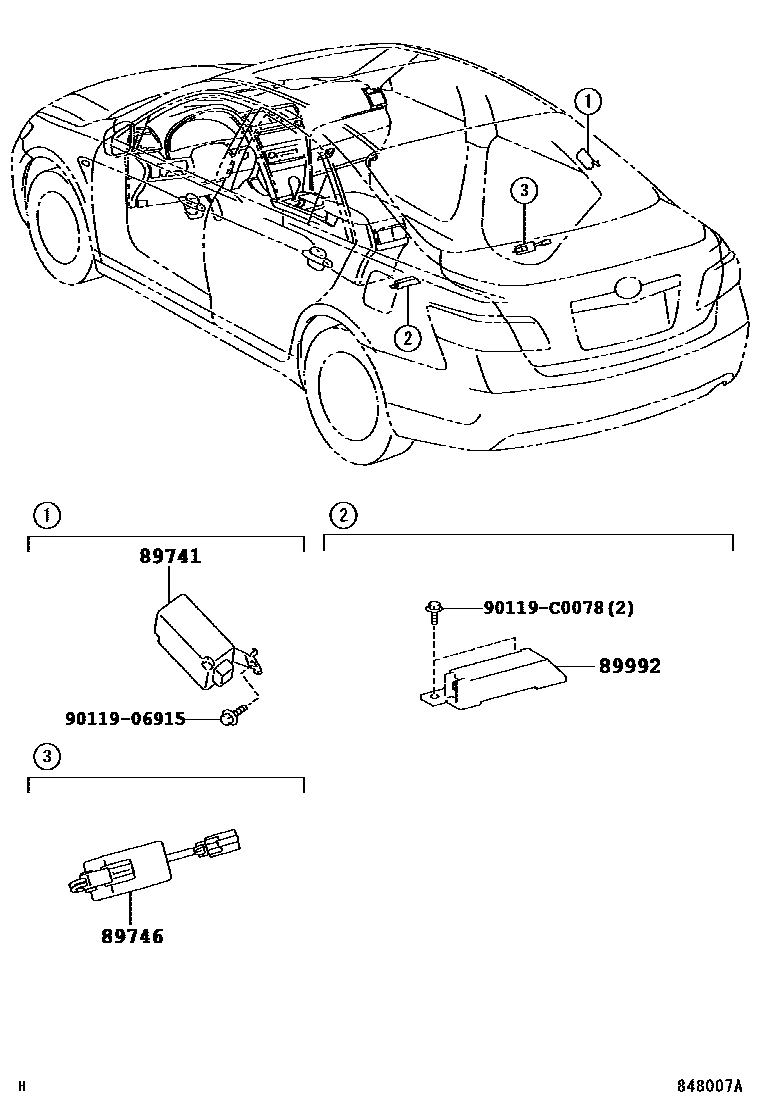

WIRELESS DOOR LOCK

0001 1 0002 1W(SMART ENTRY)

89741RECEIVER, DOOR CONTROL

main89740-06011iAHV41201003-201112

main89741-06030iACV40200605-200902

main89741-06031supersedes 89741-06031iACV4#..200E,240E200902

main89740-06010supersedes 89741-06031iACV40..240G200605-200902

240V

89746FILTER, WIRELESS DOOR LOCK

main89746-33090×2supersedes 89746-33090iAHV41201003-201112

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-06050iAHV41201003-201112

NO.1

main89992-06060iAHV41201003-201112

NO.2

main89992-06070supersedes 89992-06080iAHV41201003-201112

NO.3

main89992-06080iACV4#..200E,240E200902-201011

9011906915

main90119-06915

90119C0078

main90119-C0078

5 parts on this diagram · 2 diagrams in section
