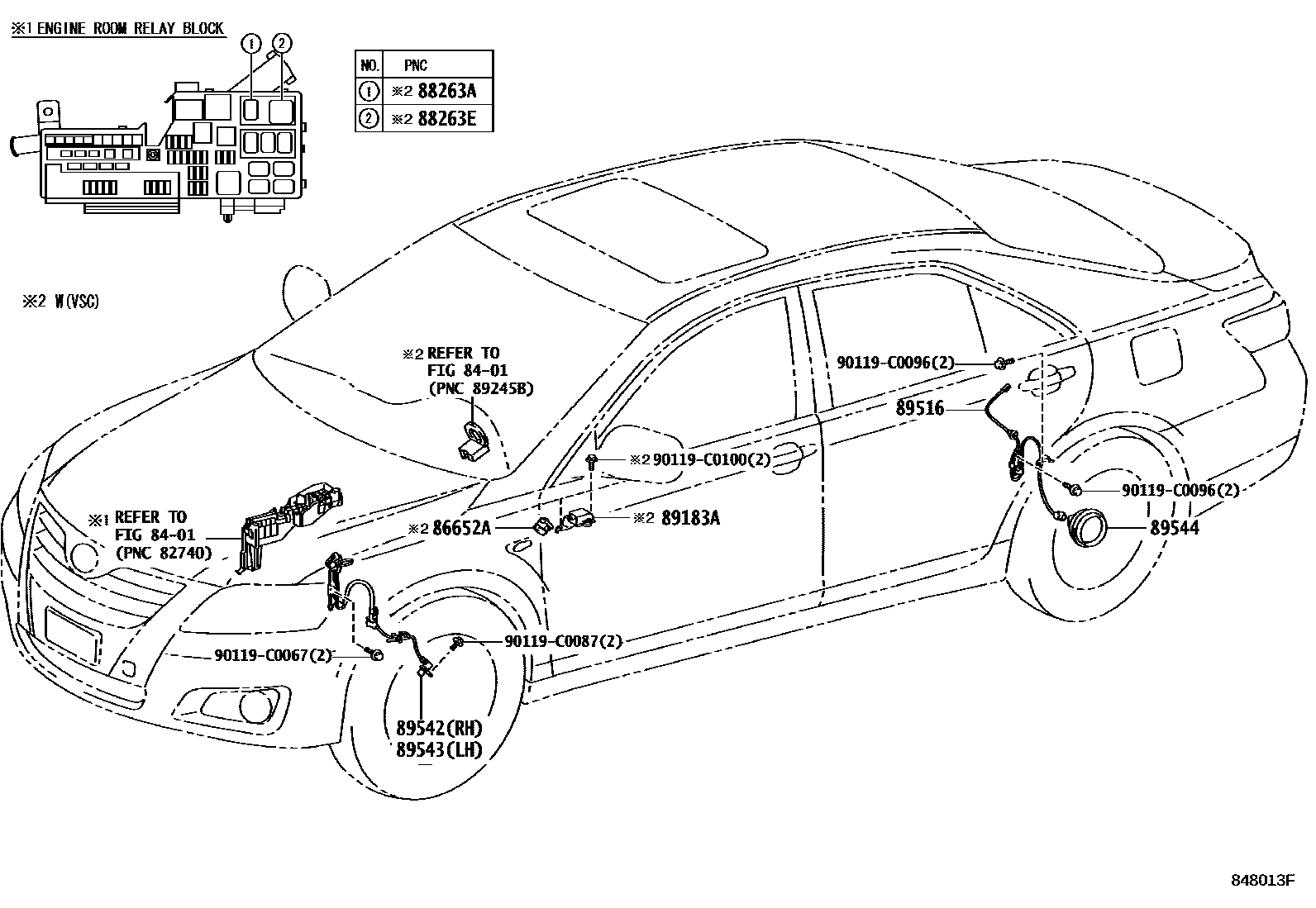

ABS & VSC

0001 1 0003 1 0005 1

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-48010iACV40..240G200810-201112

88263ARELAY, SKID CONTROL

main88263-32070iACV40..240G200810-201112

88263ERELAY, SKID CONTROL NO.2

main88263-21010iACV40..240G200810-201112

89183ASENSOR, YAWRATE

main89180-33050iACV40..240G200810-201112

main89180-33060iAHV41201003-201112

89516WIRE, SKID CONTROL SENSOR

main89516-06050iACV40200605-200903

RH

main89516-06060iACV40200605-200903

LH

main89516-06130iACV4#,AHV41200902

RH

main89516-06140iACV4#,AHV41200902

LH

89542SENSOR, SPEED, FRONT RH

main89542-06030iACV4#200605-201505

89543SENSOR, SPEED, FRONT LH

main89543-06030iACV40200605-201505

89544SENSOR, SKID CONTROL

main89544-48010iACV4#200605-200903

90119C0067

main90119-C0067

90119C0087

main90119-C0087

90119C0096

main90119-C0096

90119C0100

main90119-C0100

13 parts on this diagram · 3 diagrams in section
