SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1COWL 0009 1COWL 0011 1INSTRUMENT PANEL 0013 1INSTRUMENT PANEL 0015 1STEERING 0016 1SEAT 0017 1DOOR,ROOF,FLOOR & LUGGAGE

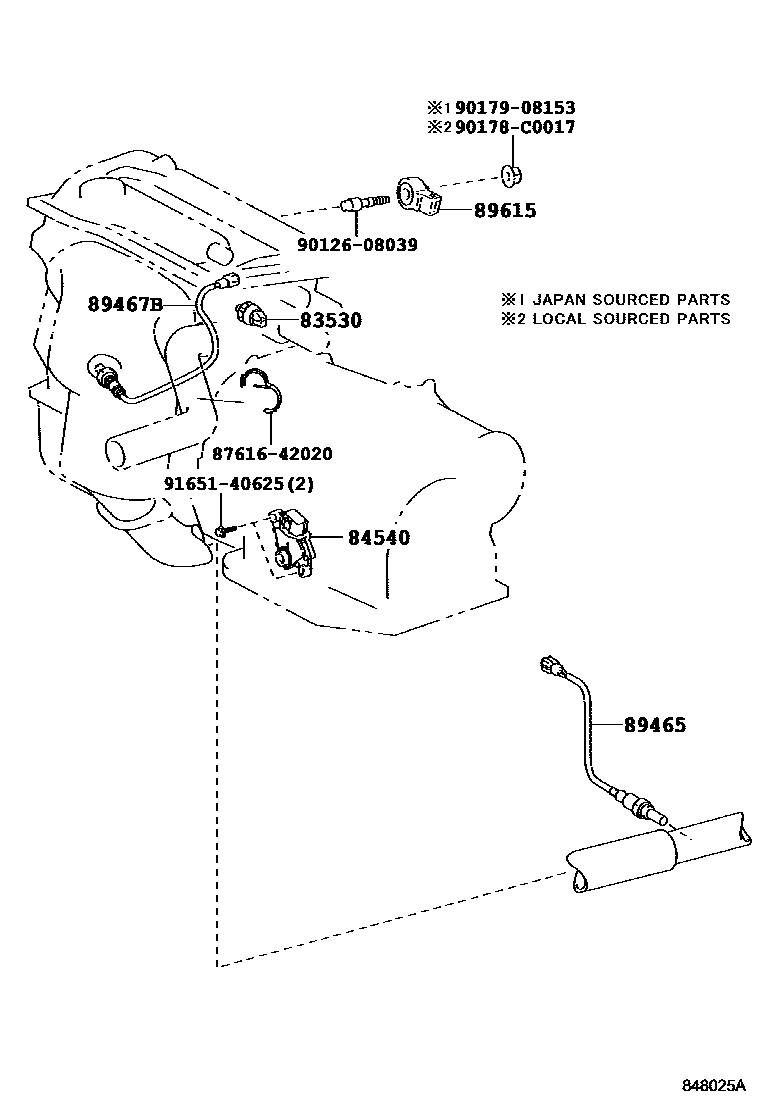

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iACV40200605-200903

DENSO

main83530-60020iACV4#,AHV41200605-200903

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-48010iACV4#200605-201505

89465SENSOR, OXYGEN

main89465-06240iACV4#200605-201204

main89465-06310iACV41201204-201505

89467BSENSOR, AIR FUEL RATIO

main89467-06080iACV4#200712-201011

main89467-06090iAHV41201003-201112

main89467-06150iACV4#201011

main89467-33080iACV4#200605-200712

89615SENSOR, KNOCK CONTROL

main89615-20090iACV40200605-200903

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9012608039

main90126-08039

90178C0017

main90178-C0017

9017908153

main90179-08153

9165140625

main91651-40625

10 parts on this diagram · 13 diagrams in section
