WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1ENGINE 0005 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0009 1DOOR 0010 1FLOOR & ROOF 0011 1FLOOR & ROOF 0012 1HIGH-TENSION CABLE 0013 1SEAT 0014 1CLAMP & BRACKET 0015 1CABLE BOND 0016 1CONNECTOR 1/2 0017 1CONNECTOR 2/2

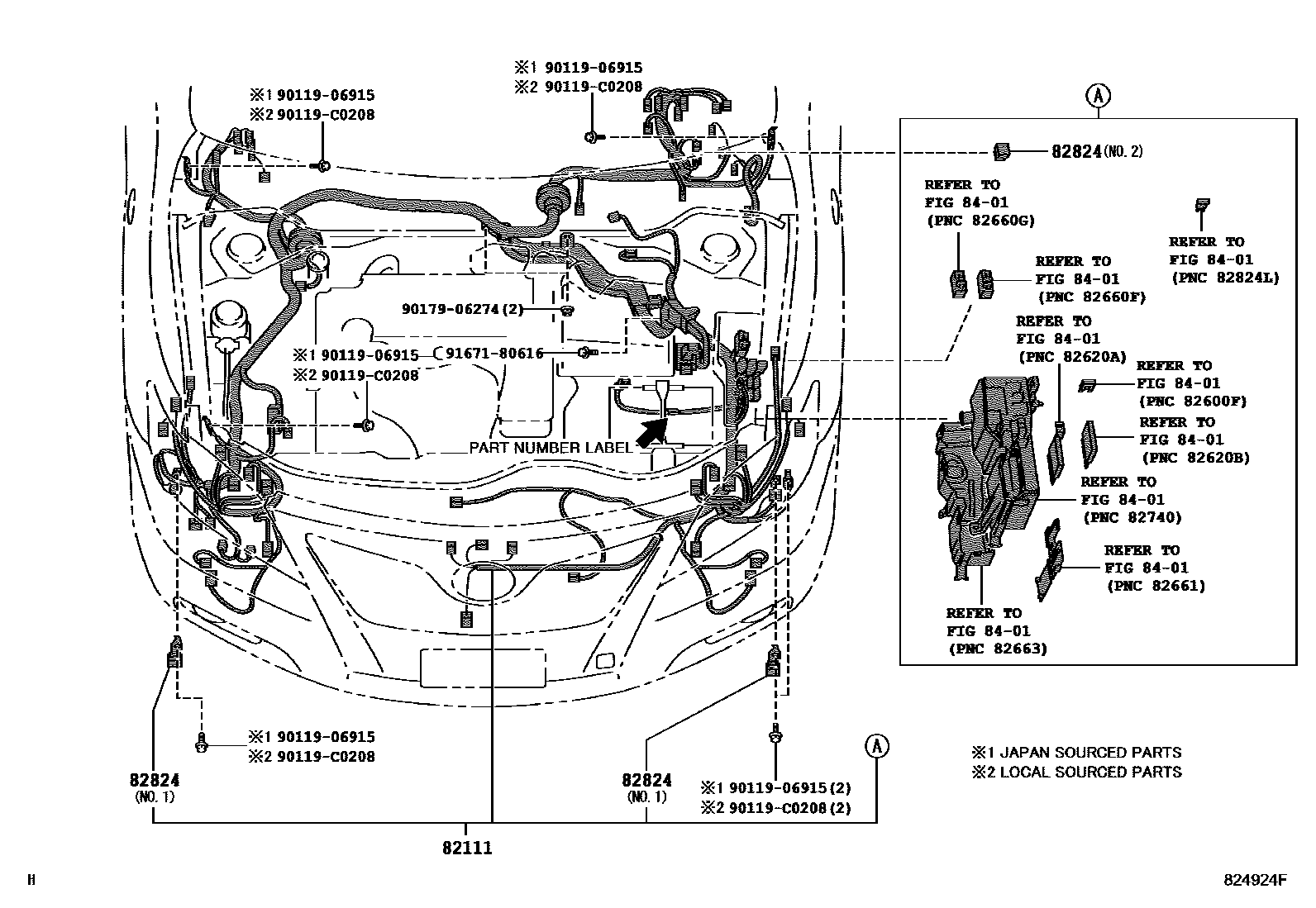

82111WIRE, ENGINE ROOM MAIN

main82111-06L20iACV40..240E200605-200804

main82111-06L21iACV40..240E200804-200902

main82111-06L30iACV40..240G200605-200804

main82111-06L31iACV40..240G200804-200810

main82111-06L40iACV40..240G200605-200804

240V

main82111-06L41iACV40..240G200804-200902

240V

main82111-06L50iACV41200605-200804

main82111-06L51iACV41200804-200903

main82111-06L60iACV41200605-200804

200G

main82111-06L61iACV41200804-200810

200G

main82111-06S90iAHV41201003-201112

main82111-06T00iAHV41201003-201112

240V

main82111-06U30iACV40..240E200902-201112

main82111-06U40iACV40..240G200902-201002

main82111-06U50iACV40..240G200902-201011

240V

main82111-06U50iACV40..240G200902-201002

240V G-BOOK

main82111-06U50iACV40..240G201002-201011

240V G-BOOK&NAVI PACKAGE

main82111-06U51iACV40..240G201011-201112

240V G-BOOK&NAVI PACKAGE

main82111-06U51iACV40..240G201011-201112

240V

main82111-06U60iACV41200903-201505

main82111-06U70iACV41200903-201002

200G

main82111-06U71iACV41201002-201203

200G

main82111-06U80iACV40..240G200810-200902

main82111-06U90iACV41200810-200903

200G

main82111-06V70iACV40..240G201002-201011

main82111-06V71iACV40..240G201011-201112

main82111-06Y10iACV40..240G201002-201112

VALUE PACKAGE

main82111-06Y20iACV41201002-201203

200G&VALUE PACKAGE

82824CONNECTOR, WIRING HARNESS

main82824-33200iAHV41¥3,720201003-201112

NO.2

main82824-48020iACV40¥1,990200605-200903

NO.1

main82824-52280iACV40¥1,850200605-200903

NO.2

8401

9011906915

main90119-06915¥60

90119C0208

main90119-C0208

9017906274

main90179-06274¥70

9167180616

main91671-80616¥60

7 parts on this diagram · 15 diagrams in section
