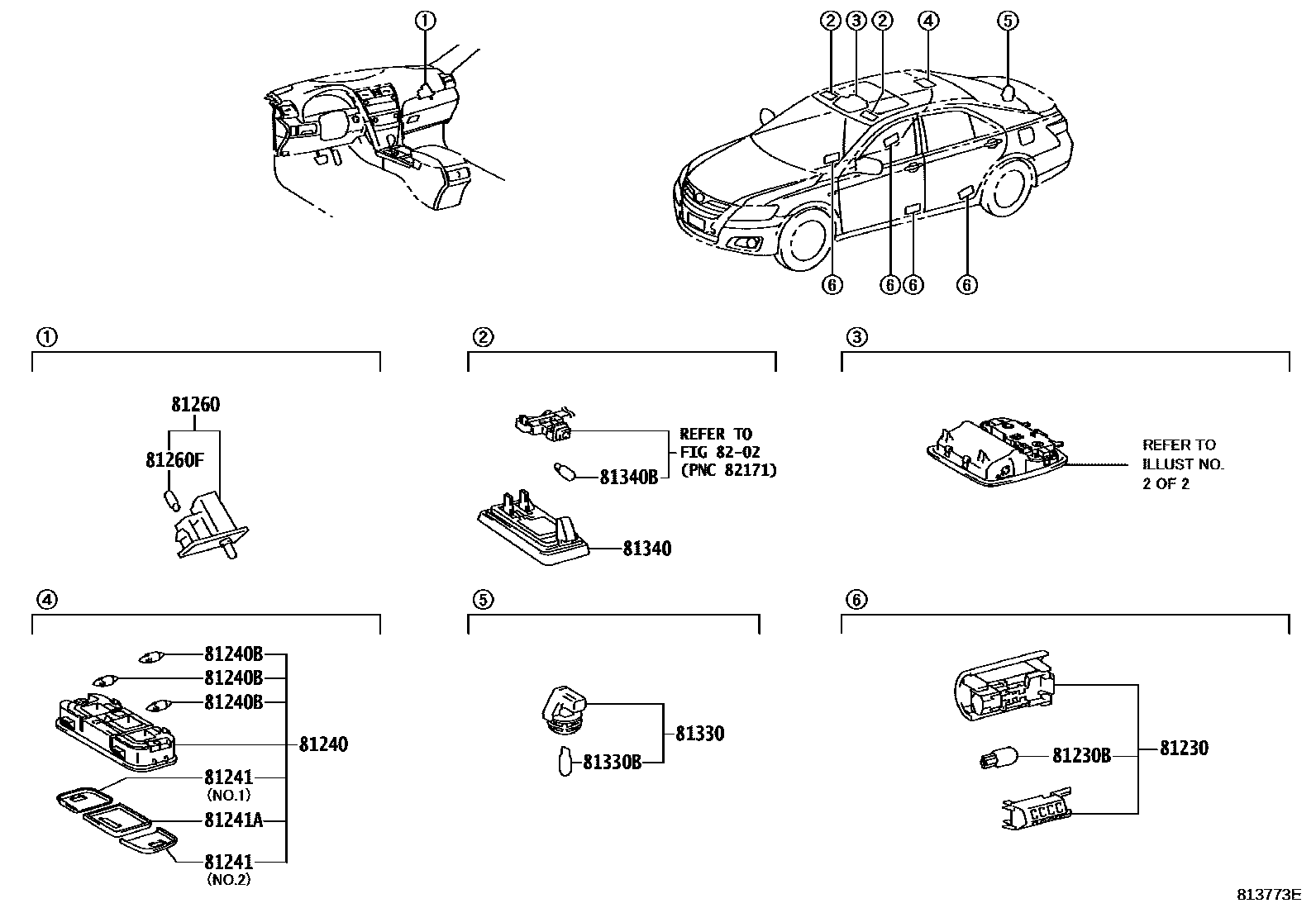

INTERIOR LAMP

0001 1 0002 1

81230LAMP ASSY, COURTESY

main81230-06020×4iACV41200605-200903

81230BBULB(FOR COURTESY LAMP)

main90981-12010×4iACV40200605-200902

12V 5W

main90981-CC001×4iACV4#,AHV41200912

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-06060-B0iACV4#200605-200903

GRAY,TRIM2#

main81240-06060-E0iACV4#200605-200903

GREGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14004×3iACV40200605-200902

12V 8W

main90981-14011×3iACV4#,AHV41200902

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-06060iACV40200605-200902

NO.1

main81242-06060iACV40200605-200902

NO.2

81241ALENS, ROOM LAMP, NO.2

main81243-06060iACV4#,AHV41200902

81260LAMP ASSY, GLOVE BOX

main81260-0P010iACV4#200804-200903

main81260-33030iACV4#200605-200803

81260FBULB(FOR GLOVE BOX LAMP)

main90981-11018iACV4#,AHV41200902

12V 1.2W W/O SOCKET

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-0D010iACV41200605-200903

sub81330-0D040

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iACV40200605-200902

12V 3.8W

81340LAMP ASSY, VANITY

main81340-0N010-B1×2supersedes 81340-0N010-B1iACV40200605-200902

GRAY,TRIM2#

main81340-0N010-E0×2iACV41200605-200903

GREGE,TRIM4#

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iACV4#,AHV41200902-201505

12V 8W

8202

13 parts on this diagram · 2 diagrams in section
