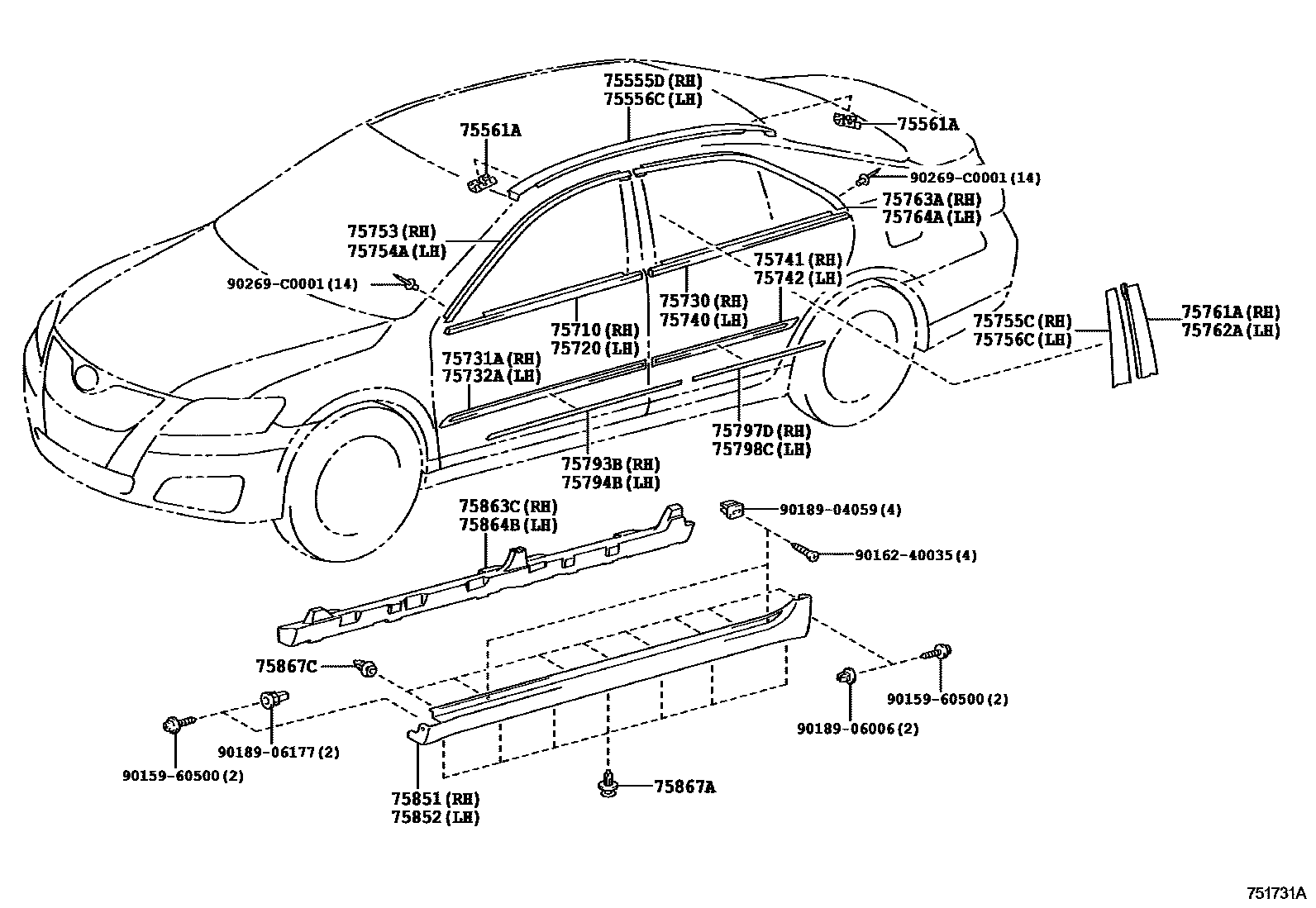

SIDE MOULDING
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
PAINT REQ.
75732AMOULDING, FRONT DOOR, OUTSIDE LH
PAINT REQ.
75740MOULDING ASSY, REAR DOOR BELT, LH
75741MOULDING, REAR DOOR, OUTSIDE RH
PAINT REQ.
75742MOULDING, REAR DOOR, OUTSIDE LH
PAINT REQ.
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
NO PAINT REQ.
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75793BINSERT, FRONT DOOR OUTSIDE MOULDING, RH
75794BINSERT, FRONT DOOR OUTSIDE MOULDING, LH
75797DINSERT, REAR DOOR OUTSIDE MOULDING, RH
75798CINSERT, REAR DOOR OUTSIDE MOULDING, LH
75851MOULDING, ROCKER PANEL, RH
75852MOULDING, ROCKER PANEL, LH
75863CPROTECTOR, ROCKER PANEL MOULDING, NO.3
75864BPROTECTOR, ROCKER PANEL MOULDING, NO.4
75867ACLIP, ROCKER PANEL MOULDING
(L)
(J)
75867CCLIP, ROCKER PANEL MOULDING
9015960500
main90159-60500
9016240035
main90162-40035
9018904059
main90189-04059
9018906006
main90189-06006
9018906177
main90189-06177
90269C0001
main90269-C0001
35 parts on this diagram · 1 diagram in section
