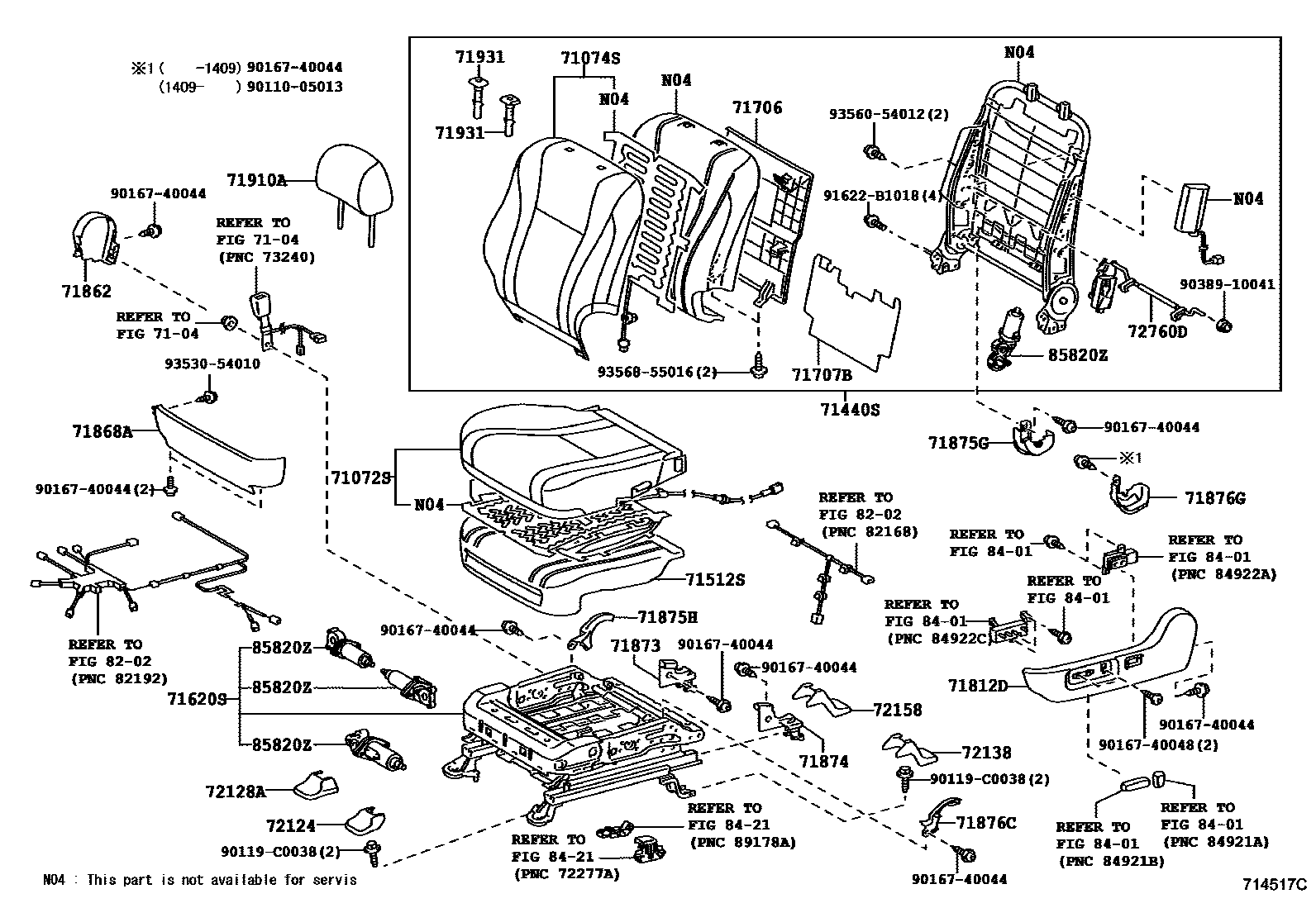

FRONT SEAT & SEAT TRACK

0001 1W(SRS SIDE AIR BAG),LH POWER 0002 1W(SRS SIDE AIR BAG),RH POWER 0003 1LH POWER SEAT 0004 1RH POWER SEAT 0005 1LH SEAT 0006 1RH SEAT

7104

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-06770-E0iACV40..240E200605-200903

GREGE,TRIM4#

sub71072-06L50

main71072-06790-C0iACV40..240G200605-200902

BLACK,TRIM2#

sub71072-06C10

main71072-06790-E0iACV40..240G200605-200912

GREGE,TRIM4#

sub71072-06C10

main71072-06A30-E0iACV4#..200E,240E200902-201102

GREGE,TRIM4#

sub71072-06A31

main71072-06A31-E0iACV4#..200E,240E201103-201505

GREGE,TRIM4#

main71072-06C10-E0iACV40,AHV41..240G,HBD200912-201102

200G,GREGE,TRIM4#

sub71072-06C11

main71072-06C10-E0iACV40,AHV41..240G,HBD200912-201102

LEATHER PACKAGE,GREGE,TRIM4#

sub71072-06C11

main71072-06C10-E0iACV41200912-201102

GREGE,TRIM4#

sub71072-06C11

main71072-06C11-E0iACV40,AHV41..240G,HBD201103-201112

GREGE,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-06750-E0iACV40..240E200605-200903

GREGE,TRIM4#

sub71074-06N00

main71074-06780-C0iACV40..240G200605-200706

BLACK,TRIM2#

sub71074-06781

main71074-06780-C0iACV40..240G200605-200706

200G,BLACK,TRIM2#

sub71074-06781

main71074-06780-E0iACV41200605-200706

GREGE,TRIM4#

sub71074-06781

main71074-06780-E0iACV40..240G200605-200706

200G,GREGE,TRIM4#

sub71074-06781

main71074-06790-C0iACV40..240G200706-200902

BLACK,TRIM2#

sub71074-06L60

main71074-06790-E0iACV40..240G200706-201009

GREGE,TRIM4#

sub71074-06L60

main71074-06B00-E0iACV4#..200E,240E200902-201102

GREGE,TRIM4#

sub71074-06B01

main71074-06B01-E0iACV4#..200E,240E201103-201304

GREGE,TRIM4#

main71074-06L60-E0iACV40,AHV41..240G,HBD201010-201102

200G,GREGE,TRIM4#

sub71074-06L61

main71074-06L60-E0iACV40,AHV41..240G,HBD201010-201102

GREGE,TRIM4#

sub71074-06L61

main71074-06L61-E0iACV40,AHV41..240G,HBD201103-201112

GREGE,TRIM4#

main71074-YL010-E0iACV41201304-201505

GREGE,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-06781-C0iACV40..240G200706-200902

BLACK,TRIM2#

sub71440-06782

main71440-06781-E0iACV40..240G200706-201011

GREGE,TRIM4#

sub71440-06782

main71440-06782-E0iACV40..240G201010-201102

GREGE,TRIM4#

sub71440-06783

main71440-06782-E0iACV40..240G201010-201102

200G,GREGE,TRIM4#

sub71440-06783

main71440-06783-E0iACV40,AHV41..240G,HBD201103-201112

GREGE,TRIM4#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-06220iACV40..240E200605-201505

main71512-06230iACV40..240G200605-201112

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-06140iACV41200605-201312

sub71620-06141

sub73214-75010

main71620-06141iACV41201312-201505

main71620-06150iACV40..240G200605-200703

200G

sub71620-06151

main71620-06151iACV40..240G200704-201112

sub71620-06152

sub73214-75010

main71620-06240iAHV41201003-201112

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-06080-C0iACV40..240G200605-200903

BLACK,TRIM2#

main71705-06080-E0iACV40200605-201304

GREGE,TRIM4#

71707BCOVER SUB-ASSY, FRONT SEATBACK BOARD

main71707-06050-C0iACV40..240G200605-200903

BLACK,TRIM2#

main71707-06050-E0iACV41200605-201304

GREGE,TRIM4#

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-06180-E0iACV4#..200E,240E200605-201505

GREGE,TRIM4#

main71812-06190-C0iACV40..240G200605-200902

BLACK,TRIM2#

main71812-06190-E0iACV40,AHV41..240G,HBD200605-201112

GREGE,TRIM4#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-06120-E0iACV4#..200E,240E200605-201505

GREGE,TRIM4#

main71862-06130-C0iACV40..240G200605-200902

BLACK,TRIM2#

sub71862-06130

main71862-06130-E0iACV40,AHV41..240G,HBD200605-201112

GREGE,TRIM4#

sub71862-06130

71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

main71868-06060-C0iACV40..240G200605-200902

BLACK,TRIM2#

main71868-06060-E0iACV40..240G200605-201112

GREGE,TRIM4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-06280iACV40..240G200605-201505

main71873-06280iACV41200605-200903

200G

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06240iACV40..240G200605-201505

main71874-06240iACV41200605-200903

200G

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-06340iACV4#,AHV41200605-201505

71875HCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-06220-E0iACV41200605-201505

GREGE,TRIM4#

main71875-06240-C0iACV40..240G200605-200902

BLACK,TRIM2#

sub71875-06240

main71875-06240-E0iACV40,AHV41..240G,HBD200605-201112

GREGE,TRIM4#

sub71875-06240

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-06270-C0iACV40..240G200605-200902

BLACK,TRIM2#

sub71876-06270

main71876-06270-E0iACV40,AHV41..240G,HBD200605-201112

GREGE,TRIM4#

sub71876-06270

main71876-06340-E0iACV41200605-201505

GREGE,TRIM4#

71876CCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-06270-C0iACV40..240G200605-200902

BLACK,TRIM2#

sub71876-06270

main71876-06270-E0iACV40..240G200605-201112

GREGE,TRIM4#

sub71876-06270

main71876-06340-E0iACV40..240E200605-201505

GREGE,TRIM4#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-06230iACV40,AHV41..240G,HBD200605-201112

main71876-06370iACV41200605-201505

71910AHEADREST ASSY, FRONT SEAT

main71910-06450-E0iACV4#..200E,240E200605-200705

GREGE,TRIM4#

sub71910-06450

sub71910-06F50

main71910-06450-E1iACV40..240E200705-201505

GREGE,TRIM4#

sub71910-06450

sub71910-06F50

main71910-06460-C0iACV41200605-200705

200G,BLACK,TRIM2#

sub71910-06460

sub71910-06F60

main71910-06460-C0iACV40..240G200605-200705

BLACK,TRIM2#

sub71910-06460

sub71910-06F60

main71910-06460-C1iACV40..240G200705-200902

BLACK,TRIM2#

sub71910-06460

sub71910-06F60

main71910-06460-E0iACV41200605-200705

GREGE,TRIM4#

sub71910-06460

sub71910-06F60

main71910-06460-E0iACV40..240G200605-200705

200G,GREGE,TRIM4#

sub71910-06460

sub71910-06F60

main71910-06460-E1iACV40..240G200705-201112

GREGE,TRIM4#

sub71910-06460

sub71910-06F60

71931SUPPORT, FRONT SEAT HEADREST

main71930-44020-C0iACV41200712-200903

W(LOCK),BLACK,TRIM2#

sub71930-44020

sub71930-02370

main71930-44020-E0iACV41200712-201505

W(LOCK),GREGE,TRIM4#

sub71930-44020

sub71930-02370

main71930-47010-C0iACV4#..200E,240G200605-200711

W(LOCK),BLACK,TRIM2#

sub71930-47010

sub71930-44020

main71930-47010-E3iACV4#200605-200711

W(LOCK),GREGE,TRIM4#

sub71930-47010

sub71930-44020

main71931-47010-C0iACV40..240G200605-200903

W/O(LOCK),BLACK,TRIM2#

sub71931-47010

sub71931-42020

main71931-47010-E4iACV40200605-201505

W/O(LOCK),GREGE,TRIM4#

sub71931-47010

sub71931-42020

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72124-06040-C0iACV41200605-200903

BLACK,TRIM2#

sub72124-06040

main72124-06040-E0iACV40200605-201505

GREGE,TRIM4#

sub72124-06040

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72128-06040-C0iACV41200605-200903

BLACK,TRIM2#

sub72128-06040

main72128-06040-E0iACV41200605-201505

GREGE,TRIM4#

sub72128-06040

72138COVER, SEAT TRACK, OUTER LH

main72138-06080-C0iACV40200605-200903

BLACK,TRIM2#

main72138-06080-E0iACV40200605-201505

GREGE,TRIM4#

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-06090-C0iACV41200605-200903

BLACK,TRIM2#

main72158-06090-E0iACV4#,AHV41200605-201505

GREGE,TRIM4#

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72760-06050iACV40..240G200605-200907

sub72760-06051

main72760-06051iACV40,AHV41..240G,HBD200908-201112

8202

8401

8421

85820ZMOTOR ASSY, POWER SEAT

main85801-06020iACV40,AHV41..240G,HBD200605-201112

SLIDE

main85801-06040iACV40,AHV41..240G,HBD200605-201112

RECLINING

main85801-06060iACV40..240G200605-201112

LIFTER

main85801-06080iACV40,AHV41..240G,HBD200605-201112

TILT

9011005013

main90110-05013

90119C0038

main90119-C0038

9016740044

main90167-40044

9016740048

main90167-40048

9038910041

main90389-10041

91622B1018

main91622-B1018

9353054010

main93530-54010

9356054012

main93560-54012

9356855016

main93568-55016

38 parts on this diagram · 6 diagrams in section
