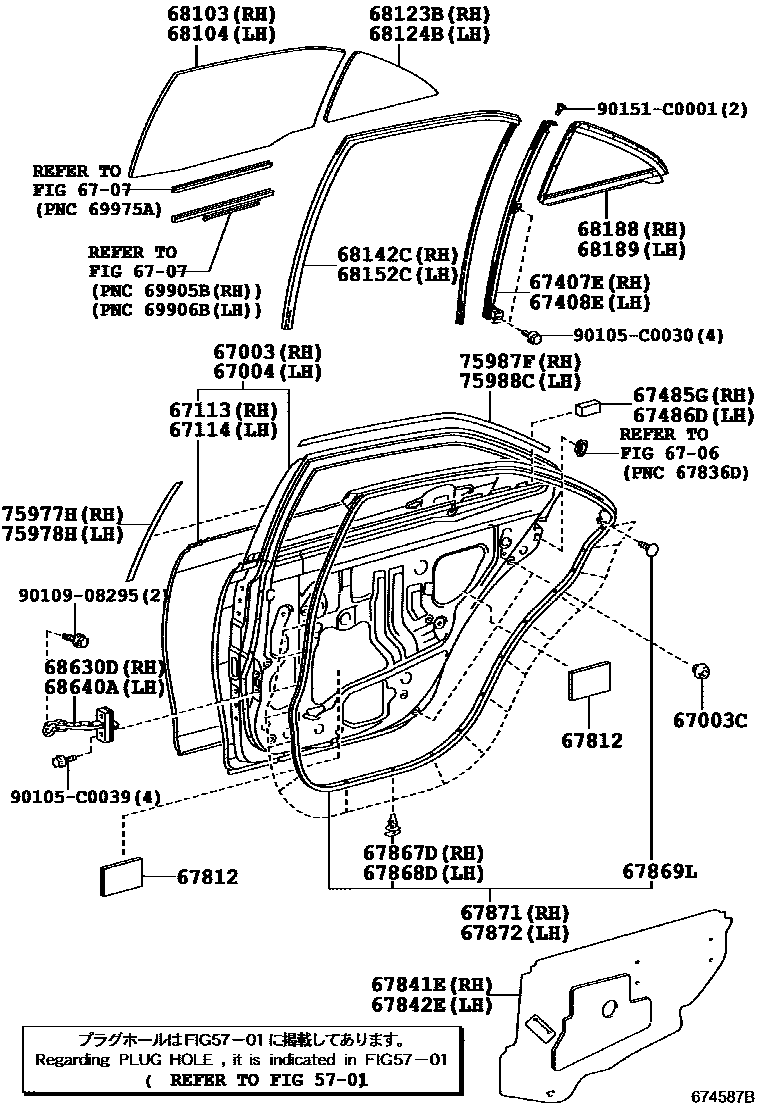

REAR DOOR PANEL & GLASS
5701
67003CCUSHION, REAR DOOR PANEL
6706
6707
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67485GSEAL, REAR DOOR REAR LOWER FRAME, RH
67486DSEAL, REAR DOOR REAR LOWER FRAME, LH
67812PAD, REAR DOOR SILENCER
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67869LCLIP, REAR DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TEM,T=4.0,S.GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*TEM,T=4.0,S.GREEN
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*TEM,T=4.0,S.GREEN
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*TEM,T=4.0,S.GREEN
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
75988CSTRIPE, REAR DOOR, OUTSIDE LH
90105C0030
main90105-C0030
90105C0039
main90105-C0039
9010908295
main90109-08295
90151C0001
main90151-C0001
38 parts on this diagram · 2 diagrams in section
