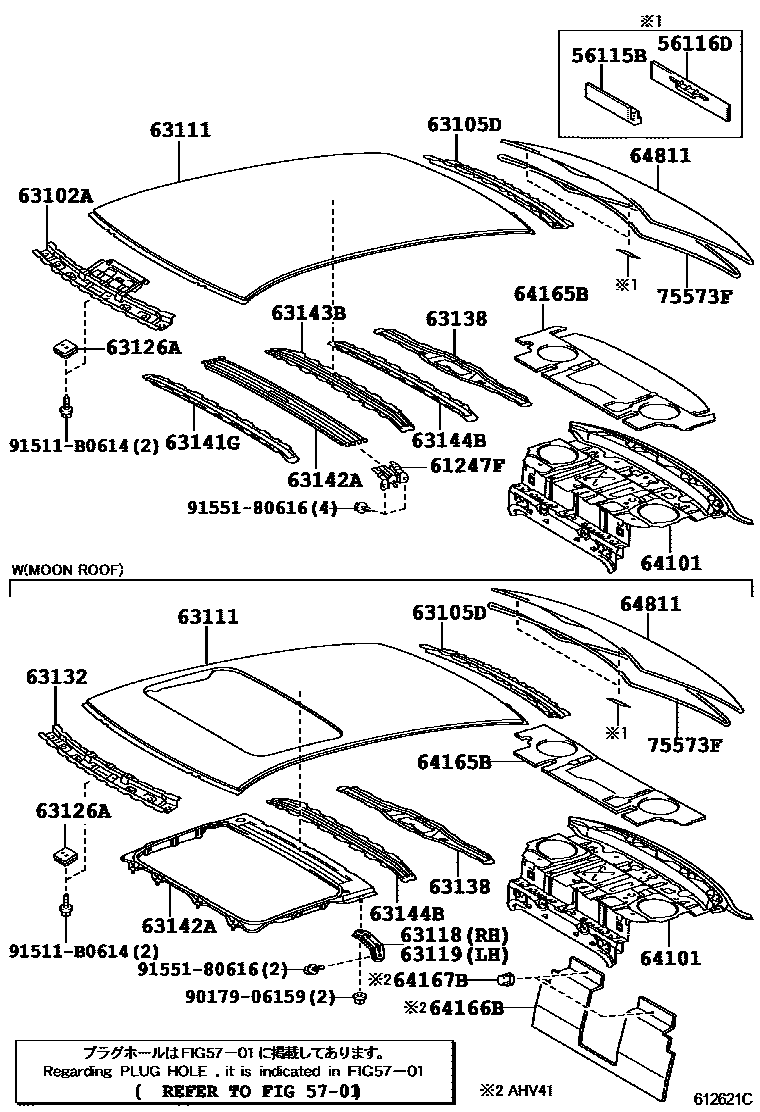

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
5701
61247FREINFORCEMENT, ROOF SIDE RAIL, INNER
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
63111PANEL, ROOF
63118SUPPORT, ROOF PANEL, RH
63119SUPPORT, ROOF PANEL, LH
63126ADAMPER, WINDSHIELD HEADER PANEL
63132PANEL, WINDSHIELD HEADER, INNER
63138BRACKET, DOME LAMP, NO.2
63141GREINFORCEMENT, ROOF PANEL, NO.1
63142AREINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144BREINFORCEMENT, ROOF PANEL, NO.4
64165BCOVER, UPPER BACK PANEL HOLE, NO.1
64166BCOVER, UPPER BACK PANEL HOLE, NO.2
64167BCOVER, UPPER BACK PANEL HOLE, NO.3
64811GLASS, BACK WINDOW
*EHTT,T=3.5,GREEN
75573FMOULDING, BACK WINDOW, OUTSIDE
9017906159
main90179-06159
91511B0614
main91511-B0614
9155180616
main91551-80616
25 parts on this diagram · 2 diagrams in section
