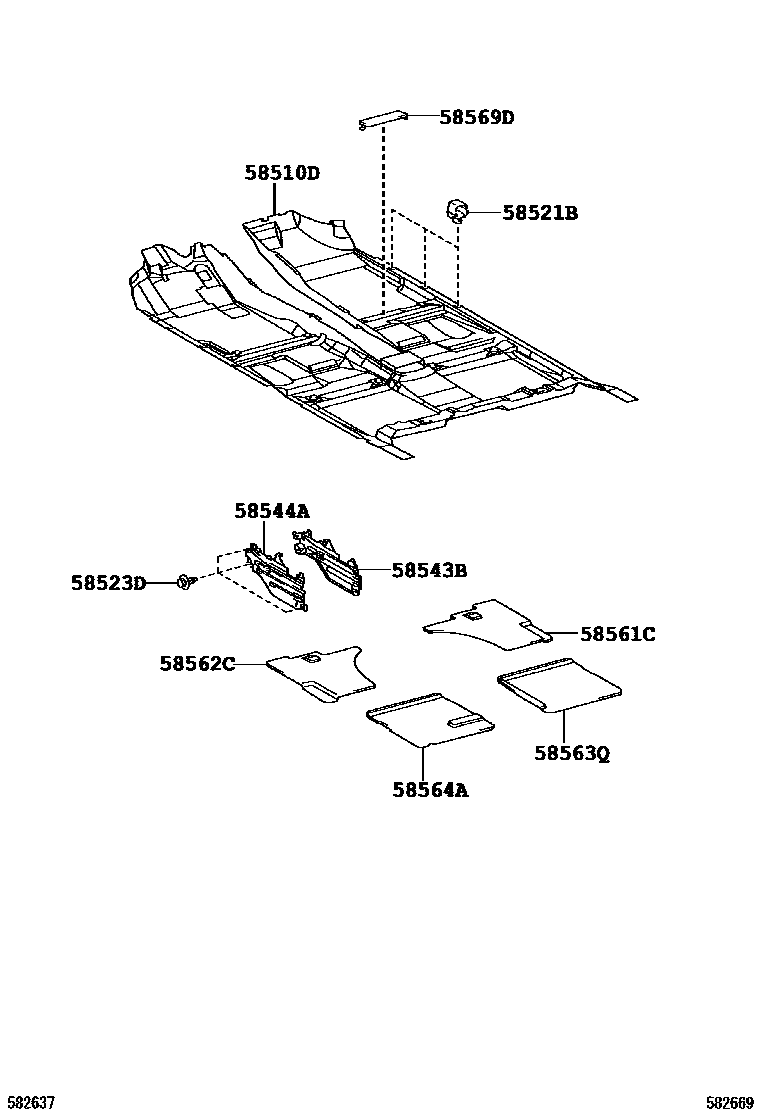

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-06340-C1iACV4#200605-200608

BLACK,TRIM2#

sub58510-06341

main58510-06340-E1iACV4#200605-200608

GREGE,TRIM4#

sub58510-06341

main58510-06341-C1iACV40200609-200903

BLACK,TRIM2#

main58510-06341-E1iACV40200609-200903

GREGE,TRIM4#

main58510-06342-E1iACV4#,AHV41200902-201010

GREGE,TRIM4#

sub58510-06343

main58510-06343-E1iACV4#,AHV41201011-201206

GREGE,TRIM4#

main58510-06344-E1iACV41201206-201407

GREGE,TRIM4#

sub58510-06345

main58510-06345-E1iACV41201408-201505

GREGE,TRIM4#

58521BHOOK, FLOOR CARPET

main58521-06120iACV4#,AHV41201111

main58521-33040iACV40¥900200605-201111

58523DCLIP(FOR FLOOR CARPET SET BRACKET)

main90467-07076-C0iACV40200605-201505

BLACK

sub90467-07041¥140

sub90467-07076¥130

sub90467-A0016

58543BBRACKET, FLOOR CARPET, RH

main58543-06070iACV40200605-200903

58544ABRACKET, FLOOR CARPET, LH

main58544-06070iACV40200605-200903

58561CSILENCER, FRONT FLOOR, NO.1

main58561-06090iACV41200605-200903

58562CSILENCER, FRONT FLOOR, NO.2

main58562-06090iACV40200605-200903

58563QSILENCER, FRONT FLOOR, NO.3

main58563-06080iACV4#,AHV41200605-200903

58564ASILENCER, FRONT FLOOR, NO.4

main58564-06080iACV4#,AHV41200605-200903

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-44010-C0iACV41200605-200903

BLACK,TRIM2#

sub58569-44010¥2,630

main58569-44010-E1iACV4#,AHV41200605-201505

GREGE,TRIM4#

sub58569-44010¥2,630

10 parts on this diagram · 1 diagram in section
