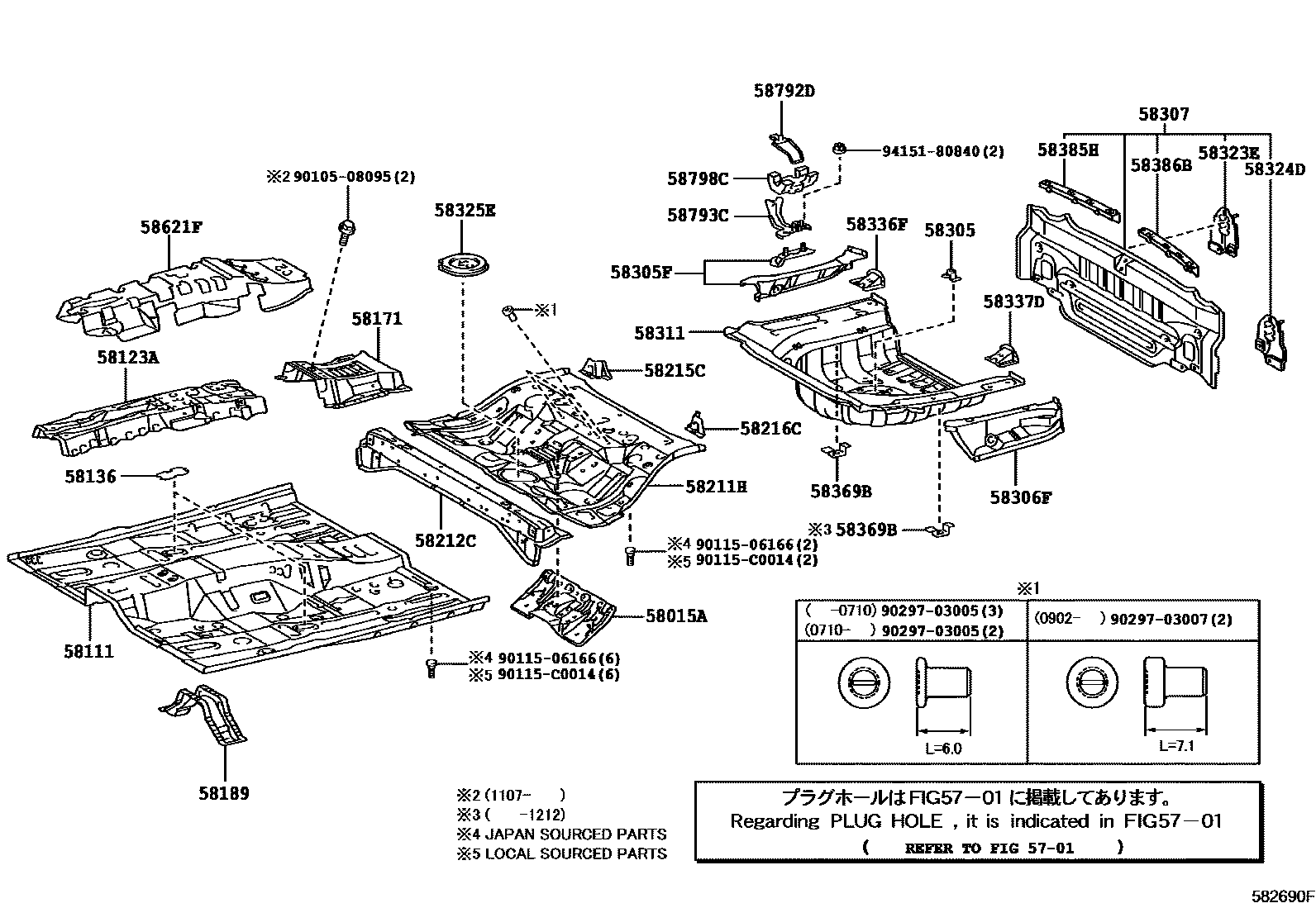

FLOOR PAN & LOWER BACK PANEL
5701
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58136COVER, FRONT FLOOR HOLE
58212CPAN, CENTER FLOOR, FRONT
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336FREINFORCEMENT, REAR FLOOR PAN, RH
58337DREINFORCEMENT, REAR FLOOR PAN, LH
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
58369BBRACKET, FUEL TUBE, NO.3
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
58621FSILENCER, CENTER CONSOLE, NO.1
sub58621-06121
58792DSUPPORT, JACK
58793CBRACKET, JACK CARRIER, NO.1
9010508095
main90105-08095
9011506166
main90115-06166
90115C0014
main90115-C0014
9029703005
main90297-03005
9029703007
main90297-03007
9415180840
main94151-80840
34 parts on this diagram · 2 diagrams in section
