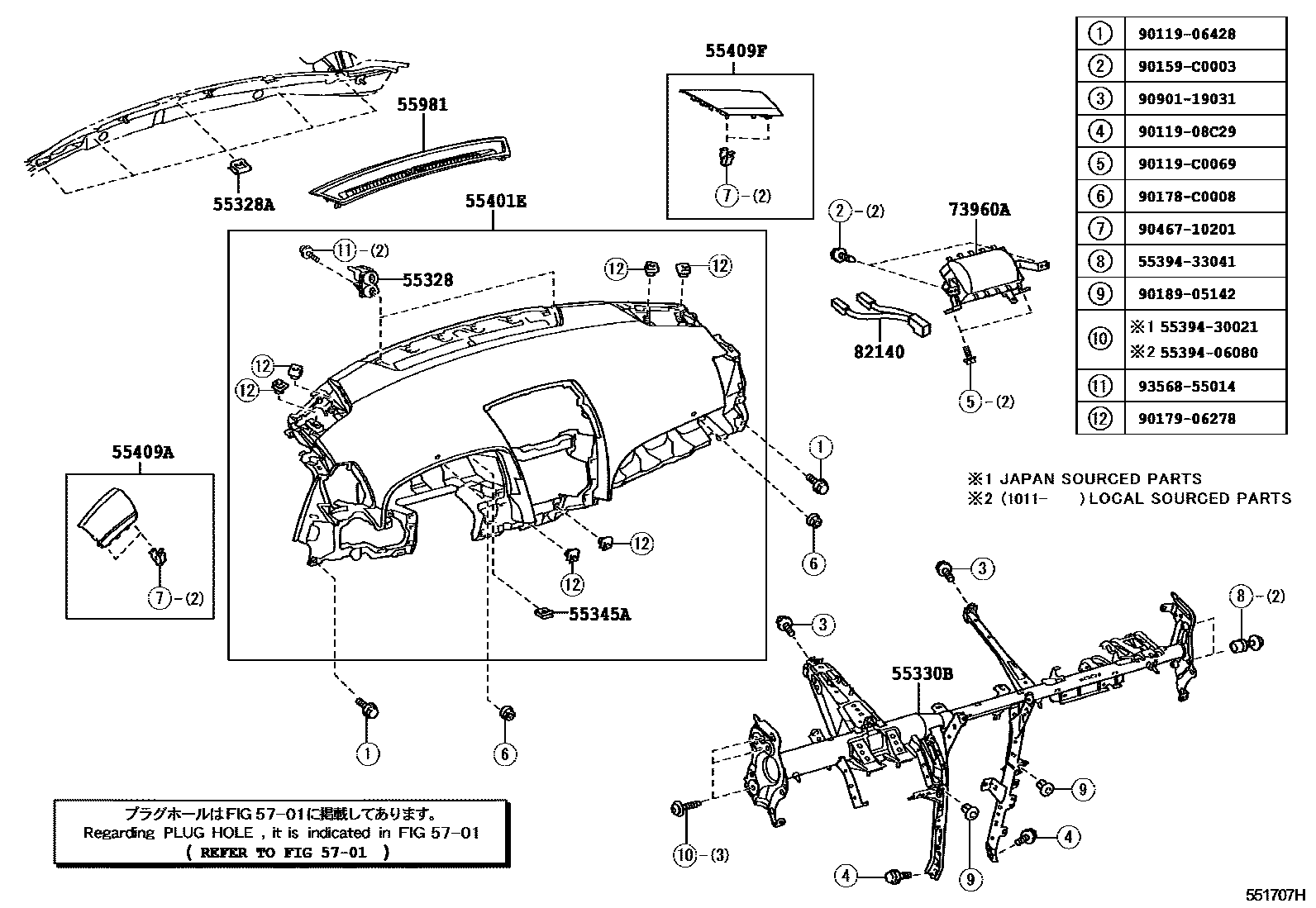

INSTRUMENT PANEL & GLOVE COMPARTMENT
55328PIN, INSTRUMENT PANEL, NO.1
55345ACLIP, INSTRUMENT PANEL, NO.1
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER
BLACK,TRIM2#
ASH BROWN,TRIM4#
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
BLACK,TRIM2#
ASH BROWN,TRIM4#
55981GARNISH, DEFROSTER NOZZLE, NO.1
5701
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
82140WIRE ASSY, INSTRUMENT PANEL
5539406080BRACKET, INSTRUMENT PANEL TO PEDAL
main55394-06080
5539430021BRACKET, INSTRUMENT PANEL TO PEDAL
main55394-30021
5539433041BRACKET, INSTRUMENT PANEL TO PEDAL
main55394-33041
9011906428
main90119-06428
9011908C29
main90119-08C29
90119C0069
main90119-C0069
90159C0003
main90159-C0003
90178C0008
main90178-C0008
9017906278
main90179-06278
9018905142
main90189-05142
9046710201
main90467-10201
9090119031
main90901-19031
9356855014
main93568-55014
24 parts on this diagram · 4 diagrams in section
