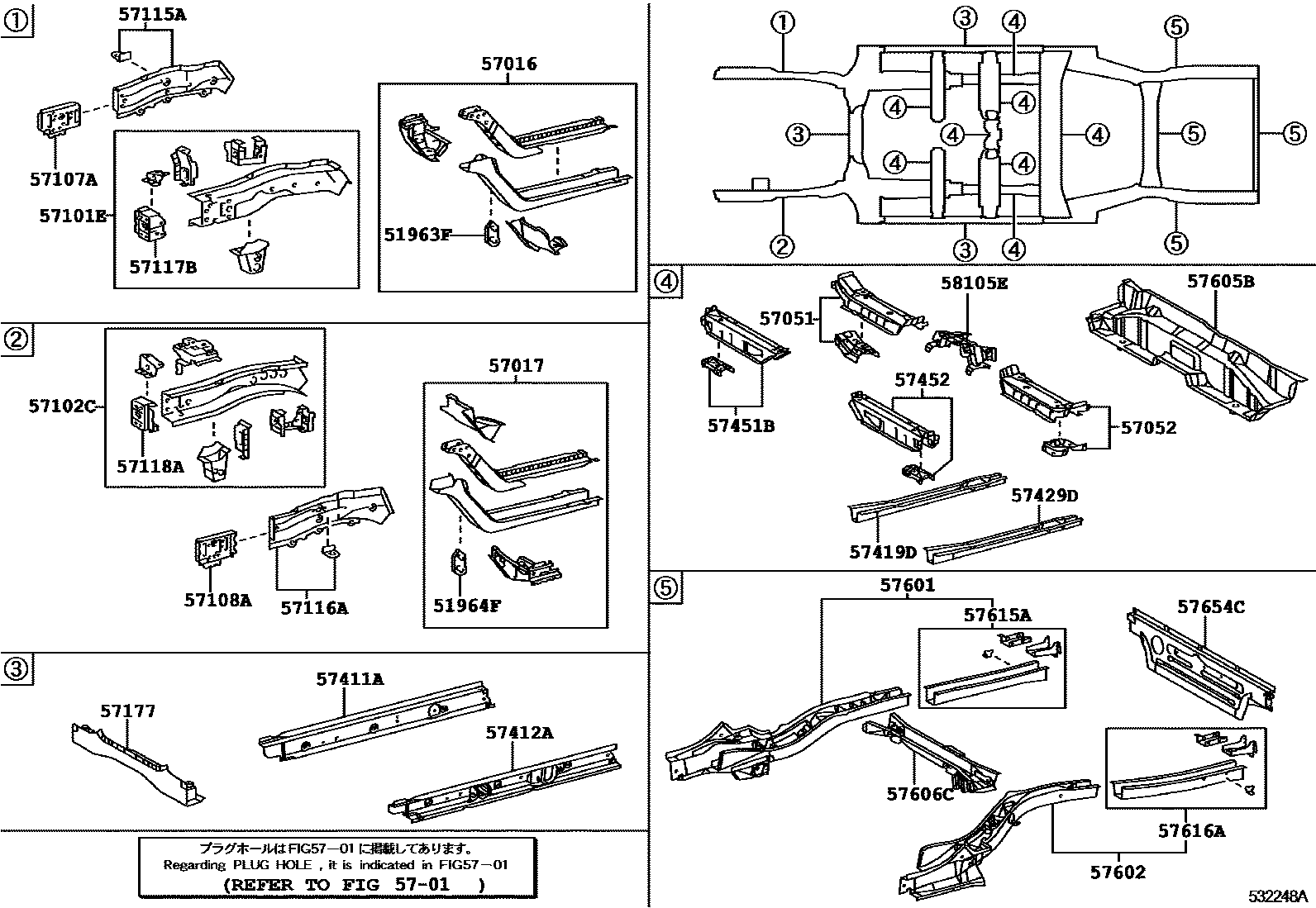

FLOOR SIDE MEMBER

51963FHOOK, TRANSPORT

main51963-06020iACV40200605-200903

51964FHOOK, TRANSPORT, LH

main51964-06020iACV40200605-200903

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-06070iACV40200605-200903

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-06070iACV40200605-200903

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-06010iACV40200605-200903

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-06010iACV40200605-200903

57101EMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-06050iACV40200605-201101

sub57027-06051

sub90333-30008¥70

main57027-06051iACV4#,AHV41201101

57102CMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-06060iACV40200605-200903

sub57028-06061

sub90333-30008¥70

main57028-06080iACV4#,AHV41200902-201101

sub57028-06081

sub90333-30008¥70

main57028-06081iACV4#,AHV41201101

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-06040iACV4#200605-200609

sub57107-06041

main57107-06041iACV41200610-201505

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-06040iACV4#200605-200609

sub57108-06041

main57108-06041iACV40200610-201505

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57025-06040iACV40200605-200903

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57026-06030iACV4#,AHV41200605-200903

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-06080iACV40200712-200903

main57117-33050iACV4#¥3,270200605-200712

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-06080iACV41200712-200903

main57118-33050iACV4#¥3,270200605-200712

57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL

main57103-06080iACV4#200605-200807

sub57103-06081

main57103-06081iACV4#200808-201001

sub57103-06110

main57103-06110iACV4#,AHV41201001-201305

sub57103-06111

main57103-06111iACV41201306-201505

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-06180iACV40200605-201104

sub57401-06181

main57401-06181iACV4#,AHV41201105-201505

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-06180iACV40200605-201104

sub57402-06181

main57402-06181iACV4#,AHV41201105-201505

57419DREINFORCEMENT, FRONT FLOOR UNDER, REAR RH

main57419-33050iACV40¥6,200200605-200903

57429DREINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57429-33020iACV40¥6,200200605-200903

57451BMEMBER, FRONT FLOOR CROSS, RH

main57053-06010iACV40200605-200903

57452MEMBER, FRONT FLOOR CROSS, LH

main57054-06020iACV40200605-200903

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-06240iACV40200605-201110

sub57601-06241

sub90333-30008¥70

main57601-06241iACV4#201110

main57601-06280iAHV41201003-201110

sub57601-06281

sub90333-30008¥70

main57601-06281iAHV41201110-201112

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-06190iACV40200605-200903

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-06110iACV41200605-201001

sub57605-06140

sub90333-30008¥70

main57605-06140iACV4#,AHV41201001

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-06100iACV40200605-201001

sub57606-06140

sub90333-30002¥70

main57606-06140iACV4#,AHV41201001

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-06915iACV40200605-201101

sub57615-06921

sub90333-30008¥70

main57615-06921iACV4#,AHV41201101

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-06917iACV40200605-200903

57654CMEMBER, REAR FLOOR CROSS, NO.3

main57654-06060iACV40200605-200903

58105EPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-06050iACV40200605-201106

sub58105-06051

main58105-06051iACV4#,AHV41201107

30 parts on this diagram · 1 diagram in section
