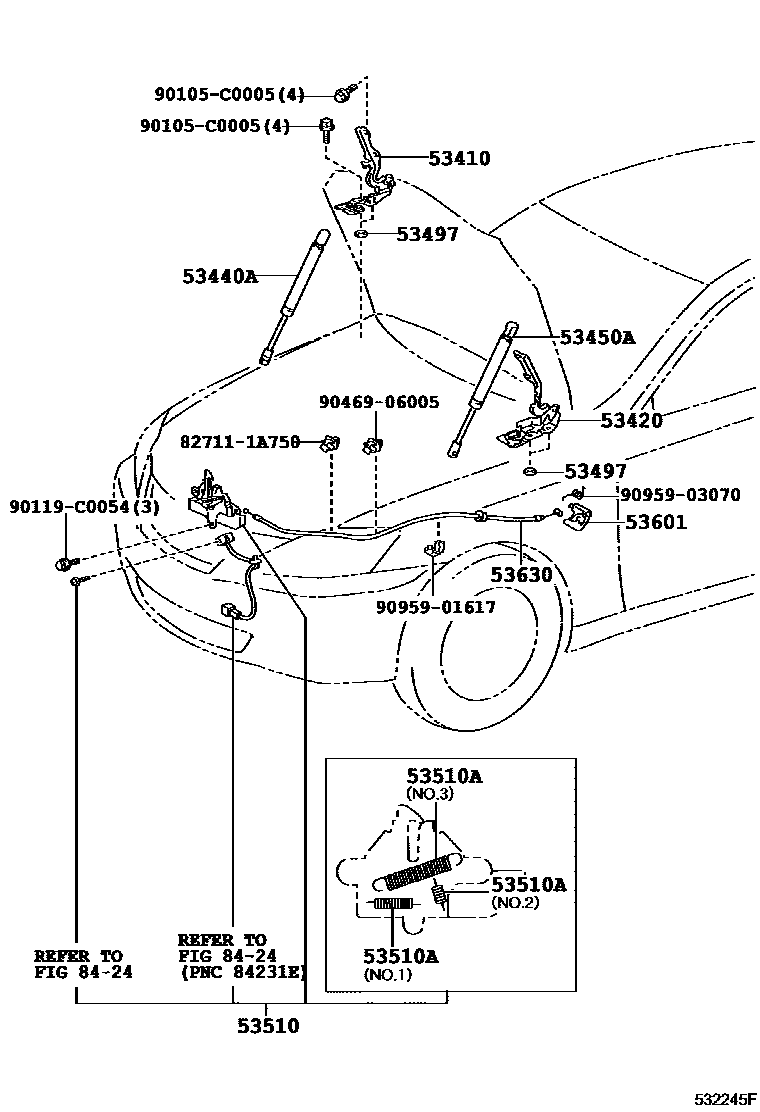

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-33180iACV4#200605-201505

53420HINGE ASSY, HOOD, LH

main53420-33180iACV40200605-201505

53440ASUPPORT ASSY, HOOD, RH

main53440-06070iACV4#,AHV41200605-200903

53450ASUPPORT ASSY, HOOD, LH

main53450-06060iACV41200605-200903

53497PAD, HOOD HINGE, NO.1

main53497-20070iACV4#,AHV41200902

T=2.0

main53497-42010iACV40200605-200903

T=0.5

53510LOCK ASSY, HOOD

main53510-06160iACV4#200605-201001

sub53510-06161

main53510-06161iACV4#,AHV41201002

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iACV41200605-200903

WD=0.9,CW=21,NO.1

main90506-12063iACV4#,AHV41200605-200903

WD=1.2,CW=8.5,NO.2

main90506-18067iACV41200605-200903

WD=1.8,CW=13,NO.3

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53611-12040-C0iACV4#200605-200903

BLACK,TRIM2#

sub53611-12040

main53611-12040-E2iACV4#200605-201505

GREGE,TRIM4#

sub53611-12040

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-06140iACV40200605-200903

8424

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

90105C0005

main90105-C0005

90119C0054

main90119-C0054

9046906005

main90469-06005

9095901617

main90959-01617

9095903070

main90959-03070

16 parts on this diagram · 1 diagram in section
