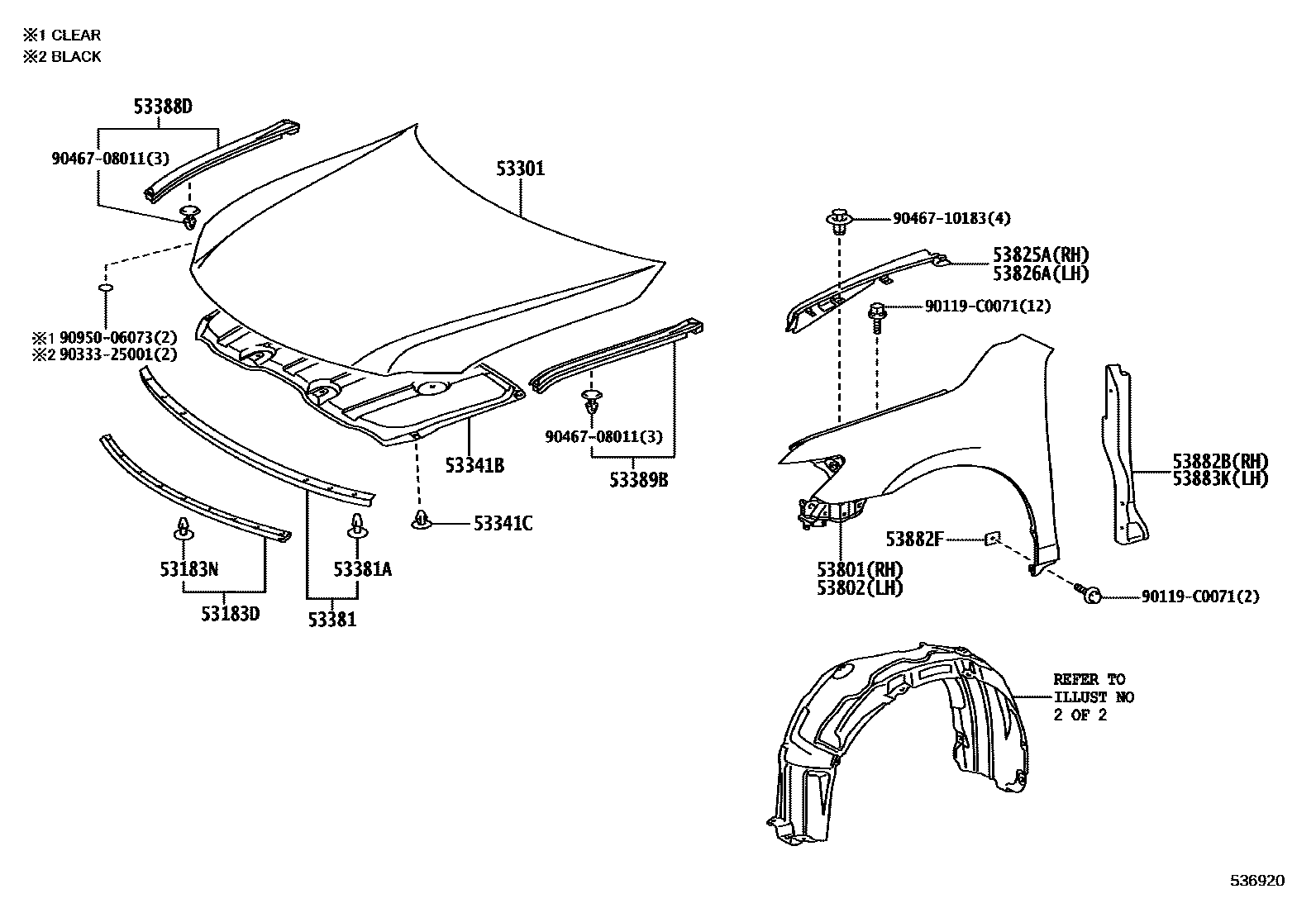

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-06070iACV40200605-200903

main53183-06100iACV4#,AHV41200902

53183NCLIP(FOR HEADLAMP COVER SEAL)

main90467-08011iACV40200605-200903

53301HOOD SUB-ASSY

main53301-06140iACV40200605-201505

53341BINSULATOR, HOOD

main53341-06210iACV40200605-200903

main53341-06230iAHV41201003-201112

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iACV4#,AHV41200605-200903

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-06090iACV40200605-200903

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iACV40200605-200903

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-06060iACV40200605-200903

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-06060iACV40200605-200903

53801FENDER SUB-ASSY, FRONT RH

main53801-06160iACV40200605-201505

53802FENDER SUB-ASSY, FRONT LH

main53802-06170iACV4#,AHV41200605-201505

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-06060iACV41200605-200903

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-06060iACV41200605-200903

53882BSEAL, FRONT FENDER, RH

main53882-06060iACV40200605-200903

53882FSEAL, FRONT FENDER

main53882-16030iACV40200605-201505

53883KSEAL, FRONT FENDER, LH

main53883-06050iACV40200605-200903

90119C0071

main90119-C0071

9033325001

main90333-25001

9046708011

main90467-08011

9046710183

main90467-10183

9095006073

main90950-06073

21 parts on this diagram · 2 diagrams in section
