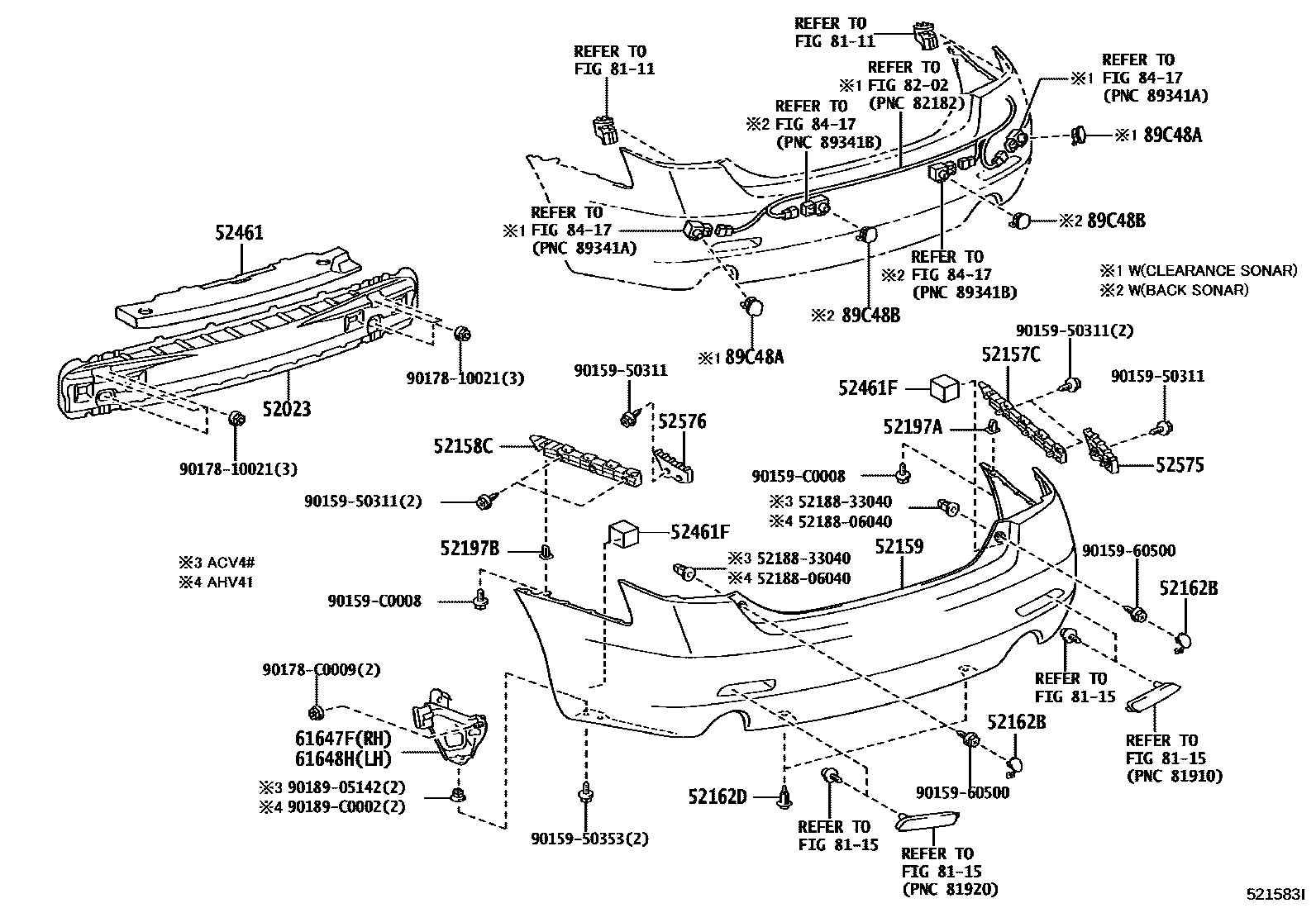

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
52162BPLATE, REAR BUMPER, NO.1
RH
LH
52162DPIECE, REAR BUMPER
52197ABRACKET, REAR BUMPER SEAL, RH
52197BBRACKET, REAR BUMPER SEAL, LH
52461PAD, REAR BUMPER, CENTER
52461FPAD, REAR BUMPER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
61647FREINFORCEMENT, WHEEL HOUSE, RH
61648HREINFORCEMENT, WHEEL HOUSE, LH
8111
8115
8202
8417
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
WHITE PEARL CS.,070
200G,WHITE PEARL CS.,070
200G,SILVER ME.,1D4 ,4T8
SILVER ME.,1D4 ,4T8
SILVER ME.,1D4 ,4T8 ,8U8
200G,DUMMY-MAT BLACK,1G3 ,202 ,4T8 ,8S6
DUMMY-MAT BLACK,1G3 ,202 ,4T8 ,8S6
WHITE PEARL CS.,070
SILVER ME.,1D4 ,4T8
SILVER ME.,1D4 ,4R0
DUMMY-MAT BLACK,202 ,6S7 ,8P8
DUMMY-MAT BLACK,1G3 ,202 ,4T8 ,8S6
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
WHITE PEARL CS.,070
200G,WHITE PEARL CS.,070
SILVER ME.,1D4 ,4T8
200G,SILVER ME.,1D4 ,4T8
DUMMY-MAT BLACK,1G3 ,202 ,4T8 ,8S6
200G,DUMMY-MAT BLACK,1G3 ,202 ,4T8 ,8S6
WHITE PEARL CS.,070
SILVER ME.,1D4 ,4R0
SILVER ME.,1D4 ,4T8
DUMMY-MAT BLACK,1G3 ,202 ,4T8 ,8S6
DUMMY-MAT BLACK,202 ,6S7 ,8P8
5218806040CUSHION, REAR BUMPER ARM, LH
main52188-06040
5218833040CUSHION, REAR BUMPER ARM, LH
9015950311
9015950353
9015960500
90159C0008
main90159-C0008
9017810021
90178C0009
main90178-C0009
9018905142
90189C0002
main90189-C0002
30 parts on this diagram · 1 diagram in section
