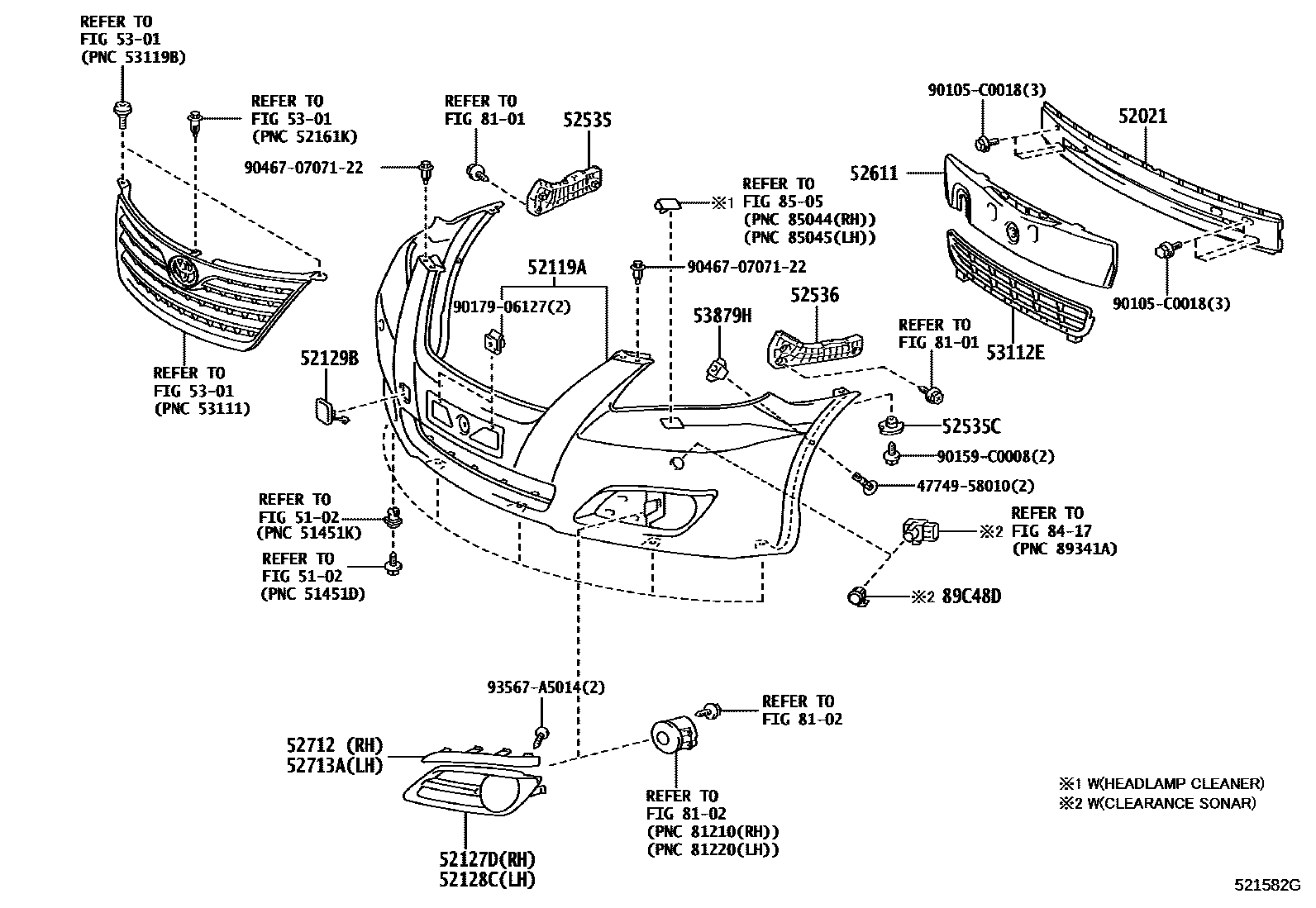

FRONT BUMPER & BUMPER STAY
5102
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.,200G
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
52127DCOVER, FRONT BUMPER HOLE, RH
52128CCOVER, FRONT BUMPER HOLE, LH
52129BCOVER, FRONT BUMPER, LOWER
52535RETAINER, FRONT BUMPER SIDE, RH
52535CRETAINER, FRONT BUMPER SIDE
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
52712MOULDING, FRONT BUMPER SIDE, RH
52713AMOULDING, FRONT BUMPER SIDE, LH
5301
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
8101
8102
8417
8505
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
WHITE PEARL CS.,070
200G,WHITE PEARL CS.,070
200G,SILVER ME.,1D4 ,4T8
SILVER ME.,1D4 ,4T8
SILVER ME.,1D4 ,4T8 ,8U8
DUMMY-MAT BLACK,1G3 ,202 ,4T8 ,8S6
200G,DUMMY-MAT BLACK,1G3 ,202 ,4T8 ,8S6
WHITE PEARL CS.,070
SILVER ME.,1D4 ,4T8
SILVER ME.,1D4 ,4R0
DUMMY-MAT BLACK,1G3 ,202 ,4T8 ,8S6
DUMMY-MAT BLACK,202 ,6S7 ,8P8
4774958010CLIP, PIN HOLD
main47749-58010
90105C0018
main90105-C0018
90159C0008
main90159-C0008
9017906127
main90179-06127
904670707122
main90467-0707122
93567A5014
main93567-A5014
26 parts on this diagram · 2 diagrams in section
