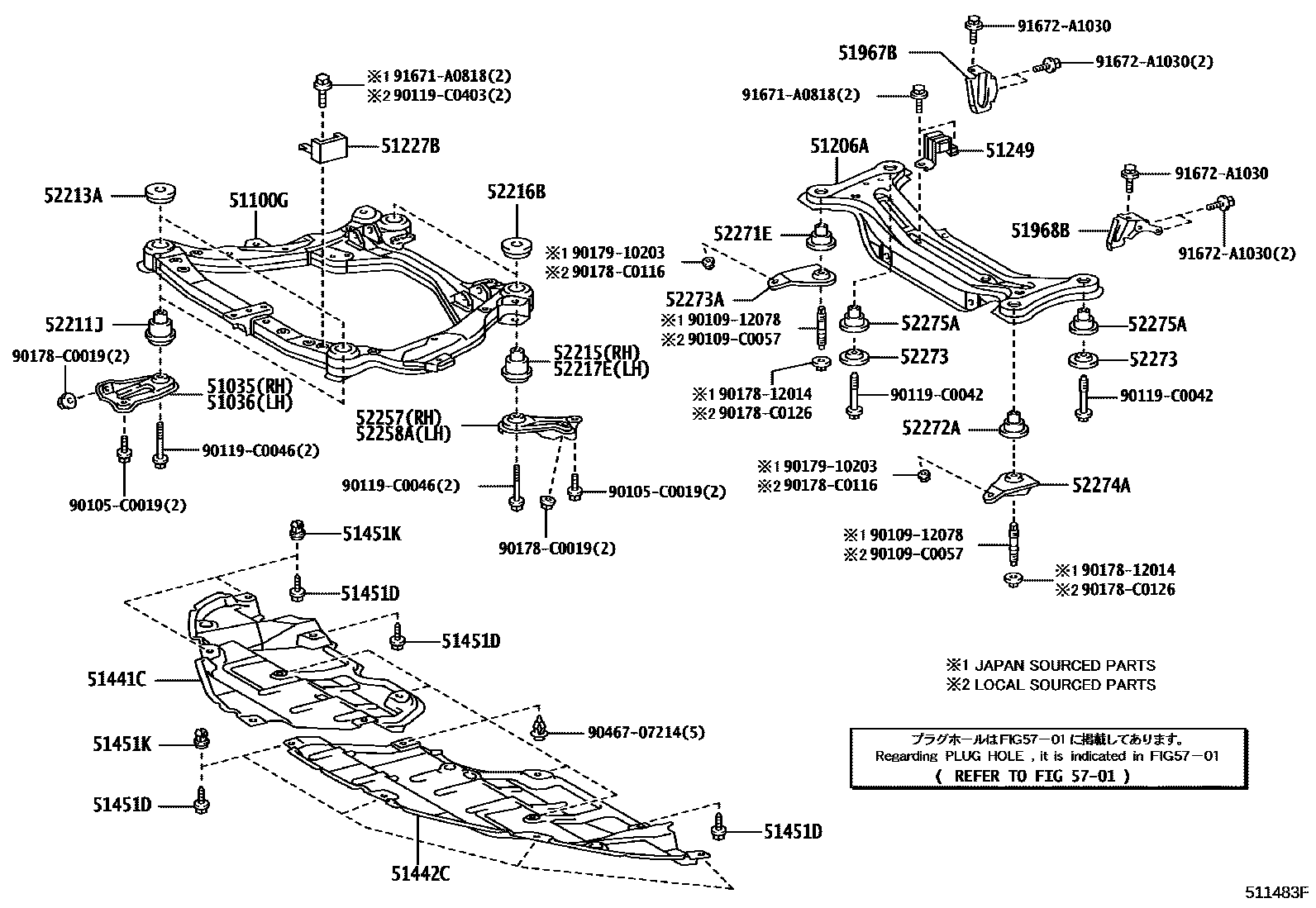

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1FLOOR UNDER COVER

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-06040iACV4#,AHV41200605-200903

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-06040iACV4#,AHV41200605-200903

51100GFRAME ASSY, FRONT

main51100-06100iACV40200605-201006

sub51100-06101

main51100-06101iACV4#201007-201503

sub51100-06210

main51100-06150iAHV41201003-201112

sub51100-06151

main51100-06210iACV41201503-201505

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51270-06010iACV4#200605-200810

sub51270-06020

main51270-06020iACV40200811-200903

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-06080iACV40200605-200903

51249DAMPER, REAR SUSPENSION MEMBER

main51249-06040iACV4#,AHV41200605-200903

51441CCOVER, ENGINE UNDER, RH

main51441-06100iACV40200605-200903

sub51441-33240¥7,700

main51441-06130iACV4#,AHV41200902-201505

sub51441-06120

51442CCOVER, ENGINE UNDER, LH

main51442-06090iACV40200605-200903

sub51442-33230¥9,900

main51442-06120iACV4#,AHV41200902-201505

sub51442-06110

51451DSCREW, NO.1

main90159-60525iACV4#¥110200605-201505

51451KGROMMET, SCREW, NO.1

main90189-06193iACV4#¥80200605-201505

51967BHOOK, TRANSPORT, REAR RH

main51967-06050iACV40200605-200903

51968BHOOK, TRANSPORT, REAR LH

main51968-06070iACV40200605-200903

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-06130iACV40200605-200903

main52211-33080iAHV41¥4,110201003-201112

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06130iACV40200605-200903

main52213-33080iAHV41¥1,750201003-201112

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-06110iACV40200605-200903

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06110iACV40200605-200903

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-06090iACV40200605-200903

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-06040iACV40200605-200903

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-06040iACV40200605-200903

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-06100iACV40200605-201505

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-06090iACV40200605-201505

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-06030iACV40200605-200903

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-06030iACV40200605-200903

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-06030iACV40200605-200903

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-06100iACV40200605-201505

5701

90105C0019

main90105-C0019

9010912078

main90109-12078¥330

90109C0057

main90109-C0057

90119C0042

main90119-C0042

90119C0046

main90119-C0046

90119C0403

main90119-C0403

9017812014

main90178-12014¥160

90178C0019

main90178-C0019

90178C0116

main90178-C0116

90178C0126

main90178-C0126

9017910203

main90179-10203¥170

9046707214

main90467-07214¥70

91671A0818

main91671-A0818¥80

91672A1030

main91672-A1030¥120

40 parts on this diagram · 2 diagrams in section
