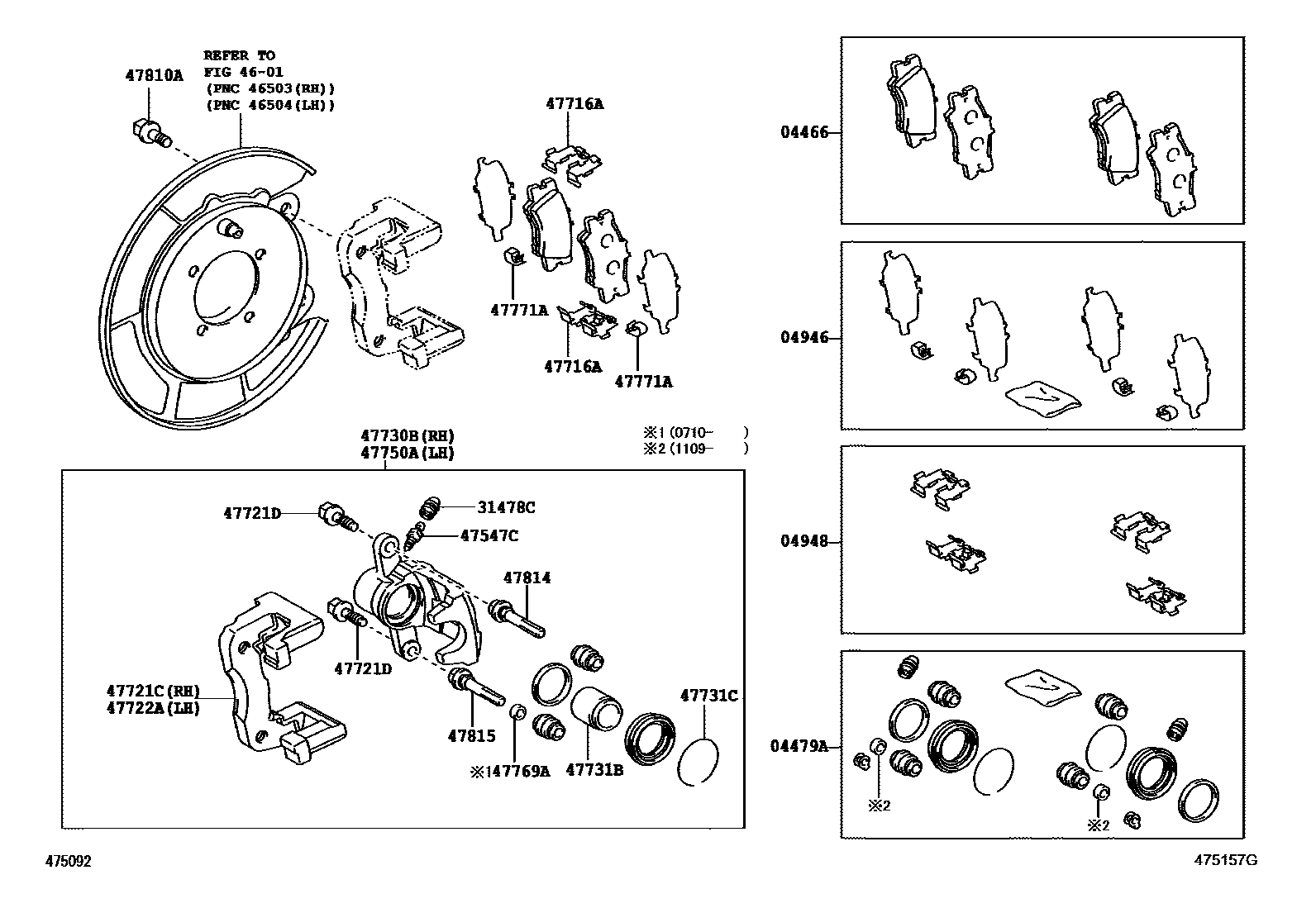

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-33160iACV4#200605-200710

MARK NBK D6234

sub04466-33180

main04466-33180iACV4#200710-201505

MARK NBK D6247

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-06320iACV41201308

main04479-33240iACV4#200605-200706

main04479-33260iACV41200707-201109

main04479-33340iACV4#,AHV41201109-201308

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-33040iACV40200605-201112

sub04946-33060

main04946-33060iACV41201201

04948FITTING KIT, DISC BRAKE, REAR

main04948-06050iACV41201308

main04948-33030iACV4#200605-200710

sub04948-33040

main04948-33040iACV41200710-201308

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-06020iACV41201308

main31478-50020iACV41200605-201308

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12010iACV41201308

main47547-20010iACV40200605-201308

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47816-06130iACV41201308

main47816-33210iACV4#200605-200710

sub47816-33211

main47816-33211iACV40200710-201308

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-06130iACV41201308

main47821-33210iACV4#200605-200710

sub47821-33211

sub47814-33211

sub47879-33211

main47821-33211iACV40200710-201009

sub47821-33240

main47821-33240iACV4#,AHV41201009-201109

main47821-33241iACV4#,AHV41201109-201308

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA608iACV41201308

*8-1.00PX23-15

main90105-08164iACV41200605-201308

*8-1.00PX23-15

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-06120iACV41201308

main47822-33210iACV4#200605-200710

sub47822-33211

sub47814-33211

sub47879-33211

main47822-33211iACV4#,AHV41200710-201009

sub47822-33240

main47822-33240iACV4#,AHV41201009-201109

main47822-33241iACV4#,AHV41201109-201308

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-06130iACV41201308

main47830-33210iACV4#200605-200710

sub47830-33211

main47830-33211iACV41200710-201109

main47830-33240iACV4#,AHV41201109-201308

47731BPISTON, REAR DISC BRAKE

main47831-06130iACV41201308

main47831-33210iACV41200605-201308

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006iACV40200605-200903

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-06120iACV41201308

main47850-33210iACV4#200605-200710

sub47850-33211

main47850-33211iACV41200710-201109

main47850-33240iACV4#,AHV41201109-201308

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-06130iACV41201308

main47879-33211iACV41200710-201109

main47879-33240iACV4#,AHV41201109-201308

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-32030iACV41200605-201201

main47771-72010iACV41201201

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-C0030iACV40200605-201505

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-06130iACV41201308

main47814-33210iACV41200605-201109

main47814-33240iACV4#,AHV41201109-201308

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47814-33210iACV4#200605-200710

main47814-33211iACV4#,AHV41200710-201109

main47815-06130iACV41201308

main47815-33240iACV4#,AHV41201109-201308

20 parts on this diagram · 1 diagram in section
