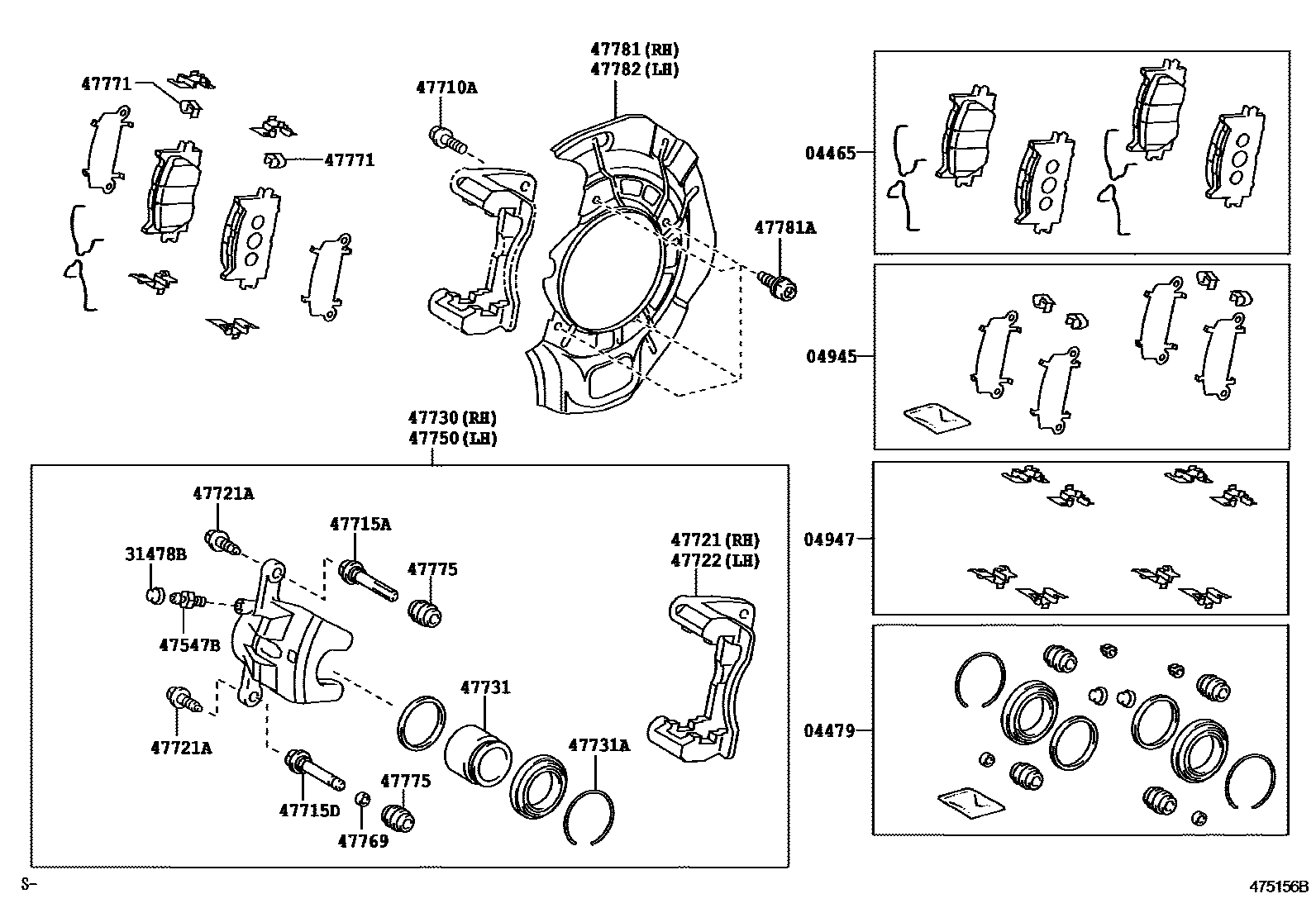

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-33450iACV4#200605-200903

MARK NBK PN562H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-06180iACV4#200605-200706

sub04478-06181

main04478-06181iACV40200707-200903

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33260iACV40200605-200903

04947FITTING KIT, DISC BRAKE, FRONT

main04947-06080iACV4#200605-200606

sub04947-06081

main04947-06081iACV40200606-200903

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0N010iACV40200605-200903

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iACV40200605-200903

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-C0021iACV40200605-201505

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-06270iACV40200605-200903

sub47714-0R020

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-06270iACV40200605-200903

sub47715-0D210

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-06270iACV40200605-200903

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iACV40200605-200903

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-06270iACV40200605-200903

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-06270iACV41200605-200903

47731PISTON, FRONT DISC BRAKE

main47731-0R030iACV4#,AHV41201007

main47731-33340iACV41200605-201007

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-76002iACV40200605-200903

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-06270iACV40200605-200903

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-0P010iACV4#,AHV41200605-200903

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-53060iACV40200605-200903

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-06270iACV40200605-200903

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-06100iACV40200605-201505

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90148-C0003iACV40200605-201505

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-06100iACV40200605-201505

22 parts on this diagram · 1 diagram in section
