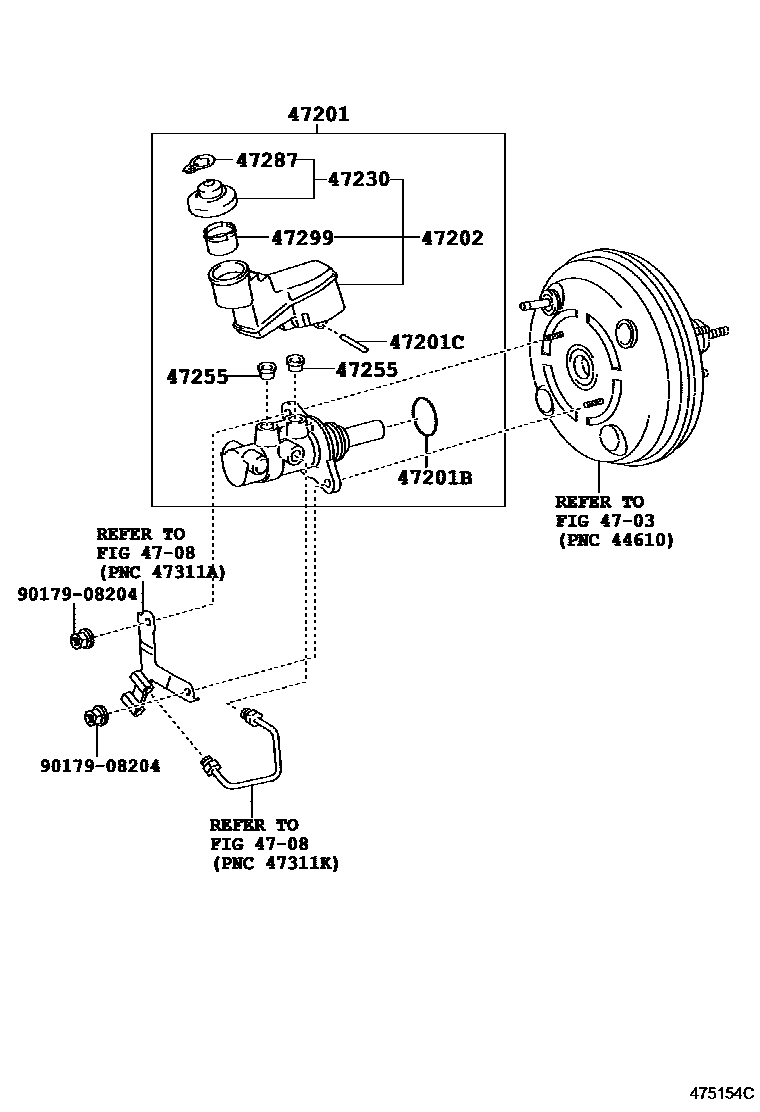

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47028-06050iACV4#200605-200707

sub47201-06400

main47201-06400iACV4#200707-201204

sub47201-06401

main47201-06401iACV41201204-201205

sub47201-06402

main47201-06402iACV41201205-201505

main47201-33510iAHV41201003-201112

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iACV40200605-200903

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iACV4#200605-200903

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-06220iACV40200605-201505

main47220-33100iAHV41201003-201101

sub47220-33101

main47220-33101iAHV41201101-201112

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iACV40200605-200903

main47230-58010iAHV41201003-201112

sub47230-11010

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iAHV41201003-201112

main90029-48001iACV40200605-200903

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iACV4#200605-200903

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iACV40200605-200903

main47299-30190iAHV41201003-201112

9017908204

main90179-08204

11 parts on this diagram · 2 diagrams in section
