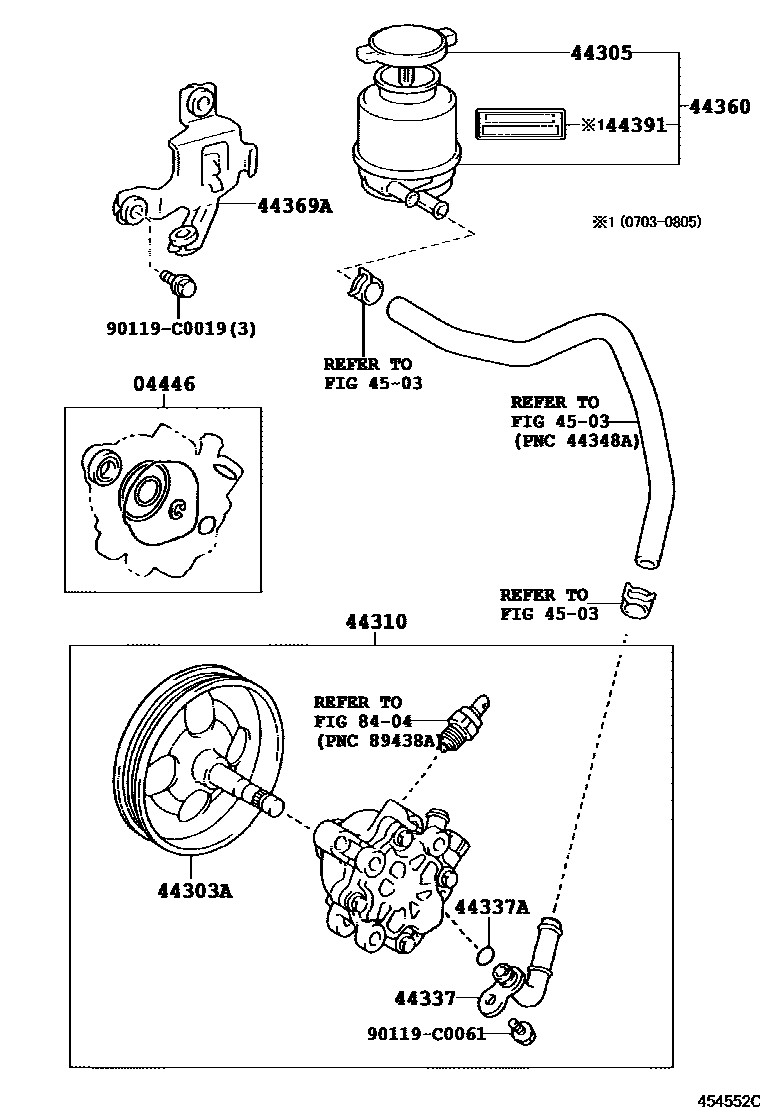

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-06090iACV40200605-201103

sub04446-06091

main04446-06091iACV4#201103

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-06070iACV4#200605-200903

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-06020iACV4#200605-200802

sub44305-06040

main44305-06040iACV40200803-200903

44310PUMP ASSY, VANE

main44310-06170iACV4#200605-200710

sub44310-06171

main44310-06171iACV4#200711-201505

44337UNION, POWER STEERING SUCTION PORT

main44337-06100iACV40200605-200903

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iACV40200605-200903

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-06050iACV4#200605-200702

sub44360-06051

main44360-06051iACV4#200703-201505

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-06050iACV40200605-200903

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-33010iACV4#200703-200805

4503

8404

90119C0019

main90119-C0019

90119C0061

main90119-C0061

13 parts on this diagram · 1 diagram in section
