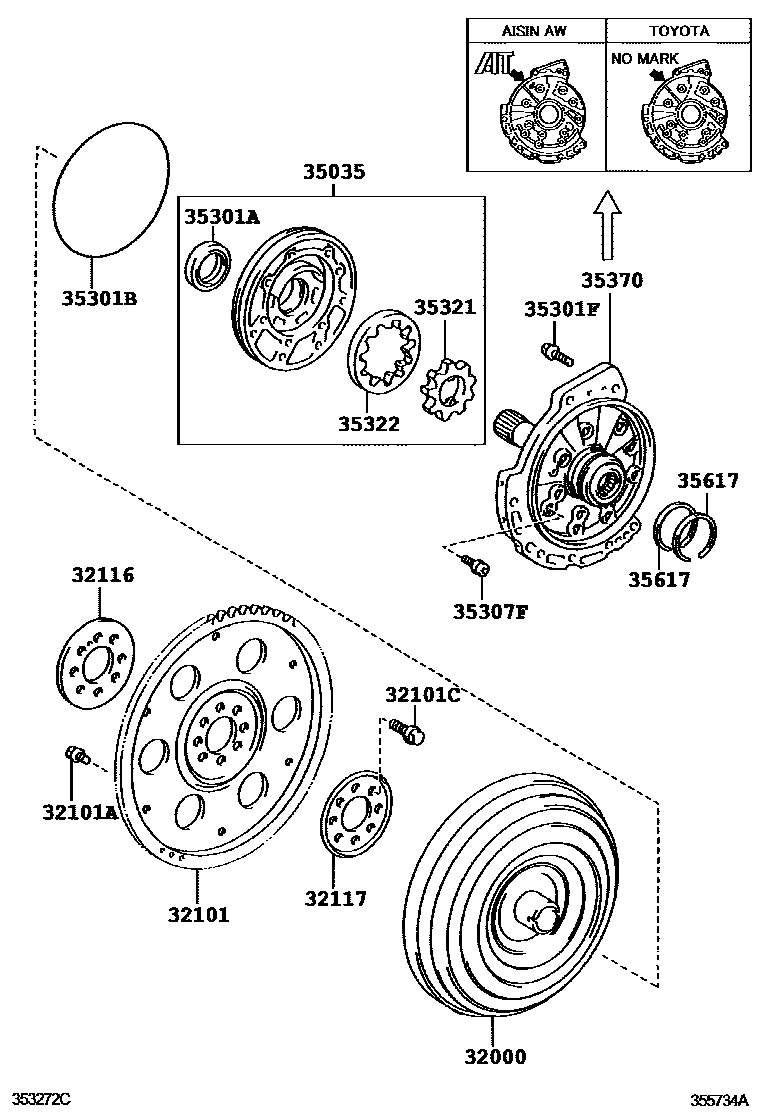

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-20360i200605-201304
sub32000-44040
main32000-28150i200605-200902
main32000-44040i201304
sub32000-42040
main32000-44060i200902-201112
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-06040i200808-200903
(L)
main32101-06040i200902
main32101-28040i200605-200808
main32101-28040i200808-200903
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-09001i200605-200903
*9-1.25PX12.4-7.3,BLACK
main90119-09025i200605-200903
*9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-12184i200902-201005
*12-1.25PX22-16,(J)
sub90105-12384
main90105-12184i200605-200903
*12-1.25PX22-16
sub90105-12384
main90105-A0060i200902-201005
*12-1.25PX22-16,(L)
sub90105-12184
32116SPACER, DRIVE PLATE, FRONT
main32116-20050i200605-200903
32117SPACER, DRIVE PLATE, REAR
main32117-06010i201112
(L)
main32117-20060i201112
(J)
main32117-20060i200605-201112
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-08010i200811-200902
(L)
main35035-12070i201310
main35035-21020i200605-201010
TOYOTA:REFER TO ILL.
sub35035-28010
main35035-28010i200605-201310
AISIN AW:REF.ILLUST
sub35035-12070
main35035-33020i200605-200902
(J)
sub35035-12080
main35035-33020i200902-201112
sub35035-12080
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38083i200605-201112
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99099i200605-201308
main90301-99203i201308
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08050i200605-200903
*8-1.25PX28-28
main90105-08198i200605-200902
*8-1.25PX28-28
35307FBOLT (FOR STATOR SHAFT)
main90080-14044i200811-200902
(L)
main90148-60027i200605-201310
main90148-60027i200605-200902
(J)
35321GEAR, FRONT OIL PUMP DRIVE
main35321-08010i200811-200902
T=11.715,MARK A,(L)
main35321-08020i200811-200902
T=11.715,MARK B,(L)
main35321-08030i200811-200902
T=11.715,MARK C,(L)
main35321-08040i200811-200902
T=11.715,MARK D,(L)
main35321-08050i200811-200902
T=11.715,MARK E,(L)
main35321-21060i200605-201010
T=10.690-10.699,TOYOTA:REFER TO ILL.
sub35321-28060
main35321-21070i200605-201010
T=10.700-10.709,TOYOTA:REFER TO ILL.
sub35321-28070
main35321-21080i200605-201010
T=10.710-10.720,TOYOTA:REFER TO ILL.
sub35321-28080
main35321-21090i200605-201010
T=10.721-10.730,TOYOTA:REFER TO ILL.
sub35321-28090
main35321-21100i200605-201010
T=10.731-10.740,TOYOTA:REFER TO ILL.
sub35321-28100
main35321-28060i200605-201310
T=10.715,MARK 1,AISIN AW:REF.ILLUST
main35321-28060i201310
T=10.715,MARK 1
main35321-28070i201310
T=10.715,MARK 2
main35321-28070i200605-201310
T=10.715,MARK 2,AISIN AW:REF.ILLUST
main35321-28080i200605-201310
T=10.715,MARK 3,AISIN AW:REF.ILLUST
main35321-28080i201310
T=10.715,MARK 3
main35321-28090i200605-201310
T=10.715,MARK 4,AISIN AW:REF.ILLUST
main35321-28090i201310
T=10.715,MARK 4
main35321-28100i200605-201310
T=10.715,MARK 5,AISIN AW:REF.ILLUST
main35321-28100i201310
T=10.715,MARK 5
main35321-33060i200605-200902
T=11.715,MARK A,(J)
main35321-33060i200902-201112
T=11.715,MARK A
main35321-33070i200902-201112
T=11.715,MARK B
main35321-33070i200605-200902
T=11.715,MARK B,(J)
main35321-33080i200902-201112
T=11.715,MARK C
main35321-33080i200605-200902
T=11.715,MARK C,(J)
main35321-33090i200605-200902
T=11.715,MARK D,(J)
main35321-33090i200902-201112
T=11.715,MARK D
main35321-33100i200605-200902
T=11.715,MARK E,(J)
main35321-33100i200902-201112
T=11.715,MARK E
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-08010i200811-200902
T=11.715,MARK A,(L)
main35322-08020i200811-200902
T=11.715,MARK B,(L)
main35322-08030i200811-200902
T=11.715,MARK C,(L)
main35322-08040i200811-200902
T=11.715,MARK D,(L)
main35322-08050i200811-200902
T=11.715,MARK E,(L)
main35322-21060i200605-201010
T=10.690-10.699,TOYOTA:REFER TO ILL.
sub35322-28060
main35322-21070i200605-201010
T=10.700-10.709,TOYOTA:REFER TO ILL.
sub35322-28070
main35322-21080i200605-201010
T=10.710-10.720,TOYOTA:REFER TO ILL.
sub35322-28080
main35322-21090i200605-201010
T=10.721-10.730,TOYOTA:REFER TO ILL.
sub35322-28090
main35322-21100i200605-201010
T=10.731-10.740,TOYOTA:REFER TO ILL.
sub35322-28100
main35322-28060i201310
T=10.715,MARK 1
main35322-28060i200605-201310
T=10.715,MARK 1,AISIN AW:REF.ILLUST
main35322-28070i200605-201310
T=10.715,MARK 2,AISIN AW:REF.ILLUST
main35322-28070i201310
T=10.715,MARK 2
main35322-28080i200605-201310
T=10.715,MARK 3,AISIN AW:REF.ILLUST
main35322-28080i201310
T=10.715,MARK 3
main35322-28090i201310
T=10.715,MARK 4
main35322-28090i200605-201310
T=10.715,MARK 4,AISIN AW:REF.ILLUST
main35322-28100i201310
T=10.715,MARK 5
main35322-28100i200605-201310
T=10.715,MARK 5,AISIN AW:REF.ILLUST
main35322-33060i200902-201112
T=11.715,MARK A
main35322-33060i200605-200902
T=11.715,MARK A,(J)
main35322-33070i200902-201112
T=11.715,MARK B
main35322-33070i200605-200902
T=11.715,MARK B,(J)
main35322-33080i200605-200902
T=11.715,MARK C,(J)
main35322-33080i200902-201112
T=11.715,MARK C
main35322-33090i200605-200902
T=11.715,MARK D,(J)
main35322-33090i200902-201112
T=11.715,MARK D
main35322-33100i200902-201112
T=11.715,MARK E
main35322-33100i200605-200902
T=11.715,MARK E,(J)
35370SHAFT ASSY, STATOR
main35370-06010i200811-200902
(L)
main35370-12110i201310
main35370-21020i200605-201005
TOYOTA:REFER TO ILL.
sub35370-28010
main35370-28010i200605-201005
AISIN AW:REF.ILLUST
sub35370-12110
main35370-28010i200605-200902
(J)
sub35370-12110
main35370-28010i200902-201310
sub35370-12110
35617RING, CLUTCH DRUM OIL SEAL
main35613-21010i200605-200903

15 parts on this diagram · 3 diagrams in section
